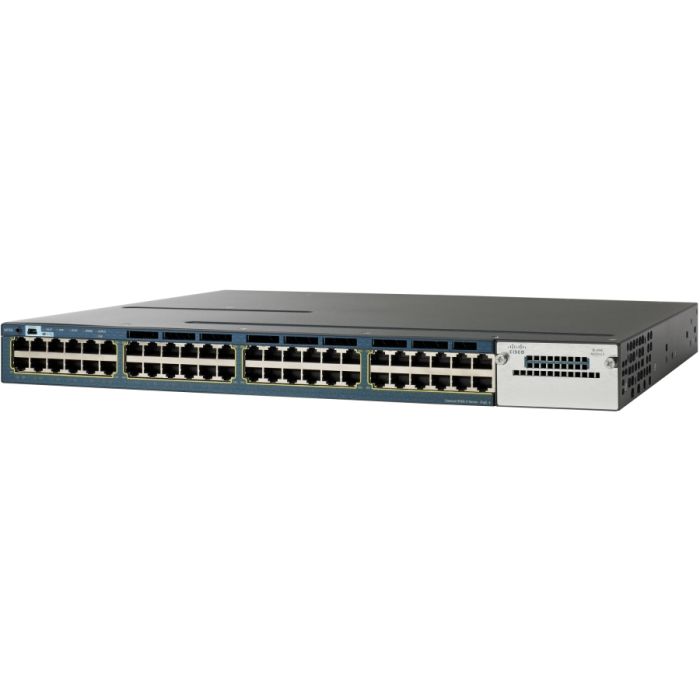

Cisco WS-C3560X-48PF-E Catalyst 3560X-48PF-E Managed L3 Switch
Part Number:
WS-C3560X-48PF-E
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 48 Ports - Managed
Enclosure Type : Rack-mountable - 1u
Ports : 48 X 10/100/1000
Power Over Ethernet (poe) : Poe+
Performance : Switching Fabric Bandwidth : 160 Gbps
Capacity : Virtual Interfaces (vlans) : 1005
Jumbo Frame Support : 9216
Routing Protocol : Rip-1, Rip-2, Hsrp, Static Ip Routing, Ripng
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Tftp, Ssh, Cli
Authentication Method : Kerberos, Secure Shell (ssh), Radius, Tacacs+
Features : Hot Swap Module Replacement, Dynamic Ip Address Assignment , Dhcp Support, Power Over Ethernet (poe), Auto-negotiation, Arp Support, Trunking, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, Traffic Shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (rstp) Support, Dhcp Snooping, Dynamic Trunking Protocol (dtp) Support, Port Aggregation Protocol (pagp) Support, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Mld Snooping, Dynamic Arp Inspection (dai), Poe+, Per-vlan Spanning Tree Plus (pvst+), Eigrp Stub Routing, Uni-directional Link Detection (udld), Shaped Round Robin (srr), Link Aggregation Control Protocol (lacp), Remote Switch Port Analyzer (rspan)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ae, Ieee 802.3at
Ram : 256 Mb
Flash Memory : 128 Mb
Status Indicators : Port Status, Link Activity, Port Transmission Speed, Port Duplex Mode, Power, System
expansion / Connectivity :
Interfaces : 48 X 10base-t/100base-tx/1000base-t - Rj-45 - Poe Usb : 1 X 4 Pin Usb Type A 1 X Console - Mini-usb Type B - Management 1 X Rs-232 - Rj-45 - Management 1 X 10base-t/100base-tx - Rj-45 - Management
Expansion Slot(s) : 1 (total) / 1 (free) X Expansion Slot
power :
Power Device : Power Supply - Redundant - Plug-in Module
Installed Qty : 1 (installed) / 2 (max)
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Voltage Required : Ac 120/230 V (50/60 Hz)
Features : Redundant Power System (rps) Connector
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
CISCO WS-C3560X-48PF-E Catalyst 3560x-48pf-e Managed L3 Switch - 48 Poe+ Ethernet Ports.
Specifications :
expansion / Connectivity :
power :
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 48 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | CISCO |
