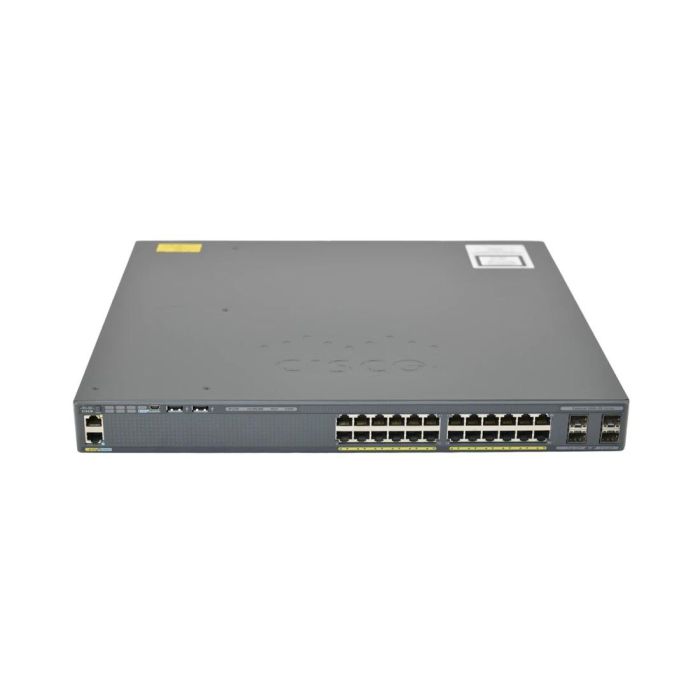

Cisco Catalyst WS-C2960XR-24PS-I Managed L3 Switch 24 PoE+ Ports
Part Number:
WS-C2960XR-24PS-I
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 24 Ports - L3 - Managed - Stackable
Enclosure Type : Desktop, Rack-mountable - 1u
Ports : 24 X 10/100/1000 (poe+) + 4 X Gigabit Sfp
Power Over Ethernet (poe) : Poe+
Poe Budget : 370 W
Performance : Switching Capacity : 216 Gbps Forwarding Performance (64-byte Packet Size) : 71.4 Mpps
Capacity : Virtual Interfaces (vlans) : 1023
Jumbo Frame Support : 9216
Max Units In A Stack : 8
Routing Protocol : Ospf, Rip-1, Rip-2, Hsrp, Vrrp, Pim-sm, Pim-dm, Ospfv3, Pim-ssm, Policy-based Routing (pbr), Ripng
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Telnet, Snmp 3, Snmp 2c, Http, Tftp, Ssh, Cli
Authentication Method : Kerberos, Secure Shell (ssh), Radius, Tacacs+
Features : Layer 3 Switching, Layer 2 Switching, Dhcp Support, Power Over Ethernet (poe), Auto-negotiation, Arp Support, Trunking, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Ipv6 Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Dynamic Trunking Protocol (dtp) Support, Port Aggregation Protocol (pagp) Support, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Radius Support, Jumbo Frames Support, Mld Snooping, Dynamic Arp Inspection (dai), Poe+, CISCO Energywise Technology, Unicast Reverse Path Forwarding (urpf), Uni-directional Link Detection (udld), Rapid Per-vlan Spanning Tree Plus (pvrst+), Ipv4 Support, Shaped Round Robin (srr), Link Aggregation Control Protocol (lacp), Remote Switch Port Analyzer (rspan), Netflow, Hot Standby Router Protocol (hsrp) Support, Energy Efficient Ethernet
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ae, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax
Processor : 600 Mhz
Ram : 512 Mb
Flash Memory : 64 Mb
Status Indicators : Link Activity, Port Transmission Speed, Port Duplex Mode, System, Status, Poe
Expansion / Connectivity :
Interfaces : 24 X 10base-t/100base-tx/1000base-t - Rj-45 - Poe+ 1 X Console - Rj-45 - Management 1 X Console - Mini-usb Type B - Management 1 X Usb - Type A 1 X 10base-t/100base-tx - Rj-45 - Management 4 X Sfp (mini-gbic)
Power :
Power Device : Internal Power Supply
Installed Qty : 1 (installed) / 2 (max)
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Consumption Operational : 640 Watt
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
CISCO - Catalyst 2960xr-24ps-i Managed L3 Switch - 24 Poe+ Ethernet Ports & 4 Gigabit Sfp Ports (WS-C2960XR-24PS-I).
Key Features :
Expansion / Connectivity :
Power :
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
| Capacity | 24 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | CISCO |
