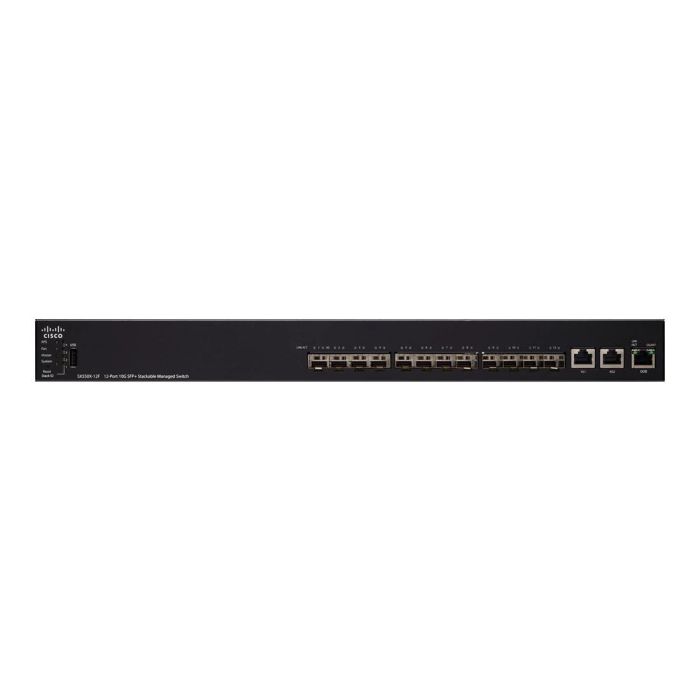

Cisco SX550X-12F-K9 12-Port 10g SFP+ Stackable Managed Switch
Part Number:
SX550X-12F-K9
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 12 Ports - L3 - Managed - Stackable
Enclosure Type : Desktop, Rack-mountable 1u
Subtype : 10 Gigabit Ethernet
Ports : 12 X 10 Gigabit Sfp+ + 2 X Combo 10 Gigabit Sfp+
Performance : Forwarding Performance (64-byte Packet Size): 178.56 Mpps Switching Capacity: 240 Gbps
Capacity : Vlans Supported: 4094 Ipv4 Routes (static): 7168 Ipv6 Routes (static): 1792 Acl Rules: 2000 Qos Hardware Queues: 8
Mac Address Table Size : 32000 Entries
Jumbo Frame Support : 9000 Bytes
Max Units In A Stack : 8
Routing Protocol : Rip-2, Igmpv2, Igmp, Igmpv3, Policy-based Routing (pbr), Mldv2, Mld, Vrrpv2, Vrrpv3, Cidr
Remote Management Protocol : Snmp 1, Snmp, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Https, Tftp, Ssh, Ssh-2, Cli, Scp
Encryption Algorithm : Ssl
Authentication Method : Radius, Tacacs, Tacacs+
Features : Flow Control, Dhcp Support, Igmp Snooping, Syslog Support, Dos Attack Prevention, Port Mirroring, Diffserv Support, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Ipv6 Support, High Availability, Multicast Storm Control, Unicast Storm Control, Firmware Upgradable, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Dhcp Snooping, Access Control List (acl) Support, Quality Of Service (qos), Dhcp Server, Dynamic Arp Inspection (dai), Reset Button, Stp Root Guard, Uni-directional Link Detection (udld), Dhcp Relay, Remote Switch Port Analyzer (rspan), Dhcp Client, Management Information Base (mib), Dual Firmware Images, Class Of Service (cos), Generic Attribute Registration Protocol (garp), Generic Vlan Registration Protocol (gvrp), Duplicated Address Detection, Diffserv Code Point (dscp) Support, Time-controlled Acls Support, Storm Control, Ip Source Guard, Arp Inspection, Internet Control Message Protocol (icmp), CISCO Discovery Protocol, Igmp Querier, Vlan Double Tagging (q-in-q), Vlan Mirroring, Dns Client, Voice Vlan, Secure Core Technology (sct), Lldp-med, Head-of-line (hol) Blocking, Ip/mac/port Binding (ipmb), Secure Sensitive Data (ssd), Private Vlan, Isatap Tunnel Support, Ra Guard, Guest Vlan, Stp Bpdu Guard
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3an, Ieee 802.3az
Processor : X Arm: 1.3 Ghz
Ram : 512 Mb
Flash Memory : 256 Mb
Status Indicators : Port Transmission Speed, System, Rps (redundant Power Supply), Link/activity, Fan
Expansion / Connectivity :
Interfaces
10 X 10gbase-t Sfp+
2 X 10gbase-t Rj-45
2 X 10gbase-x Sfp+
1 X Console Rj-45
1 X Usb Type A
1 X Management (gigabit Lan)
Power :
Power Device : Internal Power Supply
Voltage Required : Ac 120/230 V (50/60 Hz)
Features : Redundant Power System (rps) Connector
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
CISCO SX550X-12F-K9 550x Series Sx550x-12f - Switch - 12 Ports - Managed - Rack-mountable :
Key Features :
Expansion / Connectivity :
Interfaces
Power :
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
| Capacity | 12 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | CISCO |
