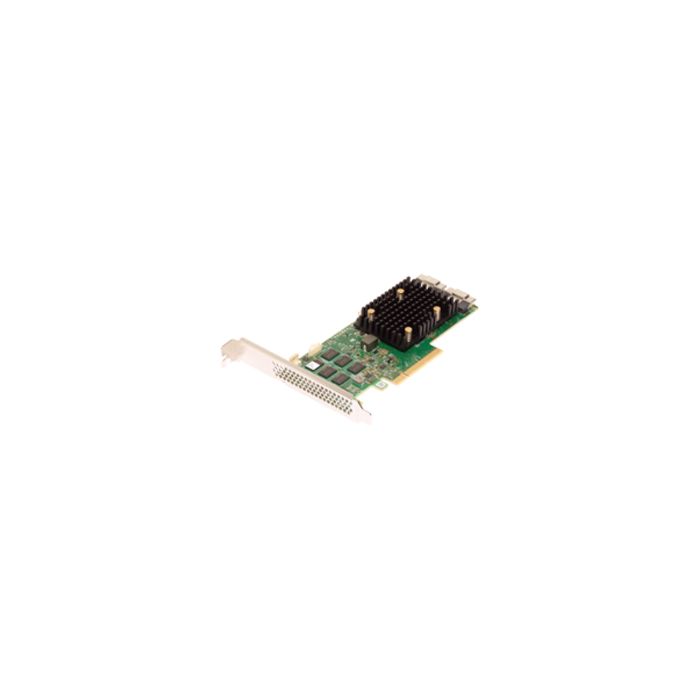

Lenovo SR17A32498 Broadcom 9560-16I MegaRAID 12Gb/s SAS/SATA PCIe Gen 4.0(NVMe) Tri-Mode RAID Controller
Part Number:
SR17A32498
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Raid Levels 0, 1, 5, And 6
Raid Spans 10, 50, And 60
Jbod Mode With R0/1/10 And Jbod For Sds Environments
Online Capacity Expansion (oce)
Auto Resume After Loss Of System Power During Array Rebuild Or Oce
Single Controller Multipathing
Load Balancing
Configurable Stripe Size Up To 1 Mb
Fast Initialization For Quick Array Setup
Check Consistency For Background Data Integrity
Ssd Support With Ssd Guard™ Technology
Patrol Read For Media Scanning And Repairing
64 Virtual Drive Support
Management Utilities:
Lsi Storage Authority (lsa)
Storcli (command-line Interface)
Hii (uefi Human Interface Infrastructure)
Os Support: Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd. See Www.broadcom.com/support/download-search For Details On Versions.
Dimensions: 6.127 In. × 2.712 In. (155.65 Mm × 68.90 Mm)
Typical Power: 13.21w
Operating Voltage: 12v ±8%, 3.3v ±9%
Condition: Brand New
Availability: In Stock.
Our Warranty: 90 Days.
LENOVO SR17A32498 Broadcom 9560-16i Megaraid 12gb/s Sas/sata Pcie Gen 4.0(nvme) Tri-mode Raid Controller
Technical Information:
Port Count: 16 Internal
Connectors: Two X8 Sff-8654
Host Interface: X8 Pcie Gen 4.0
Storage Interface: 12gb/s Sas, 6gb/s Sata, Gen 4.0 Pcie (nvme)
Raid On Chip Controller (roc): Sas3916
Max Devices Per Controller: Sas/sata: 240 Nvme: 24
Cache Size: 8 Gb
Cache Protection: Cachevault, Cvpm05
Raid Features:
Management Utilities:
Os Support: Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd. See Www.broadcom.com/support/download-search For Details On Versions.
Dimensions: 6.127 In. × 2.712 In. (155.65 Mm × 68.90 Mm)
Typical Power: 13.21w
Operating Voltage: 12v ±8%, 3.3v ±9%
Condition: Brand New
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | RAID CONTROLLER |
|---|---|
| Condition | Brand New |
| Manufacturer | LENOVO |
