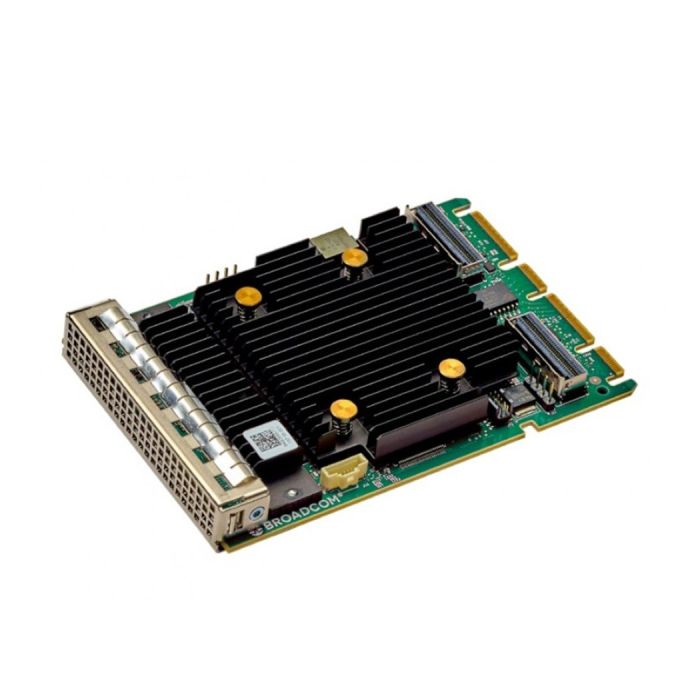

Broadcom SAS9562-16I 9562-16i 16-Port Internal 12Gbs TriMode SATA+SAS+PCIe Raid Controller
Part Number:
SAS9562-16I
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Connects Up To 1024 Sas/sata Devices Or 32 Nvme Devices
Provides Maximum Connectivity And Performance For High-end Servers And Applications
Support Critical Applications With The Bandwidth Of Pcie 4.0 Connectivity
Universal Bay Management (ubm) Ready
Sff-9402 Compliant Connector Pinout
Specifications
Ports: 16 Internal
I/o Processor: Sas3916
Form Factor: Ocp Nic 3.0 Sff
Storage Interface Connectors: Two Sff-8654 X8 (vertical)
Host Interface: X8 Pcie 4.0
Storage Interface: Sas, Sata, And Pcie (nvme)
Cache Memory: 8 Gb, 2666 Mt/s, Ddr4 Sdram
Cache Protection: Yes
Super Capacitor: Cvpm05 Module
Mtbf: >3,000,000 Hours At 40°c
Ocp Thermal Tier: Tier 5
Operating Temperature: 0°c To 55°c
Os: Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd
Physical Dimensions: 115.00 (+/-0.13) Mm X 76.00 (+/-0.13) Mm
Raid Levels: 0, 1, 10, 5, 50, 6, 60
Typical Power: 13w
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
Overview The 16-port Ocp 3.0 Sff Tri-mode 9562-16i Nvme/sas/sata Raid Adapter Enables More Flexibility When Integrating Storage Into The Server
the Ocp Raid Adapter Enables The Operation Of Nvme, Sas Or Sata Devices In A Single Drive Bay. By Using An Ocp Slot For Storage, Users Can Free Up A Standard Pcie Adapter Slot For Other Uses.
Specifications
Ports: 16 Internal
I/o Processor: Sas3916
Form Factor: Ocp Nic 3.0 Sff
Storage Interface Connectors: Two Sff-8654 X8 (vertical)
Host Interface: X8 Pcie 4.0
Storage Interface: Sas, Sata, And Pcie (nvme)
Cache Memory: 8 Gb, 2666 Mt/s, Ddr4 Sdram
Cache Protection: Yes
Super Capacitor: Cvpm05 Module
Mtbf: >3,000,000 Hours At 40°c
Ocp Thermal Tier: Tier 5
Operating Temperature: 0°c To 55°c
Os: Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd
Physical Dimensions: 115.00 (+/-0.13) Mm X 76.00 (+/-0.13) Mm
Raid Levels: 0, 1, 10, 5, 50, 6, 60
Typical Power: 13w
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | RAID CONTROLLER |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | BROADCOM |
