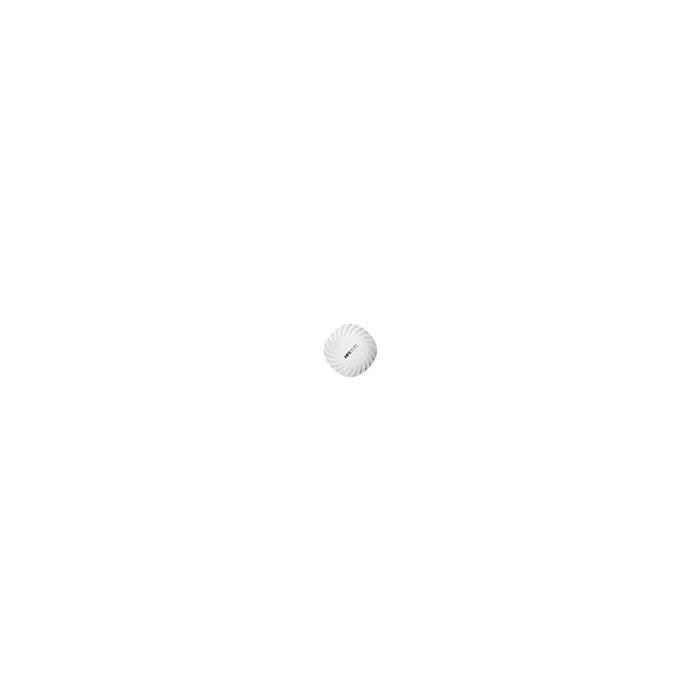

HPE S1G42-61001 Aruba Networking AP-735 (RW) Tri Radio 2x2 Wi-Fi 7 Internal Antennas Campus Access Point
Part Number:
S1G42-61001
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Wi-fi 7 (802.11be) Brings Multi-link Operation (mlo) For Channel Aggregation And 4k Qam For Higher Throughput And Lower Latency
Unlocks The 6 Ghz Band To More Than Double The Available Capacity
Comprehensive Tri-band Coverage Across 2.4 Ghz, 5 Ghz, And 6 Ghz To Deliver 9.3 Gbps Maximum Tri-band Aggregate Data Rate
Capable Of Up To 14.4 Gbps Maximum Aggregate Data Rate Using Optional Dual 5 Ghz And 6 Ghz Radio Modes
Up To Three 320 Mhz Channels In 6 Ghz Support Low-latency, Bandwidth-hungry Applications Like High-definition Video And Augmented Reality/virtual Reality Applications
Patented Ultra Tri-band (utb)filtering Enables 5 Ghz And 6 Ghz To Operate Without Restrictions Or Interference
High Availability With Dual 5 Gbps Ports For Redundant Ethernet And Power.
The Built In Gnss Receiver, Barometric Pressure Sensor, And Intelligent Software Enable Aps To Self-locate And Act As Reference Points For Accurate Indoor Location Measurements
Macsec Support1 Extends Wired Ethernet Protection To The Ap
Specifications
Wi-fi Antennas Ap-735: Integrated Downtilt Omni-directional Antennas For 2x2 Mimo With Peak Antenna Gain Of 5.1dbi In 2.4 Ghz, 5.5dbi In 5 Ghz (5.2dbi In Dual-5 Ghz Mode) And 5.3dbi In 6 Ghz (5.2dbi In Dual-6 Ghz Mode). Built-in Antennas Are Optimized For Horizontal Ceiling Mounted Orientation Of The Ap. The Downtilt Angle For Maximum Gain Is Roughly 30 To 40 Degrees.
Other Interfaces And Features
E0, E1: Two Ethernet Wired Network Ports (rj-45)
- Auto-sensing Link Speed (100/1000/2500base-t) And Mdi/mdx - 2.5 Gbps Speed Complies With Nbase-t And 802.3bz Specifications
- Poe-pd: 48vdc (nominal) 802.3at/bt Poe (class 4 Or Higher) - 802.3az Energy Efficient Ethernet (eee)
- 802.3az Energy Efficient Ethernet (eee)
- Link Aggregation (lacp) Support Between Both Network Ports For Redundancy And Increased Capacity
- Macsec Support On E0 (802.1ae)
Dc Power Interface: 12vdc (nominal, +/- 5%), Accepts 2.1mm/5.5mm Center-positive Circular Plug With 9.5mm Length
U0, U1: Two Usb 2.0 Host Interface (type A Connector)
- Capable Of Sourcing Up To 2a/10w To One Or Two Attached Devices
Flexible Dual Iot Radio Options: Ble 5.4 (w/hadm), Plus Either Ble 5.4 Or 802.15.4/zigbee:
- Ble: Bt5.4 With Up To 10dbm Transmit Power (class 1) And -105dbm Receive Sensitivity (125 Kbps)
- Ieee 802.15.4/zigbee: Up To 10dbm Transmit Power And -100dbm Receive Sensitivity (250 Kbps)
- Integrated Omnidirectional Antenna With Roughly 30 To 40 Degrees Downtilt And Peak Gain Of 5.1dbi (ap-735)
Gnss L1 (1575.42 Mhz) And L5 (1176.45 Mhz) Receiver Supporting Gps, Galileo, Glonass, And Beidou Signal
- Receive Sensitivity: -160dbm (tracking)
- Integrated Omnidirectional Antenna With Roughly 30 To 40 Degrees Downtilt And Peak Gain Of 4.4dbi (ap-735)
Integrated Barometric Pressure Sensor To Determine (relative) Deployment Altitude Of The Ap
Advanced Iot Coexistence (aic) Allows Concurrent Operation Of Multiple Radios In The 2.4 Ghz Band
Built-in Trusted Platform Module (tpm) For Enhanced Security And Anti-counterfeiting
Visual Indicators (four Multi-color Leds): For System (1x) And Radio (3x) Status
Reset Button: Factory Reset, Led Mode Control (normal/off)
Serial Console Interface (proprietary, Micro-b Usb Physical Jack)
Kensington Security Slot
Automatic Thermal Shutdown And Recovery Function
Power Sources And Power Consumption
The Ap Supports Direct Dc Power And Power Over Ethernet (poe) On Port E0 And/or E1
When Both Dc And Poe Power Sources Are Available, Dc Power Takes Priority Over Poe
When Poe Power Is Supplied To Both Ethernet Ports, Either Port Can Be Configured As The Active Power Source
Inactive/standby Poe Power Sources Can Be Used To Deliver Hitless Failover
Power Sources Are Sold Separately, See The HPE Aruba Networking 730 Series Ordering Guide For Details
When Powered By Dc Or 802.3bt (class 5) Poe, The Ap Will Operate Without Restrictions.
When Powered By 802.3at (class 4) Poe With The Ipm Feature Disabled, The Ap Will Disable The Usb Ports.
Operating The Ap With An 802.3af (class 3 Or Lower) Poe Source Is Not Supported (except For Ap Staging).
With Ipm Enabled, The Ap Will Start Up In Unrestricted Mode But May Dynamically Apply Restrictions Depending On The Available Power Budget And Actual Consumption. The Feature Restrictions And Order In Which These Get Applied Are Configurable.
Maximum (worst Case) Power Consumption (without/with Usb Devices Attached):
- Dc Powered: 20w/31w.
- Poe Powered: 24w/36w.
This Assumes That Up To 10w Is Supplied To The Attached Usb Device(s).
Maximum (worst-case) Power Consumption In Idle Mode: 8w/19w (dc) Or 12w/24w (poe).
Maximum (worst-case) Power Consumption In Deep-sleep Mode: 1.5w (dc) Or 2.0w (poe).
Mechanical Specifications
Dimensions/weight (HPE Aruba Networking Ap-735, Unit Without Mount Bracket):
- 240mm (w) X 240mm (d) X 56mm (h)
- 1440g
Condition: New Factory Sealed.
Availability: Call.
Our Warranty: 90 Days.
HPE S1G42-61001 Aruba Networking Ap-735 (rw) Tri Radio 2x2 Wi-fi 7 Internal Antennas Campus Access Point
Overview
Fast, Resilient, High Density, And Secure Wi-fi 7 Connectivity
For Enterprises Looking For To Deliver Secure, High-performance Wi-fi To Users And Iot Devices Today And In The Future, HPE Aruba Networking 730 Series Campus Aps Extend Beyond The Wi-fi 7 Standard To Maximize 6 Ghz Capacity By Up To 30%, Connect 2x The Iot Devices, Strengthen Security Across Wired And Wireless, And Enable Highly Accurate Location-aware Capabilities. Unique To HPE Aruba Networking, The 730 Series Aps Includes Ultra Tri-band (utb) Filtering And Dual 5 Gbps Ethernet Ports To Eliminate Coverage Gaps, Provide Greater Resiliency, And Deliver Fast, Secure Connectivity, Intelligent Automation, Ai Insights, And Unified Infrastructure Management, Provided By HPE Aruba Networking Wireless Operating System (aos-10) And HPE Aruba Networking Central, Help Drive Efficient It Operations.
Key Features
Specifications
Wi-fi Antennas Ap-735: Integrated Downtilt Omni-directional Antennas For 2x2 Mimo With Peak Antenna Gain Of 5.1dbi In 2.4 Ghz, 5.5dbi In 5 Ghz (5.2dbi In Dual-5 Ghz Mode) And 5.3dbi In 6 Ghz (5.2dbi In Dual-6 Ghz Mode). Built-in Antennas Are Optimized For Horizontal Ceiling Mounted Orientation Of The Ap. The Downtilt Angle For Maximum Gain Is Roughly 30 To 40 Degrees.
Other Interfaces And Features
- Auto-sensing Link Speed (100/1000/2500base-t) And Mdi/mdx - 2.5 Gbps Speed Complies With Nbase-t And 802.3bz Specifications
- Poe-pd: 48vdc (nominal) 802.3at/bt Poe (class 4 Or Higher) - 802.3az Energy Efficient Ethernet (eee)
- 802.3az Energy Efficient Ethernet (eee)
- Link Aggregation (lacp) Support Between Both Network Ports For Redundancy And Increased Capacity
- Macsec Support On E0 (802.1ae)
- Capable Of Sourcing Up To 2a/10w To One Or Two Attached Devices
- Ble: Bt5.4 With Up To 10dbm Transmit Power (class 1) And -105dbm Receive Sensitivity (125 Kbps)
- Ieee 802.15.4/zigbee: Up To 10dbm Transmit Power And -100dbm Receive Sensitivity (250 Kbps)
- Integrated Omnidirectional Antenna With Roughly 30 To 40 Degrees Downtilt And Peak Gain Of 5.1dbi (ap-735)
- Receive Sensitivity: -160dbm (tracking)
- Integrated Omnidirectional Antenna With Roughly 30 To 40 Degrees Downtilt And Peak Gain Of 4.4dbi (ap-735)
Power Sources And Power Consumption
- Dc Powered: 20w/31w.
- Poe Powered: 24w/36w.
Mechanical Specifications
Dimensions/weight (HPE Aruba Networking Ap-735, Unit Without Mount Bracket):
- 240mm (w) X 240mm (d) X 56mm (h)
- 1440g
Condition: New Factory Sealed.
Availability: Call.
Our Warranty: 90 Days.
| Capacity | WIRELESS 2.4GBPS |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | HPE |
