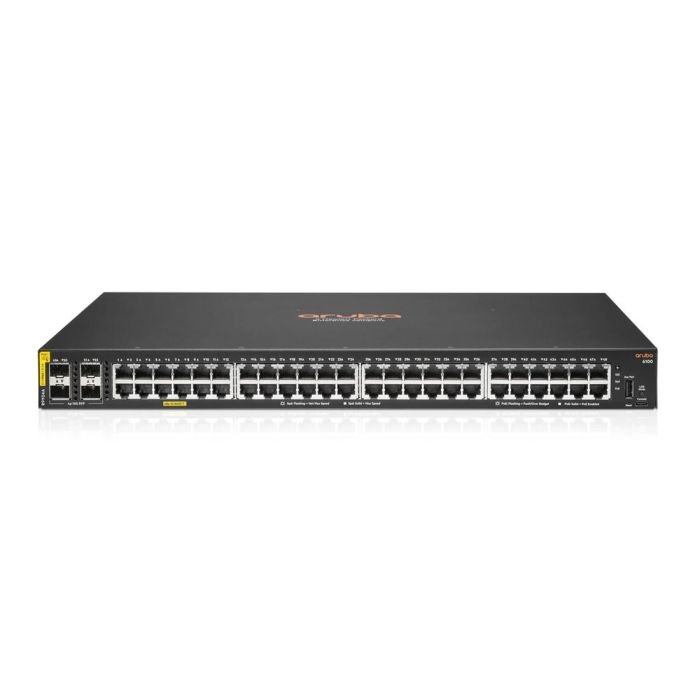

HPE R9Y04-61001 Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch
Part Number:
R9Y04-61001
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type: Switch - 48 Ports - L3 - Managed
Enclosure Type: Side To Side Airflow Rack-mountable 1u
Subtype: Gigabit Ethernet
Ports: 48 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit Sfp+ (uplink)
Power Over Ethernet (poe): Poe+
Poe Budget: 740 W
Performance: Switching Capacity: 176 Gbps Throughput: 98.6 Mpps Latency (1 Gbps): 1.9 Latency (10 Gbps): 1.8
Capacity: Switched Virtual Interfaces (svis) (dual Stack): 16 Ipv4 Acl Entries (ingress): 256 Ipv6 Acl Entries (ingress): 128 Mac Acl Entries (ingress): 256 Igmp Groups: 512 Mld Groups: 512 Ipv4 Host Table Capacity: 1024 Ipv6 Host Table Capacity: 512 Ipv4 Routes (unicast): 512 Ipv6 Routes (unicast): 512 Packet Buffer Size: 12.38 Mb
Mac Address Table Size: 8192 Entries
Jumbo Frame Support: 9220 Bytes
Routing Protocol: Igmpv2, Igmp, Igmpv3, Mldv2, Mld
Remote Management Protocol: Snmp 2, Snmp, Rmon, Snmp 3, Cli, Mib
Encryption Algorithm: Ssl
Authentication Method: Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features: Layer 2 Switching, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Uni-directional Link Detection (udld), Class Of Service (cos), Type Of Service (tos), Poe Class 4, Rapid Pvst+ (rpvst+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (utm), Address Resolution Protocol
Compliant Standards: Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3at, Ieee 802.3az
Processor: 1 X Arm Cortextm A9: 1.016 Ghz
Ram: 4 Gb Ddr3 Sdram
Flash Memory: 16 Gb
Expansion / Connectivity:
Interfaces:
48 X 10/100/1000 Base-t (poe+) Rj-45 Poe Class 4
4 X Gigabit / 10gbit Lan Sfp+ Uplink
1 X Usb-c Console
1 X Usb Type A Host
Power:
Power Device: Internal Power Supply
Power Provided: 950 Watt
Voltage Required: Ac 100-127/200-240 V (50/60 Hz)
Power Consumption Operational: 49.7 Watt
Power Consumption Stand By: 37.5 Watt
Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
HPE R9Y04-61001 Aruba Networking Cx 6100 48g Class4 Poe 4sfp+ 740w Switch - Switch - 48 Ports - Managed - Rack-mountable.
Key Feature:
Expansion / Connectivity:
Interfaces:
Power:
Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
| Capacity | 48 PORT |
|---|---|
| Condition | New |
| Manufacturer | HPE |
