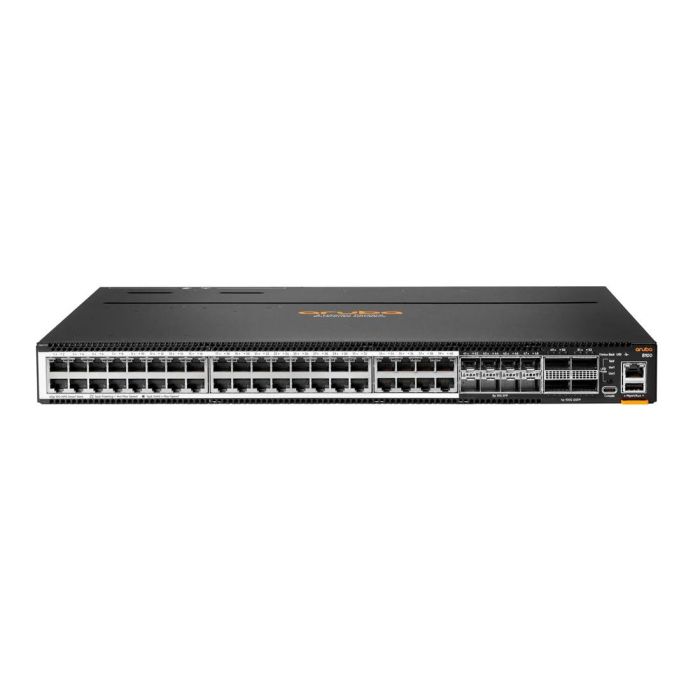

HPE R9W92-61001 Aruba CX8100 40x40G Base-T 8x10G SFP+ 4X40/100g QSFP28 FB 3F 2AC PSU Switch Bdl
Part Number:
R9W92-61001
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 40 Ports - L3 - Managed
Enclosure Type : Front To Back Airflow Rack-mountable 1u
Subtype : 10 Gigabit Ethernet
Ports : 40 X 100/1000/2.5g/5g/10gbase-t + 8 X Gigabit Sfp / 10 Gigabit Sfp+ + 4 X 40 Gigabit Qsfp+ / 100 Gigabit Qsfp28
Performance : Switching Capacity: 1.76 Tbps
Capacity : Ipv4 Acl Entries (ingress): 16384 ¦ Ipv6 Acl Entries (ingress): 4096 ¦ Mac Acl Entries (ingress): 16384 ¦ Ipv4 Acl Entries (egress): 2048 ¦ Ipv6 Acl Entries (egress): 512 ¦ Mac Acl Entries (egress): 2048 ¦ Maximum Number Of Vlans: 1024 ¦ Igmp Groups: 4000 ¦ Mld Groups: 4000 ¦ Packet Buffer Size: 32 Mb ¦ Ipv4 Routes (multicast): 4096 ¦ Ipv6 Routes (multicast): 4096 ¦ Link Aggregation Groups: 54 ¦ Ipv4 Routes (unicast): 24576 ¦ Ipv6 Routes (unicast): 12288
Mac Address Table Size : 147456 Entries
Jumbo Frame Support : 9000 Bytes
Routing Protocol : Mld, Mldv2, Igmp, Igmpv2, Igmpv3, Bgp-4, Rip-2
Remote Management Protocol : Snmp, Snmp 2, Snmp 3, Mib
Authentication Method : Secure Shell (ssh), Tacacs+, Radius, Secure Shell V.2 (ssh2)
Features : Dcb, Qos, Layer 2 Switching, Roce, Roce V2, Aruba Vsx, Bfd, Erps, Udld, Sflow, Ntp, Bpdu, Port Mirroring, Rpvst+, Dynamic Vxlan With Bgp-evpn, Address Resolution Protocol, Layer 3 Routing, Ospf, Bgp-4, Policy Based Routing, Ecmp, Gre
Compliant Standards : Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.1ax, Ieee 802.1p, Ieee 802.1q, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1w, Ieee 802.3ab, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.3an, Ieee 802.3by, Ieee 802.3ba, Ieee 802.3x, Ieee 802.3z
Processor : 1 X Arm Cortex-a72: 1.8 Ghz
Ram : 16 Gb
Flash Memory : 32 Gb
Expansion / Connectivity :
Interfaces :
40 X 100/1000/2.5g/5g/10gbase-t Rj-45
4 X Gigabit / 10gbit Lan Sfp+
4 X 40/100gbit Lan Qsfp28/qsfp+
1 X Usb-c Console
1 X Serial Rj-45
1 X Usb Type A Aux
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 100-127/200-240 V (50/60 Hz)
power Consumption Stand By : 120 Watt
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
HPE R9W92-61001 Aruba Networking Cx 8100 40x10gbase-t 8x10g Sfp+ 4x40/100g Qsfp28 Switch - Switch - L3 - Managed - 40 X 100/1000/2.5g/5g/10gbase-t + 8 X Gigabit Sfp / 10 Gigabit Sfp+ + 4 X 40 Gigabit Qsfp+ / 100 Gigabit Qsfp28 - Front To Back Airflow - Rack-mountable.
Key Features :
Expansion / Connectivity :
Interfaces :
Power :
power Consumption Stand By : 120 Watt
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
| Capacity | 48 PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | HPE |
