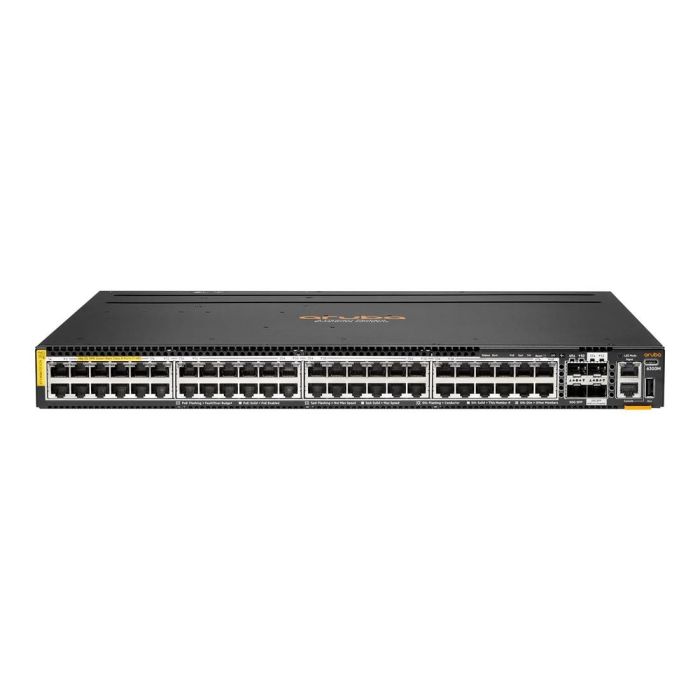

HPE R8S90A Aruba CX 6300M 48p SR 1G/2.5G/5G Cl8 PoE 2p 50G 2p 25G Switch
Part Number:
R8S90A
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 48 Ports - L3 - Managed - Stackable
Enclosure Type : Front And Side To Back Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 48 X 100/1000/2.5g/5g (poe++) + 2 X 1 Gigabit / 10 Gigabit / 25 Gigabit Sfp + 2 X 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp (uplink / Stacking)
Power Over Ethernet (poe) : Poe++
Performance : Switching Capacity: 880 Gbps ¦ Throughput: 654 Mpps ¦ Latency (1 Gbps): 4.24 Μs ¦ Latency (10 Gbps): 1.5 Μs ¦ Latency (25 Gbps): 2.91 Μs ¦ Latency (50 Gbps): 3.49 Μs ¦ Stacking Bandwidth: 200 Gbps
Capacity : Switched Virtual Interfaces (svis): 1024 ¦ Ipv4 Host Table Capacity: 49152 ¦ Ipv6 Host Table Capacity: 49152 ¦ Ipv4 Routes (unicast): 61000 ¦ Ipv6 Routes (unicast): 61000 ¦ Ipv4 Routes (multicast): 8192 ¦ Ipv6 Routes (multicast): 8192 ¦ Igmp Groups: 8192 ¦ Mld Groups: 8192 ¦ Ipv4 Acl Entries (ingress): 20480 ¦ Ipv6 Acl Entries (ingress): 5120 ¦ Mac Acl Entries (ingress): 20480 ¦ Ipv4 Acl Entries (egress): 8192 ¦ Ipv6 Acl Entries (egress): 2048 ¦ Mac Acl Entries (egress): 8192
Mac Address Table Size : 32768 Entries
Jumbo Frame Support : 9198 Bytes
Routing Protocol : Ospf, Bgp-4, Bgp, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Gre, Ospfv3, Msdp, Ecmp, Policy-based Routing (pbr), Mld, Bidirectional Forwarding Detection (bfd), Mstp, Rstp, Stp
Remote Management Protocol : Snmp, Telnet, Snmp 3, Snmp 2c, Tftp, Ssh, Cli
Encryption Algorithm : Fips 140-2
Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features : Vlan Support, Auto-uplink (auto Mdi/mdi-x), Syslog Support, Ipv6 Support, High Availability, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Per-vlan Spanning Tree (pvst), Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Deficit Weighted Round Robin (dwrr), Lldp Support, Fan Tray, Management Information Base (mib), Dhcp Protection, Dual Firmware Images, Multiple Vlan Registration Protocol (mvrp), Packet Storm Protection, Class Of Service (cos), Broadcast Storm Protection, Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Virtual Extensible Lan (vxlan), Multicast Storm Protection, Network Timing Protocol (ntp), Ra Guard, Zero-touch Provisioning (ztp), Protocol Independent Multicast (pim), Vlan Tagging, Rapid Reconfiguration Of Spanning Tree (rstp), Ipv4 And Ipv6 Dual Stack, Ip Multicast, Bootstrap Router (bsr) Mechanism, Aruba Virtual Switching Framework (vsf), Dynamic Ipv6 Lockdown, Nd Snooping, Unicast Storm Protection, Microsoft Network Load Balancer (nlb)
Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3at, Ieee 802.1ax, Ieee 802.3bt
Processor : 1 X Arm: 1.8 Ghz
Ram : 8 Gb Ddr4 Sdram
Flash Memory : 32 Gb
Expansion / Connectivity :
Interfaces:
48 X 100/1000/2.5g/5g (poe++) Rj-45
2 X 1/10/25gbit Lan Sfp
2 X 10/25/50gbit Lan Sfp
1 X Usb-c Console
1 X Usb Type A Host
1 X Console Rj-45
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 1
Max Supported Qty : 2
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Voltage Required : (50/60 Hz)
Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
HPE R8S90A Aruba 6300m - Switch - L3 - Managed - 48 X 100/1000/2.5g/5g (poe++) + 2 X 1 Gigabit / 10 Gigabit / 25 Gigabit Sfp + 2 X 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp (uplink / Stacking) - Front And Side To Back - Rack-mountable - Poe++.
Key Features :
Expansion / Connectivity :
Interfaces:
Power :
Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
| Capacity | 48 PORT |
|---|---|
| Condition | New |
| Manufacturer | HPE |
