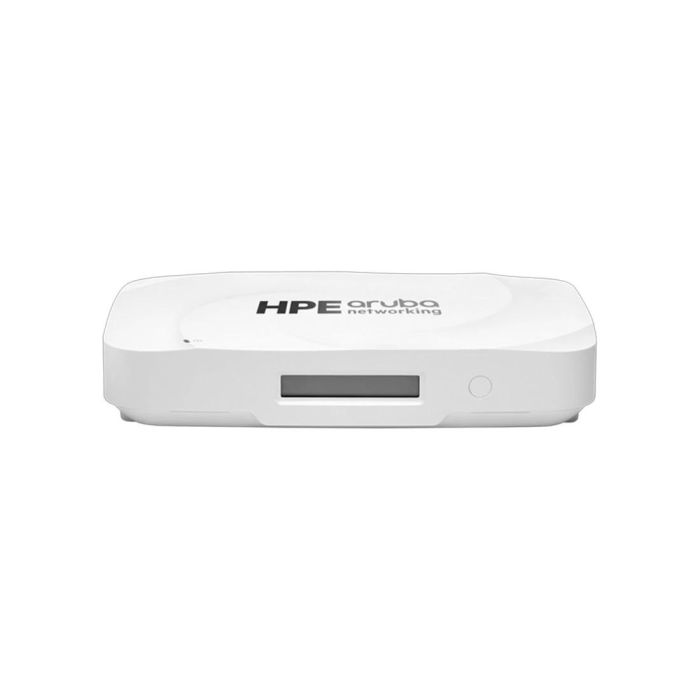

HPE R8N10-61001 Aruba Networking Dual Radio Tri Band 2x2 Wi-Fi 6E Remote Access Point
Part Number:
R8N10-61001
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview HPE Aruba Networking 600r Series Remote Access Points Are Powerful Desktop Wi-fi 6e Aps That Enable It Teams To Deliver Seamless And Secure
user Experiences To Remote Power Users And Small Branch Environments. Providing Up To 3.6 Gbps Combined Aggregate Data Rate (using 5 Ghz And
6 Ghz Bands), This Series Delivers More Wireless Capacity And Wider Channels By Taking Advantage Of Wi-fi 6e And The 6 Ghz Band To More Than Double Capacity To Support Increasing Wifi Demands, Especially For Latencysensitive, Highbandwidth Video Communications.
A High-speed Lte Cellular Module Provides Primary Or Backup Connectivity For Mission Critical Use Cases. The Desktop Ap Includes Multi-gigabit And Gigabit Ports, Poe Support, And Integrated Bluetooth Low Energy (ble) And Zigbee For A Range Of Connectivity Options. It Teams Can Easily Extend The Wan To Remote Employees As Part Of The HPE Aruba Networking Central Microbranch Functionality.
Features
Wi-fi 6e Performance For Remote Work And Small Branches
HPE Aruba Networking 600r Series Remote Access Points Offer 6 Ghz Coverage With Up To 1200 Mhz More Capacity. Two 2x2 Mimo Radios Deliver A
maximum Combined Data Rate Of Up To 3.6 Gbps When Configured For Concurrent 5 Ghz And 6 Ghz Operation.
Wi-fi 6e Extends Support For Wi-fi 6 Features Such As Ofdma, Bidirectional Multi-user Mimo, And Target Wait Time (twt) For Better Multi-user Performance And Improved Efficiency.
For Primary Or Backup Cellular, Optional Cat 12 Module Includes Antennas And A High-speed Interface For Lte Connectivity.
You Get Convenient Wired Connectivity With A 2.5 Gbps Uplink/downlink Ethernet Port, A Dedicated 1 Gbps Uplink Port, And Three Dedicated Downlink Ports.
Internet Of Things (iot) Connectivity With Integrated Bluetooth 5 And 802.15.4 Radio For Zigbee Support And Usbport Extension For Connection To A Range Of Devices.
Remote Deployment And Management Made Simple
HPE Aruba Networking 600r Series Remote Access Points Are Deployed And Managed Using Cloud-native HPE Aruba Networking Central To Extend The Wan To Home Offices, Small Offices, And Even Temporary Locations With Built-in Sd-wan And Cloud Security.
Remote Work Microbranch Capabilities Include Sd-wan Route/tunnel Orchestration, Policy-based Routing, Multiple Active Tunnels, Wan Health Visibility, And Cloud Security Orchestration.
Include Gps Receiver And Fine Time Measurements To Accurately Auto-locate Themselves.
Zero Touch Provisioning Provides Ease Of Implementation In Branch Offices And Remote Sites, Without On-site Technical Expertise.
No Mounts Are Needed With Bundles That Combine A Desk Stand, Power Adapter, And Power Cord To Mitigate Excess Packaging.
Boost Security
The HPE Aruba Networking 600r Series Remote Access Points Offer Enhanced Security With Dynamic Segmentation To Remove The Time Consuming And Error-prone Task Of Managing Complex And Static Vlans, Acls, And Subnets By Dynamically Assigning Policies And Keeping Traffic Protected And Separated
The Ap Offers Stronger Encryption And Authentication With Wpa3, Protected Credentials/keys Storage For Guest Access With Enhanced Open, And User And Iot Access Policy Enforcement Firewalls (pefs).
It Simplifies Policy Enforcement By Using The Pef To Encapsulate Traffic From The Ap To The Gateway (or Mobility Controller) For End-to-end Encryption And Inspection.
For Enhanced Device Assurance, The Access Points Include An Installed Trusted Platform Module (tpm) For Protected Storage Of Credentials, Keys, And Boot Code.
Technical Specifications
Certifications
Wi-fi Alliance (wfa): Wi-fi Certified A, B, G, N, Ac
Wi-fi Certified 6e (ax, 6ghz)
Wpa, Wpa2 And Wpa3 – Enterprise With Cnsa Option, Personal (sae), Enhanced
Open (owe)
Wmm, Wmm-ps, Wi-fi Agile Multiband
Bluetooth Sig
Ethernet Alliance (poe, Pse Device, Class 3)
Input Voltage 48v/5w Dc
Regulatory
Fcc/ised
Ce Marked
Red Directive 2014/53/eu
Emc Directive 2014/30/eu
Low Voltage Directive 2014/35/eu
Ul/iec/en 60950
Iec/en 62368-1
En 60601-1-1, En60601-1-2
Wi-fi Antenna Integrated Omni-directional Antennas For 2x2 Mimo With Peak Antenna Gain Of 5.5dbi In 2.4ghz, 5.5dbi In 5ghz And 5.5dbi In 6ghz. Built-in Antennas Are Optimized For Horizontal Desk-mounted Orientation Of The Ap.
Connectivity, Standard Wi-fi 6e Bands: 2.4 Ghz, 5 Ghz, 6 Ghz Plus An Add-on Cellular Module For Primary Or Backup Connectivity.
Ports
Uplink (e0): Ethernet Wired Network Port (rj-45)
Up-/downlink (e1): Ethernet Wired Network Port (rj-45)
Downlink (e1-e3): Ethernet Wired Network Ports (rj-45)
Dc Power Interface
Usb 2.0 Host Interface (type A Connector)
Cellular Radio Module Interface (accessible After Removing The Back Cover)
Serial Console Interface (proprietary, Micro-b Usb Physical Jack)
Kensington Security Slot.
Power Consumption
Maximum (worst-case) Power Consumption: 40w
Maximum (worst-case) Power Consumption In Idle Mode: 4.9w.
Radio Coverage Indoor, Tri-radio, 2.4ghz, 5ghz And 6ghz (dual Concurrent) 802.11ax 2x2 Mimo.
Condition: New Factory Sealed.
Availability: Call.
Our Warranty: 90 Days.
HPE R8N10-61001 Aruba Networking Dual Radio Tri Band 2x2 Wi-fi 6e Remote Access Point
Overview
user Experiences To Remote Power Users And Small Branch Environments. Providing Up To 3.6 Gbps Combined Aggregate Data Rate (using 5 Ghz And
6 Ghz Bands), This Series Delivers More Wireless Capacity And Wider Channels By Taking Advantage Of Wi-fi 6e And The 6 Ghz Band To More Than Double Capacity To Support Increasing Wifi Demands, Especially For Latencysensitive, Highbandwidth Video Communications.
Features
Wi-fi 6e Performance For Remote Work And Small Branches
maximum Combined Data Rate Of Up To 3.6 Gbps When Configured For Concurrent 5 Ghz And 6 Ghz Operation.
Remote Deployment And Management Made Simple
Boost Security
Technical Specifications
Certifications
Input Voltage 48v/5w Dc
Regulatory
Wi-fi Antenna Integrated Omni-directional Antennas For 2x2 Mimo With Peak Antenna Gain Of 5.5dbi In 2.4ghz, 5.5dbi In 5ghz And 5.5dbi In 6ghz. Built-in Antennas Are Optimized For Horizontal Desk-mounted Orientation Of The Ap.
Connectivity, Standard Wi-fi 6e Bands: 2.4 Ghz, 5 Ghz, 6 Ghz Plus An Add-on Cellular Module For Primary Or Backup Connectivity.
Ports
Power Consumption
Radio Coverage Indoor, Tri-radio, 2.4ghz, 5ghz And 6ghz (dual Concurrent) 802.11ax 2x2 Mimo.
Condition: New Factory Sealed.
Availability: Call.
Our Warranty: 90 Days.
| Capacity | WIRELESS 2.4GBPS |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | HPE |
