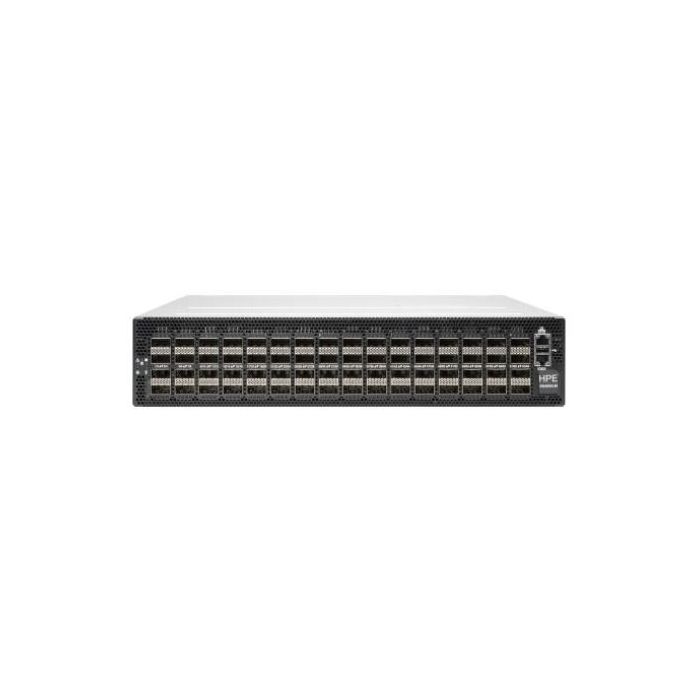

HPE R6R26A SN4600cM Switch L3 managed 64 x 100 Gigabit QSFP28
Part Number:
R6R26A
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type: Switch - 64 Ports - L3 - Managed
Enclosure Type: Back To Front Airflow Rack-mountable 2u
Subtype: 100 Gigabit Ethernet
Ports: 64 X 100 Gigabit Qsfp28
Performance: Switching Capacity: 8.4 Bpps Latency: 500 Ns Aggregate Throughput: 12.8 Tbps
Capacity: Jumbo Frame Size: 9216 Groups Per System: 64
Jumbo Frame Support: Yes
Routing Protocol: Bgp-4, Bgp, Igmp, Ospfv2, Pim-sm, Pim-ssm, Ecmp, Bgp-mp
Remote Management Protocol: Snmp 1, Snmp 2, Telnet, Snmp 3, Tftp, Ssh-2, Cli, Scp, Dhcp, Json, Ldap
Compliant Standards: Ieee 802.1q, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.1qbb, Ieee 802.1qaz
Ram: 8 Gb
Built-in Devices: 32 Gb Ssd
Features: flow Control, Ip-routing, Vlan Support, Igmp Snooping, Port Mirroring, Store And Forward, Ipv6 Support, Weighted Random Early Detection (wred), Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Data Center Bridging Exchange (dcbx) Support, Quality Of Service (qos), Bidirectional Forwarding Detection (bfd), Lacp Support, Lldp Support, Dhcp Relay, Virtual Routing And Forwarding (vrf), Port Isolation, Sflow V5, Cut-through, Precision Time Protocol (ptp), Openflow Support, Explicit Congestion Notification (ecn), Priority-based Flow Control (pfc), Control Plane Protection (copp), 64mb Packet Buffer, Virtual Extensible Lan (vxlan), Multi Chassis Link Aggregation Group (mlag), Rdma Over Converged Ethernet (roce) V2, Open Shortest Path First (ospf), Ethernet Virtual Private Network (evpn), Software Defined Networking (sdn), Network Timing Protocol (ntp), Root Guard, Loop Guard, Voice Vlan, Top-of-rack (tor), Bpdu Filter, Encapsulated Remote Span (erspan), Protocol Independent Multicast (pim), Bpdu Guard, Q-in-q Tunneling, Span Mode, Link Aggregation Group (lag), Rapid Convergence Spanning Tree Protocol
Expansion / Connectivity :
Interfaces :
64 X 100gbit Lan Qsfp28
1 X Usb 2.0 Type A
1 X Management Rj-45
1 X Serial Rj-45
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Power Provided: 1100 Watt
Voltage Required : Ac 120/230 V (50/60 Hz)
Condition: New Open Box.
Availability: Call.
Our Warranty: 90 Days.
HPE R6R26A Sn4600cm Switch L3 Managed 64 X 100 Gigabit Qsfp28 Back To Front Airflow Rack-mountable.
Key Features :
Expansion / Connectivity :
64 X 100gbit Lan Qsfp28
1 X Usb 2.0 Type A
1 X Management Rj-45
1 X Serial Rj-45
Power :
Condition: New Open Box.
Availability: Call.
Our Warranty: 90 Days.
| Capacity | 64 PORT |
|---|---|
| Condition | New |
| Manufacturer | HPE |
