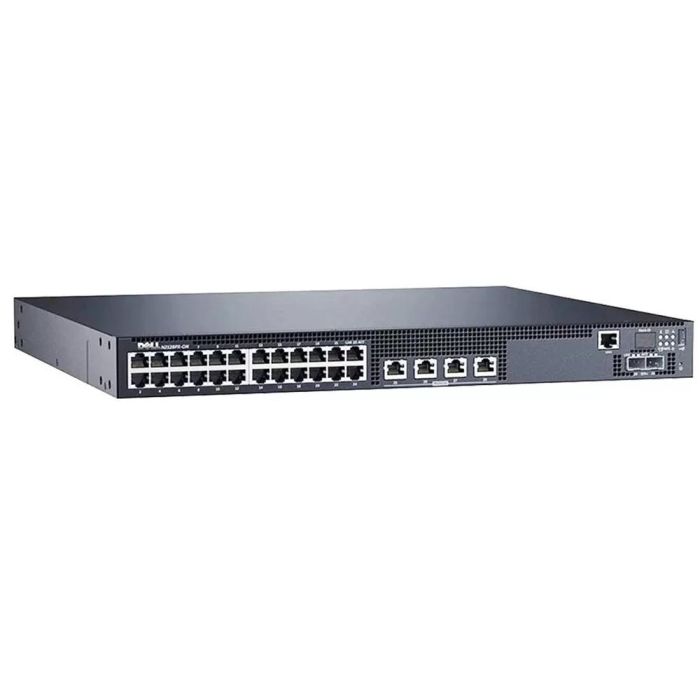

Dell R3WCD Emc Networking N2128PX-ON Switch 28 Ports
Part Number:
R3WCD
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview
Key Features :
Device Type : Switch 28 Ports L3 Managed Stackable
Enclosure Type : Rack-mountable 1u
Subtype gigabit : Ethernet
Ports : 24 X 10/100/1000 (poe+) + 4 X 100/1000/2.5g/5g (poe) + 2 X 10 Gigabit Sfp+
Power Over Ethernet (poe) : Poe+
Performance : Switching Fabric Bandwidth: 220 Gbps Forwarding.
Performance: 256 Mpps
Capacity : Mac Addresses: 32000 Aggregated Links (dynamic): 144 Lag.
Groups: 128 Queues Per Port: 8 Vlans Supported: 4094 Arp Entries: 1024 Ndp Entries: 400 Max Acl Rules System-wide: 2048 Acl: 100 Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 1024 Maximum Acl Rules Per Interface (ipv4) Egress Rules: 512 Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 512 Maximum Acl Rules Per Interface (ipv6) Egress Rules: 256
Mac Address Table Size : 32000 Entries
Routing Protocol : Rip, Rip-1, Rip-2, Igmpv2, Igmp, Igmpv3
Remote Management Protocol : Snmp 2, Rmon 1, Rmon 2, Snmp, Rmon 3, Rmon 9, Telnet, Http, Tftp, Ssh-2
Encryption Algorithm : Aes, Ssl, Tls 1.0
Authentication Method : Radius, Tacacs+, Ldap
Features : Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Front To Back Airflow, Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Redundant Fans, Mac And Ip-based Acls Support, Time-controlled Acls Support
Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ansi/tia-1057, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.3ax
Ram : 2 Gb
Flash Memory : 512 Mb
Expansion / Connectivity :
Interfaces :
24 X Gigabit Lan - Rj-45 - Poe+ - 30.8 W
4 X 5gbit Lan - Rj-45 - Poe - 60 W
2 X 10gbit Lan - Sfp+
1 X 1000base-t - Rj-45 - Management
1 X Usb - Type A
Power :
Power Device : Internal Power Supply
Installed Qty : 1
Power Provided : 1000 Watt
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
DELL Emc R3WCD Networking N2128px-on Switch 28 Ports Managed Rack-mountable
Key Features :
Expansion / Connectivity :
Interfaces :
Power :
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
| Capacity | 28 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | DELL |
