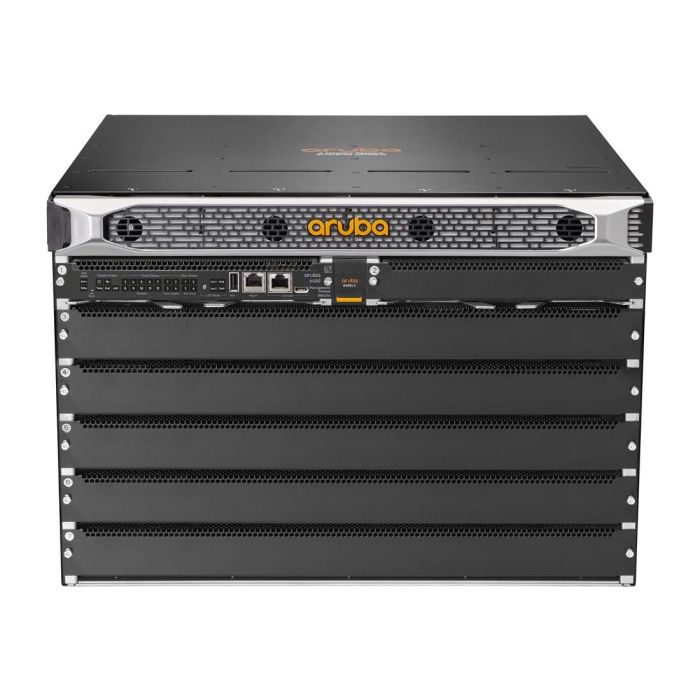

HPE R0X26-61101 Aruba 6405 V2 Switch Chassis
Part Number:
R0X26-61101
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - L3 - Managed
enclosure Type : Front To Back Airflow Rack-mountable 7u
subtype : 10 Gigabit Ethernet
performance : Switching Capacity: 14 Tbps , Throughput: 5.7 Bpps
capacity : Switched Virtual Interfaces (svis): 2000 , Ipv4 Host Table Capacity: 32000 , Ipv6 Host Table Capacity: 32000 , Ipv4 Routes (unicast): 64000 , Ipv6 Routes (unicast): 64000 , Ipv4 Routes (multicast): 8000 , Ipv6 Routes (multicast): 8000 , Igmp Groups: 8000 , Mld Groups: 4000 , Ipv4 Acl Entries (ingress): 5000 , Ipv6 Acl Entries (ingress): 1250 , Mac Acl Entries (ingress): 5000 , Ipv4 Acl Entries (egress): 2000 , Ipv6 Acl Entries (egress): 500 , Mac Acl Entries (egress): 2000
mac Address Table Size : 32768 Entries
jumbo Frame Support : 9198 Bytes
routing Protocol : Egp, Bgp-4, Igmpv2, Igmp, Vrrp, Ospfv2, Igmpv3, Ospfv3, Msdp, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Policy-based Routing (pbr), Mldv2, Mld, Bidirectional Forwarding Detection (bfd)
remote Management Protocol : Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Ssh, Ssh-2, Cli, Xrmon, Sftp
authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
features : Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, High Availability, Firmware Upgradable, Sflow, Pvst, Mstp Support, Acl Support, Qos, Jumbo Frames Support, Mld Snooping, Udld, Rapid Pvst+, Dwrr, Lldp Support, Mib, Dhcp Protection, Dual Firmware Images, Mvrp, Packet Storm Protection, Cos, Sp, Broadcast Storm Protection, Tos, Bpdu, Vxlan, Multicast Storm Protection, Ntp, Ra Guard, Pim, Vlan Tagging, Rstp, Ipv4 And Ipv6 Dual Stack, Ip Multicast, Bsr Mechanism, Vsx, Dynamic Ipv6 Lockdown, Nd Snooping, Unicast Storm Protection, Microsoft Nlb
compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3at, Ieee 802.1ax, Ieee 802.3bt
processor : 1: 1.8 Ghz
ram : 16 Gb Ddr4 Sdram
flash Memory : 32 Gb
status Indicators : Power, Active, Standby, Status, Fan
Expansion / Connectivity :
Interfaces :
1 X Usb-c Console
1 X Console Rj-45
1 X Usb Type A
1 X Management Rj-45
Installed Modules Qty (max) : 1 (installed) / 7 (max)
Power :
Power Device : Internal Power Supply ( Not Installed)
Installed Qty : 0 (installed) / 4 (max)
Power Redundancy : Optional
Voltage Required : Ac 120/230 V (50/60 Hz)
80 Plus Certification : 80 Plus Platinum
Condition : New Open Box
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
HPE R0X26-61101 Aruba Cx 6405 V2 - Switch - L3 - Managed - Front To Back Airflow - Rack-mountable ( Power Supplies Not Included, Order Separately).
Key Features :
enclosure Type : Front To Back Airflow Rack-mountable 7u
subtype : 10 Gigabit Ethernet
performance : Switching Capacity: 14 Tbps , Throughput: 5.7 Bpps
capacity : Switched Virtual Interfaces (svis): 2000 , Ipv4 Host Table Capacity: 32000 , Ipv6 Host Table Capacity: 32000 , Ipv4 Routes (unicast): 64000 , Ipv6 Routes (unicast): 64000 , Ipv4 Routes (multicast): 8000 , Ipv6 Routes (multicast): 8000 , Igmp Groups: 8000 , Mld Groups: 4000 , Ipv4 Acl Entries (ingress): 5000 , Ipv6 Acl Entries (ingress): 1250 , Mac Acl Entries (ingress): 5000 , Ipv4 Acl Entries (egress): 2000 , Ipv6 Acl Entries (egress): 500 , Mac Acl Entries (egress): 2000
mac Address Table Size : 32768 Entries
jumbo Frame Support : 9198 Bytes
routing Protocol : Egp, Bgp-4, Igmpv2, Igmp, Vrrp, Ospfv2, Igmpv3, Ospfv3, Msdp, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Policy-based Routing (pbr), Mldv2, Mld, Bidirectional Forwarding Detection (bfd)
remote Management Protocol : Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Ssh, Ssh-2, Cli, Xrmon, Sftp
authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
features : Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, High Availability, Firmware Upgradable, Sflow, Pvst, Mstp Support, Acl Support, Qos, Jumbo Frames Support, Mld Snooping, Udld, Rapid Pvst+, Dwrr, Lldp Support, Mib, Dhcp Protection, Dual Firmware Images, Mvrp, Packet Storm Protection, Cos, Sp, Broadcast Storm Protection, Tos, Bpdu, Vxlan, Multicast Storm Protection, Ntp, Ra Guard, Pim, Vlan Tagging, Rstp, Ipv4 And Ipv6 Dual Stack, Ip Multicast, Bsr Mechanism, Vsx, Dynamic Ipv6 Lockdown, Nd Snooping, Unicast Storm Protection, Microsoft Nlb
compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3at, Ieee 802.1ax, Ieee 802.3bt
processor : 1: 1.8 Ghz
ram : 16 Gb Ddr4 Sdram
flash Memory : 32 Gb
status Indicators : Power, Active, Standby, Status, Fan
Expansion / Connectivity :
Interfaces :
Power :
Condition : New Open Box
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
| Capacity | CHASSIS |
|---|---|
| Condition | New |
| Manufacturer | HPE |
