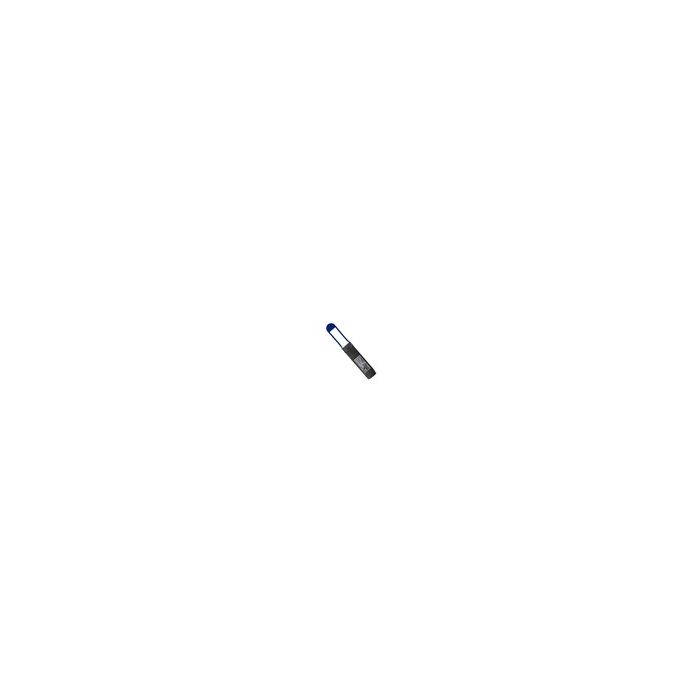

Juniper Networks QSFP-100G-LR4-C 100G LR4 QSFP28 1310nm 10KM LC compatible Transceiver
Part Number:
QSFP-100G-LR4-C
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview 1294.53 Nm Through 1296.59 Nm
1299.02 Nm Through 1301.09 Nm
1303.54 Nm Through 1305.63 Nm
1308.09 Nm Through 1310.19 Nm
Transmitter Output Power, Each Lane (minimum) –4.3 Dbm
Transmitter Output Power, Each Lane (maximum) 4.5 Dbm
Receiver Input Power, Each Lane (minimum) –10.6 Dbm
Receiver Input Power, Each Lane (maximum) 4.5 Dbm
Cable Type Smf
Core Size/cladding 9/125 Μm
Distance 10 Km
Maximum Power Consumption (w) 3.5 W
Operating Temperature (range) 0° C To 70° C
Storage Temperature –40° C To 85° C
Condition: New.
Availability: In Stock.
Our Warranty: 90 Days.
Juniper Networks QSFP-100G-LR4-C 100g Lr4 Qsfp28 1310nm 10km Lc Compatible Transceiver
Specifications
Speed 100 Gigabit Ethernet
Breakout Capable No
Transceiver Type Qsfp28
Product Type Optical Transceiver
Connector Duplex Lc
Monitoring Available Yes
Digital Optical Monitoring Yes
Standards Compliance (ethernet/otn Standard, For E.g. 100gbase-lr4) Ieee 802.3ba-2010
Signaling Rate, Each Lane 25.78125 Gbd +/- 100 Ppm
Transmitter Wavelengths (range)
Transmitter Output Power, Each Lane (minimum) –4.3 Dbm
Transmitter Output Power, Each Lane (maximum) 4.5 Dbm
Receiver Input Power, Each Lane (minimum) –10.6 Dbm
Receiver Input Power, Each Lane (maximum) 4.5 Dbm
Cable Type Smf
Core Size/cladding 9/125 Μm
Distance 10 Km
Maximum Power Consumption (w) 3.5 W
Operating Temperature (range) 0° C To 70° C
Storage Temperature –40° C To 85° C
Condition: New.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 100 GIGABIT |
|---|---|
| Condition | New |
| Manufacturer | JUNIPER NETWORKS |
