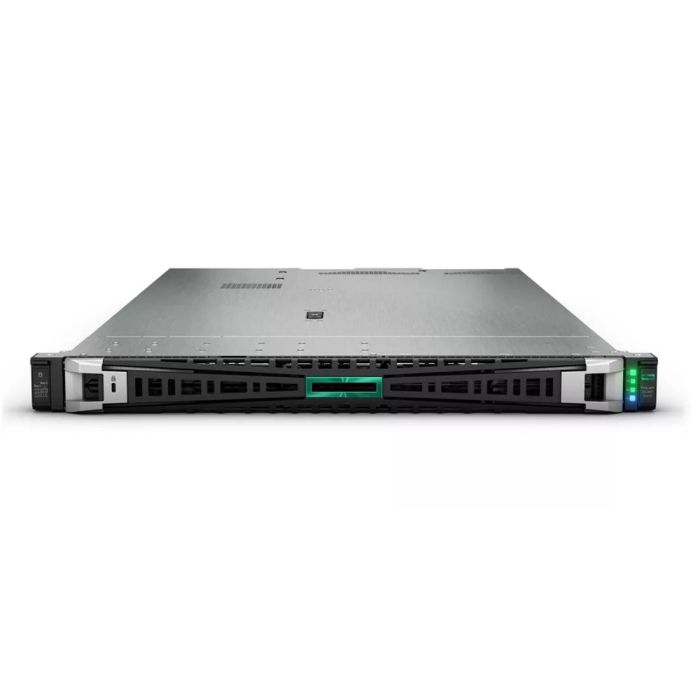

HPE P72994-005 DL360 Gen11 6530 1p 128GB-R 8SFF NS204i-u NC 2x1000W RPS NA Server

HPE P72994-005 Proliant Dl360 Gen11 Smart Choice Model - 5th Gen 1x 32-core Intel Xeon Gold 6530 / 2.1 Ghz - 128(2x64)gb Ddr5 Sdram - Broadcom Bcm5719 Ethernet 1gb 4-port Base-t Ocp3 Adapter - HPE Ns204i-u Gen11 Nvme Hot Plug Boot Optimized Storage Device - 8sff - 2x 1000w Flex Slot Titanium Hot Plug Power Supply - 2-way 1u Rack Server.

General Information :
Manufaturer : Hewlett Packard Enterprise
Manufaturer Website Address : WWW.HPE.COM
Manufaturer Part Number : P72994-005
Product Form Factor : Rack-mountable - 1u
Height ( Rack Units) : 1u
Server Scalability : 2-way
Hot-swap Bays Qty : 8
Product Name : HPE Proliant Dl360 Gen11 6530 2.1ghz 32c 1p 128gb-r 8sff Ns204i-u Nc 2x1000w Rps Na Server

Processor / Chipset :
Cpu : Intel Xeon Gold 6530
Clock Speed : 2.1 Ghz
Max Turbo Speed : 4.0 Ghz
Number Of Cores : 32-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Lga4677 Socket-e
Chipset Type : Intel C741

Cache Memory :
Installed Size : L3 Cache - 160 Mb
Cache Per Processor : 160 Mb

Ram :
Type : HPE Ddr5 Smart Memory, Registered ( Rdimm)
Installed Size : 128 Gb / 8 Tb (max)
Technology : Ddr5 Sdram - Advanced Ecc
Effective Memory Speed : 4800 Mhz
Rated Memory Speed : 5600 Mhz
Form Factor : Dimm 288-pin
Slots : 32 (total) / 30 (empty)
Features : Registered, Dual Rank, 8-channel Memory Architecture, HPE Smartmemory, Slots 17 - 32 Are Available In Two-processor Configuration Only
Configuration Features: 2 X 64 Gb

Internal Storage Devices :
Hdd / Ssd : None
Optical Drive : No Optical Drive

Storage Controller :
Storage Controller Name : HPE Ns204i-u Gen11 Nvme Hot Plug Boot Optimized Storage Device
Raid Levels : Dedicated Hardware Raid 1
Form Factor : Pcie Half-height, Half-length (hhhl) Card
Usable Capacity : 480gb
Compliance : Rohs, Lot 9
Pcie Support : Gen3

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga

Networking :
Interface (bus) Type : Open Compute Project Mezzanine (ocp) 3.0
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Broadcom Bcm5719
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 6
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ocp 3.0

Expansion / Connectivity :
Bays :
1 (total) / 1 (free) X External Universal Media Bay
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :
2 (total) / 2 (free) X Flexiblelom
1 (total) / 1 (free) X Pcie 5.0 X16 - Full-length, Full-height
1 (total) / 1 (free) X Pcie 5.0 X16 - Full-length, Full-height (x8 Mode)
1 (total) / 1 (free) X Pcie 5.0 X16 - Half-length, Full-height (x8 Mode)

Interfaces :
1 X Usb 3.0 (1 In Front) (HPE Ilo Service Port)
4 X Usb 3.0 (1 Front, 2 Rear, 1 Internal)
1 X HPE Ilo - Rj-45 (1 Rear)
1 X Vga (1 Rear)
4 X Lan (gigabit Ethernet) - Rj-45

Miscellaneous :
Included Accessories : 7x High Performance Fans, HPE Easy Install Rail 3 Kit Withot Cma
Compliant Standards : Aes, Fips 140-2, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.4
Pricing Type : Bto

Power :
Device Type : Power Supply - Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 100-120/200-240 V (50/60 Hz)
Power Provided : 1000 Watt
80 Plus Certification : 80 Plus Platinum

Operating System / Software :
Os Provided : No Operating System
Os Certified : Vmware Vsphere 6.0 (esxi), Suse Linux Enterprise Server 11 Sp4
Software : HPE Server Uefi

Sustainability Information :
Energy Star Certified : Yes

Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 - 90% Rh (non-condensing)

Dimensions & Weight :
Width : 17.1 In
Depth : 29.6 In
Height : 1.7 In
Weight : 32.1 Lbs

Condition : New Cto
Availability : In Stock
Manufacturer Warranty: Full
Our Warranty : 90 Days
