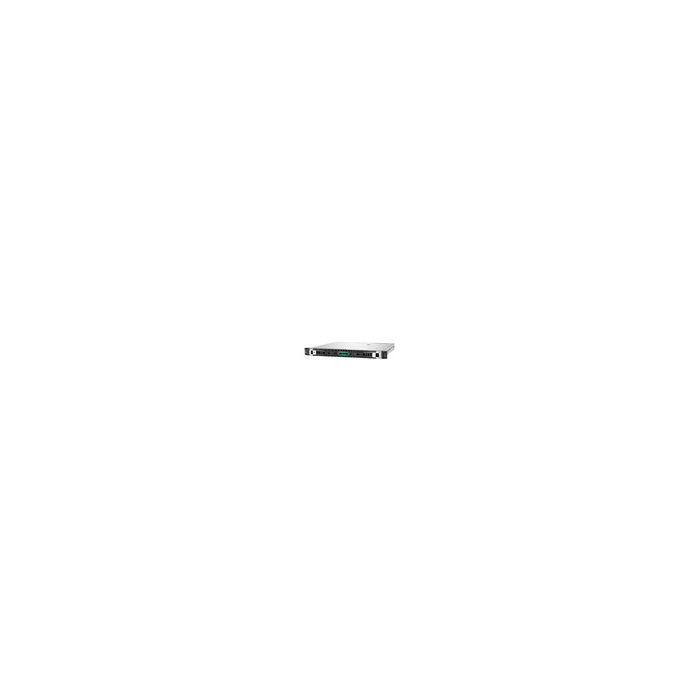

HPE P65395-B21 DL20 Gen11 E-2434 1p 16GB-U 4SFF 1x 500W PS Server
Part Number:
P65395-B21
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview 4 (total) / 4 (free) X Hot-swap 2.5 Sff
1 (total) / 1 (free) X External
Slots :
1 (total) / 1 (free) X Pcie 5.0 X16 - Half-length, Full-height (x16 Mode)
1 (total) / 1 (free) X Open Compute Project Mezzanine (ocp) 3.0
Interfaces :
1 X HPE Ilo - Type A (1 In Front) (service Port)
5 X Usb 3.2 Gen 1x1 - Type A (1 Front, 4 Rear)
2 X Usb 3.2 Gen 2x2 (2 Internal)
1 X Displayport
1 X Vga
4 X Lan (gigabit Ethernet) - Rj-45
Miscellaneous :
Included Accessories : HPE Short Friction Rail Kit, 3 Performance Single Rotor Non-hot Plug And Non-redundant Fans
Compliant Standards : Aes, Fips 140-2, Triple Des, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Redfish Api, Acpi 6.3, Smbios 3.2, Active Directory V1.0, Uefi 2.9, Eu Lot 9
Power :
Device Type : Power Supply - Hot-plug
Power Redundancy : 1+1 (with Optional Power Supply)
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 100-120/200-240 V (50/60 Hz)
Power Provided : 500 Watt
80 Plus Certification : 80 Plus Platinum
Operating System / Software :
Os Provided : No Operating System
Os Certified : Microsoft Windows Server 2019, Microsoft Windows Server 2022, Vmware Esxi 8.0 Update 2
Software : HPE Intelligent Provisioning, HPE Ilo Management
Sustainability Information :
Energy Star Certified : Yes
Energy Star Version : 4.0
Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 - 90% Rh (non-condensing)
Sound Emission : 22 Dba
Dimensions & Weight :
Width : 17.11 In
Depth : 15.25 In
Height : 1.69 In
Weight : 19.84 Lbs
Condition : New Cto
Availability : In Stock
Manufacturer Warranty: Full
Our Warranty : 90 Days
HPE P65395-B21 Proliant Dl20 Gen11 Performance Model - 1x Intel Xeon Quad-core E-2434 / 3.4 Ghz - 16(1x16)gb Ddr5 Sdram Ecc - HPE Emb 1gb 4-port Bcm5719 Network Adapter - Emb Intel Vroc Sata Software Raid - 4 Sff Hdd Bays (hot Plug) - 1x HPE 500w Flex Slot Platinum Hot Plug Low Halogen Power Supply - 1-way 1u Rack Server.
General Information :
Manufaturer : Hewlett Packard Enterprise
Manufaturer Website Address : WWW.HPE.COM
Manufaturer Part Number : P65395-B21
Type : Server - Rack
Height ( Rack Units) : 1u
Server Scalability : 1-way
Hot-swap Bays Qty : 4
Product Name : HPE Proliant Dl20 Gen11 E-2434 3.4ghz 4-core 1p 16gb-u 4sff 500w Ps Server ( Performance Model)
Processor / Chipset :
Cpu : Intel Xeon E-2434
Clock Speed : 3.4 Ghz
Max Turbo Speed : 5 Ghz
Number Of Cores : Quad-core
Cpu Qty : 1
Max Cpu Qty : 1
Cpu Upgradability : Upgradable
Processor Main Features : Intel Turbo Boost Technology 2, Intel Smart Cache
Chipset Type : Intel C262
Cache Memory :
Installed Size : L3 Cache - 12 Mb
Cache Per Processor : 12 Mb
Ram :
Installed Size : 16 Gb / 128 Gb (max)
Technology : Ddr5 Sdram - Ecc
Effective Memory Speed : 4800 Mhz
Rated Memory Speed : 4800 Mhz
Form Factor : Dimm 288-pin
Slots : 4 (total) / 3 (empty)
Features : Unbuffered, HPE Standard Memory
Configuration Features : 1 X 16 Gb
Internal Storage Devices :
Hdd / Ssd : None
Optical Drive : No Optical Drive
Storage Controller :
Type : 1 X Sata
Controller Interface Type : Sata 6gb/s
Storage Controller Name : Intel Vroc Sata Software Raid
Channel Qty : 4
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Graphics Controller :
Graphics Processor : Matrox G200
Video Memory : 16 Mb
Video Interfaces : Vga, Displayport
Networking :
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Broadcom Bcm5719
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0
Features : Wake On Lan (wol), Acpi Support, Pxe Support
Expansion / Connectivity :
Bays :
Slots :
Interfaces :
Miscellaneous :
Included Accessories : HPE Short Friction Rail Kit, 3 Performance Single Rotor Non-hot Plug And Non-redundant Fans
Compliant Standards : Aes, Fips 140-2, Triple Des, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Redfish Api, Acpi 6.3, Smbios 3.2, Active Directory V1.0, Uefi 2.9, Eu Lot 9
Power :
Device Type : Power Supply - Hot-plug
Power Redundancy : 1+1 (with Optional Power Supply)
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 100-120/200-240 V (50/60 Hz)
Power Provided : 500 Watt
80 Plus Certification : 80 Plus Platinum
Operating System / Software :
Os Provided : No Operating System
Os Certified : Microsoft Windows Server 2019, Microsoft Windows Server 2022, Vmware Esxi 8.0 Update 2
Software : HPE Intelligent Provisioning, HPE Ilo Management
Sustainability Information :
Energy Star Certified : Yes
Energy Star Version : 4.0
Environmental Parameters :
Min Operating Temperature : 50 °f
Max Operating Temperature : 95 °f
Humidity Range Operating : 8 - 90% Rh (non-condensing)
Sound Emission : 22 Dba
Dimensions & Weight :
Width : 17.11 In
Depth : 15.25 In
Height : 1.69 In
Weight : 19.84 Lbs
Condition : New Cto
Availability : In Stock
Manufacturer Warranty: Full
Our Warranty : 90 Days
| Capacity | QUAD-CORE XEON 3.40GHz |
|---|---|
| Condition | New |
| Manufacturer | HPE |
