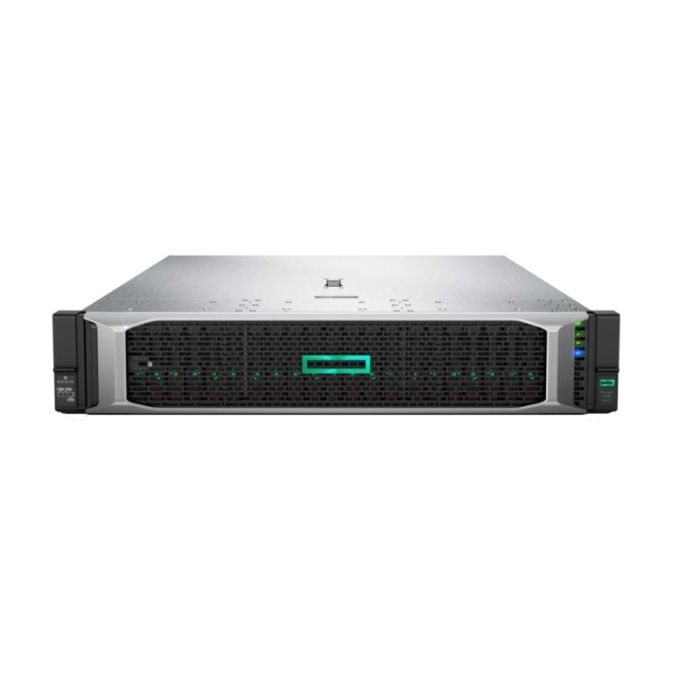

HPE P56964-B21 DL380 Gen10 4214R 1P 32G-R NC 8Sff BC Server

general:
type: Server
product Form Factor: Rack-mountable - 2u
built-in Devices: Led Panel
server Scalability: 2-way
hot-swap Bays Qty: 8
localization: Region: Worldwide (excluding China, Japan)

processor / Chipset:
cpu: Intel Xeon Gold 5218r
clock Speed: 2.1ghz
max Turbo Speed: 4ghz
number Of Cores: 20-core
cpu Qty: 1
max Cpu Qty: 2
cpu Upgradability: Upgradable
processor Main Features: Hyper-threading Technology, Intel Turbo Boost Technology 2
chipset Type: Intel C621

cache Memory:
installed Size: L3 Cache - 27.5mb
cache Per Processor: 27.5 Mb

ram:
installed Size: 32gb / 1.5tb (max)
technology: Ddr4 Sdram - Advanced Ecc
effective Memory Speed: 2666 Mhz
rated Memory Speed: 2933 Mhz
form Factor: Dimm 288-pin
slots: 12 (total) / 11 (empty)
features: Registered, Dual Rank, Slots 13 - 24 Are Available In Two-processor Configuration Only, HPE Smartmemory
configuration Features: 1 X 32 Gb
ram Supported: 3 Tb Load-reduced - Ecc, 1.5 Tb Registered - Ecc, 192 Gb Non-volatile - Ecc, 6 Tb - HPE Persistent Memory - Optane Dc Persistent

hard Drive:
type: No Hdd

storage Controller:
type: 1 X Raid
controller Interface Type: Sas 12gb/s
storage Controller Name: Broadcom Megaraid Mr416i-p
channel Qty: 16
buffer Size: 4gb

optical Storage:
type: No Optical Drive

monitor:
monitor Type: None

graphics Controller:
video Memory: 16mb
video Interfaces: Vga

networking:
ethernet Ports: 2 X 10 Gigabit Ethernet
ethernet Controller: Broadcom Bcm57414
data Link Protocol: 10 Gigabit Ethernet
remote Management Protocol: Snmp 3, Ipmi 2.0, Smash Clp
remote Management Controller: Integrated Lights-out 5
features: Wake On Lan (wol), Pxe Support

expansion / Connectivity:
bays: 1 (total) / 1 (free) X External Universal Media Bay, 8 (total) / 8 (free) X Hot-swap 2.5 Sff
slots: 1 (total) / 1 (free) X Flexiblelom, 1 (total) / 1 (free) X Pcie 3.0 X16 - Half-length, Full-height, 2 (total) / 2 (free) X Pcie 3.0 X8 - Half-length, Full-height, 1 (total) / 1 (free) X Microsd Card (internal)
interfaces: 1 X HPE Ilo - Type A (1 In Front), 5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal), 1 X HPE Ilo - Rj-45 (1 Rear), 2 X Lan (10gigabit Ethernet) - Sfp28 (2 Rear), 1 X Vga (1 Rear)

miscellaneous:
included Accessories: 4 Standard Fans, Cpu Standard Heatsink, HPE Easy Install Rails With Cma
compliant Standards: Aes, Fips 140-2, Weee, Triple Des, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Redfish Api, Uefi, Acpi 6.3, Smbios 3.2

power:
device Type: Power Supply - Hot-plug
power Redundancy: Optional
power Redundancy Scheme: 1+1 (with Optional Power Supply)
installed Qty: 1
max Supported Qty: 2
voltage Required: Ac 100-240v (50/60 Hz)
power Provided: 800 Watt
80 Plus Certification: 80 Plus Platinum

environmental Standards:
energy Star Certified: Yes
energy Star Version: 3.0

dimensions & Weight:
width: 17.5 In
depth: 26.7 In
height: 3.4 In
weight: 32.54 Lbs

availability: Call
condition: Refurbished
our Warranty: 90 Days
