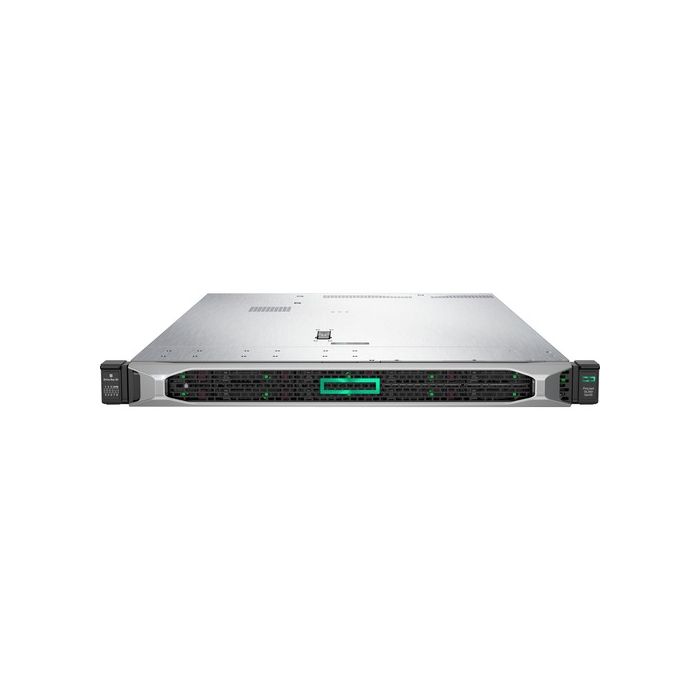

HPE P56951-B21 DL360 Gen10 4214R 1P 32G 8Sff BC Server

general:
Type: Server
Product Form Factor: Rack-mountable - 1u
Built-in Devices: Led Panel
Server Scalability: 2-way
Hot-swap Bays Qty: 8
Localization: Region: Worldwide (excluding China, Japan)

processor / Chipset:
Cpu: Intel Xeon Silver 4214r
Clock Speed: 2.4 Ghz
Max Turbo Speed: 3.5 Ghz
Number Of Cores: 12-core
Cpu Qty: 1
Max Cpu Qty: 2
Cpu Upgradability: Upgradable
Processor Main Features: Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket: Fclga3647 Socket
Chipset Type: Intel C621

cache Memory:
Installed Size: L3 Cache - 16.5 Mb
Cache Per Processor: 16.5 Mb

ram:
Installed Size: 32 Gb / 1.5 Tb (max)
Technology: Ddr4 Sdram - Advanced Ecc
Effective Memory Speed: 2933 Mhz
Rated Memory Speed: 2933 Mhz
Memory Specification Compliance: Pc4-23466
Form Factor: Dimm 288-pin
Slots: 12 (total) / 11 (empty)
Features: Registered, Online Spare Memory, Dual Rank, Mixing Of Different Types Of Memory Modules Is Not Supported, Slots 13 - 24 Are Available In Two-processor Configuration Only, HPE Smart Memory, 6-channel Memory Architecture
Configuration Features: 1 X 32 Gb
Ram Supported: 3 Tb Load-reduced - Ecc¦ 1.5 Tb Registered - Ecc¦ 192 Gb Non-volatile - Ecc

hard Drive:
Type: No Hdd

storage Controller:
Type: 1 X Raid - Pcie 4.0 X8
Controller Interface Type: Sata 6gb/s / Sas 12gb/s
Storage Controller Name: Broadcom Megaraid Mr416i-a
Channel Qty: 16
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size: 4 Gb

optical Storage:
Type: No Optical Drive

card Reader:
Type: Card Reader
Supported Flash Memory Cards: Microsd

graphics Controller:
Video Memory: 16 Mb
Video Interfaces: Vga

networking:
Ethernet Ports: 4 X Gigabit Ethernet
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller: Integrated Lights-out 5
Features: Wake On Lan (wol), Pxe Support

expansion / Connectivity:
Bays: 1 (total) / 1 (free) X External Universal Media Bay¦ 8 (total) / 8 (free) X Hot-swap 2.5 Sff
Slots: 1 (total) / 1 (free) X Pcie 3.0 X16 - Three-quarter-length, Full-height¦ 1 (total) / 1 (free) X Pcie 3.0 X8 - Low-profile¦ 1 (total) / 1 (free) X Flexiblelom - Three-quarter-length, Full-height (low-profile)¦ 1 (total) / 1 (free) X Microsd Card (internal)
Interfaces: 1 X HPE Ilo - Type A (1 In Front)¦ 1 X HPE Ilo - Rj-45 (1 Rear)¦ 5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)¦ 1 X Vga (1 Rear)¦ 4 X Lan (gigabit Ethernet) - Rj-45 (4 Rear)

miscellaneous:
Included Accessories: Cpu Standard Heatsink, 5 X Standard Fans, Sff Easy Install Rails
Compliant Standards: Aes, Fips 140-2, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

power:
Device Type: Power Supply - Hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with Optional Power Supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: Ac 100-240 V (50/60 Hz)
Power Provided: 800 Watt

operating System / Software:
Os Certified: Centos, Microsoft Windows Server 2012 R2, Vmware Vsphere 6.0 (esxi), Suse Linux Enterprise Server 11 Sp4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, Vmware Vsphere 6.5, Suse Linux Enterprise Server 12 Sp2, Clearos
Software: HPE Server Uefi

environmental Standards:
Energy Star Certified: Yes
Energy Star Version: 3.0

dimensions & Weight:
Width: 17.1 In
Depth: 27.8 In
Height: 1.7 In
Weight: 28.75 Lbs

availability: In Stock
condition: New Cto
mfg Warranty: Standard
