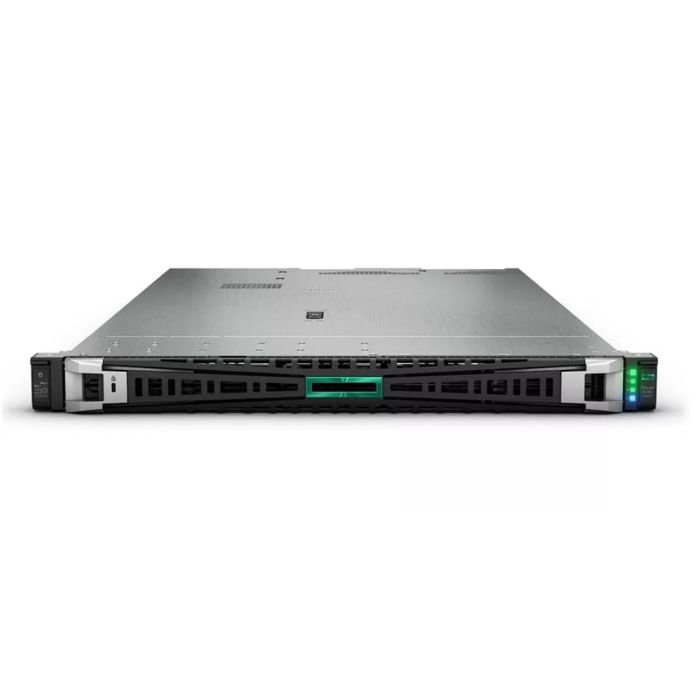

HPE P51931-B21 Dl360 Gen11 5416S 1P 32Gb Mr408I-O 8Sff Nc Server

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P51931-B21
Manufacturer Website Address : WWW.HPE.COM
Product Form Factor : Rack-mountable - 1u
Height ( Rack Units) : 1u
Hot-swap Bays Qty : 8
Product Name : HPE Proliant Dl360 Gen11 5416s 2.0ghz 16-core 1p 32gb-r Nc 8sff 800w Ps Server ( Bto Model)

Processor & Chipset :
Processor Name : Intel Xeon Gold 5416s
Processor Clock Speed : 2.0 Ghz
Max Turbo Frequency : 4.0 Ghz
Multi-core Technology : 16-core
Processor Installed Qty : 1
Max Processor Qty : 2
Chipset Model : C741
Cpu Socket : Fclga4677 Socket
Processor Upgradability : Upgradable
Processor Main Features : Intel Quickassist Technology (qat), Intel Hyper-threading Technology, Intel Turbo Boost Technology 2

Cache Memory :
Memory Type : Smart Cache
Memory Installed Size : 30 Mb
Cache Per Processor : 30 Mb

Memory :
Type : HPE Ddr5 Smart Memory, Registered ( Rdimm)
Installed Size : 32 Gb / 8 Tb ( Max)
Technology : Advanced Ecc
Effective Memory Speed : 4400 Mhz
Rated Memory Speed : 4800 Mhz
Dimm Rank : Dual Rank (2r)
Form Factor : Dimm 288-pin
Configuration Features : 1 X 32 Gb
Slots : 32 ( Total) / 31 ( Empty)
Features : Registered, Online Spare Memory, Dual Rank, Mixing Of Different Types Of Memory Modules Is Not Supported, 16 Dimm Slots Per Processor, 8 Channels Per Processor, 2 Dimms Per Channel

Internal Storage Devices :
Hdd / Ssd : None Ship As Standard
Optical Drive : Available As An Option ( Dvd-rom Or Dvd-rw)

Storage Controller :
Name : Embedded Intel Vroc Sata For HPE Proliant Gen11, With 14 Sata
Controller Type : Serial Ata
Controller Model : Intel Vroc
Raid Supported : Yes
Raid Levels : 0, 1, 5, 10

Graphics :
Video Interfaces : Vga
Video Memory : 16 Mb
Video Mode : Up To 1920 X 1200@60hz (32 Bpp)

Network & Communication:
Name : Broadcom Bcm57416 Ethernet 10gb 2-port Base-t Adapter
Card Type/profile : Stand Up
Asic/chip : Broadcom Bcm57416
Pcie Version : Pcie 3.0 X8
Auto Negotiation : 1gb, 10gb
Power Requirement : Typical: 16.4 W, Max: 16.1 W
Npar Single Root I/o Virtualization (sr-iov) : 8pfs Or 16pfs 128vf(total Per Chip)

Expansion / Connectivity :
Bays :
1 ( Total) / 1 (free) X External Universal Media Bay
8 ( Total) / 8 (free) X Hot-swap 2.5 Sff

Slots :
1 ( Total) / 1 ( Free) X Pcie 5.0 X16 - Full-height, Up To 9.5” Length ( Or Half-length Card)
1 ( Total) / 1 ( Free) X Pcie 5.0 X16 - Half-height ( Low-profile), Up To 9.5” Length ( Or Half Length Card)
1 ( Total) / 1 ( Free) X Microsd Card ( Internal)

Interfaces :
1 X Vga (1 Rear)
1 X Usb 2.0 (1 Internal)
1 X Display Port (1 Front)
1 X HPE Ilo - Rj-45 (1 Rear)
1 X Ocp Slot Port (1 Internal)
1 X Serial (1 Rear - Optional)
1 X HPE Ilo - Type A (1 In Front)
1 X Sata Optical Port (1 Internal)
4 X Usb 3.2 (1 Front, 2 Rear, 1 Internal)

Miscellaneous :
Included Accessories : Cpu Standard Heatsink, 5 X Standard Fans, HPE Easy Install Rail 3 Kit - W / O Cma
Embedded Management : HPE Ilo 6, Uefi, Openbmc Support, Intelligent Provisioning, Lo Restful Api, HPE Greenlake
Energy Star : Energy Star 3.0

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1 (1x Platinum)
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
Efficiency : Platinum 94%
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
Width : 17.11 In
Depth : 29.65 In
Height : 1.69 In
Weight : 32.1 Lbs

Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Full
Our Warranty : 90 Days
