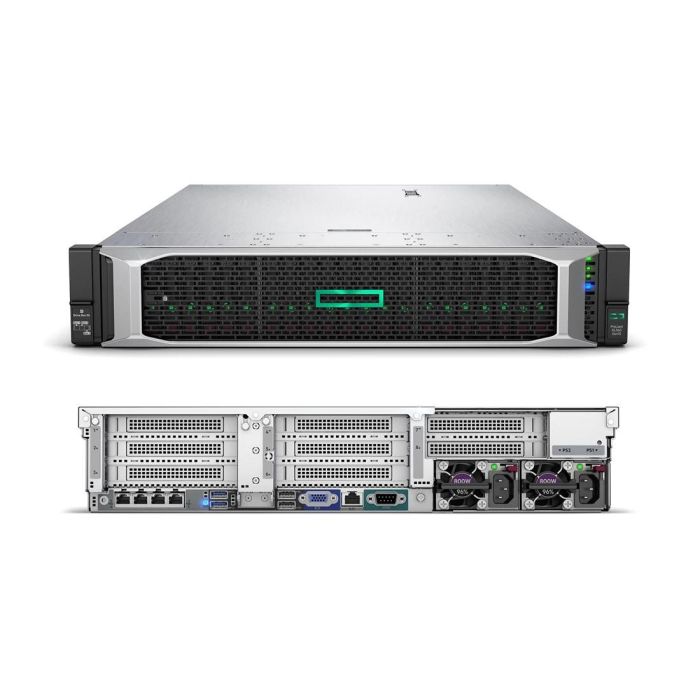

HPE P40457-B21 DL560 Gen10 8268 4P 512GB-R P816i-a 16SFF 2x1600W RPS Server

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P40457-B21
Manufacturer Website Address : WWW.HPE.COM
Model Name : HPE Proliant Dl560 Gen10 8268 2.9ghz 24-core 4p 512gb-r P816i-a 16sff 2x1600w Rps Server
Product Form Factor : Rack-mountable - 2u
Server Scalability : 4-way

Processor & Chipset :
Cpu : 2nd Gen Intel Xeon Platinum 8268 / 2.9 Ghz
Max Turbo Speed : 3.9 Ghz
Number Of Cores : 24-core
Cpu Qty : 4
Max Cpu Qty : 4
Cpu Upgradability : Upgradable
Processor Main Features : Turbo Boost Technology 2, Hyper-threading
Technology, Intel Smart Cache
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 143 Mb
Cache Per Processor : 35.75 Mb

Ram :
Installed Size : 512 Gb / 1.5 Tb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2933 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 48 (total) / 32 (empty)
Features : Registered, Hp Smartmemory, 6-channel Memory Architecture, Slots 25 - 48 Are Available In Four-processor Configuration Only
Configuration Features : 16 X 32 Gb
Ram Supported : 1.5 Tb Registered 3 Tb Load-reduced

Storage :
Hard Drive : None
Optical Drive : None

Storage Controllers:
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P816i-a Sr Software
Channel Qty : 16
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 4 Gb

Display & Graphics Controllers :
Graphics Processor : Matrox G200
Video Interfaces : Vga

Network & Communication :
Ethernet Ports : 2 X 10/25 Gigabit Ethernet Sfp28
Ethernet Controller : Bcm57414
Data Link Protocol : Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support

Expansion / Connectivity :
Bays :
1 (total) / 1 (free) X External
16 (total) / 16 (free) X Hot-swap 2.5 Sff

Slots :
1 (total) / 1 (free) X Pcie 3.0 X16 - Three-quarter-length, Full-height
2 (total) / 2 (free) X Pcie 3.0 X8 - Three-quarter-length, Full-height
2 (total) / 2 (free) X M.2 Card
1 (total) / 1 (free) X Microsd Card (internal)

Interfaces :
1 X Vga
1 X Serial
2 X Lan (25gigabit Ethernet) (sfp28)
1 X HPE Ilo - Rj-45
1 X HPE Ilo (1 In Front)
2 X Usb 2.0
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)

Miscellaneous :
Included Accessories :
Cable Management Arm
HPE Easy Install Rails
6x Redundant Hot Plug Fans

Compliant Standards : Weee, Acpi 6.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 1600 Watt
80 Plus Certification : 80 Plus Platinum
Efficiency : 94%

Dimensions & Weight :
Width : 17.5 In
Depth : 29.7 In
Height : 3.4 In
Weight : 40.67 Lbs

Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
