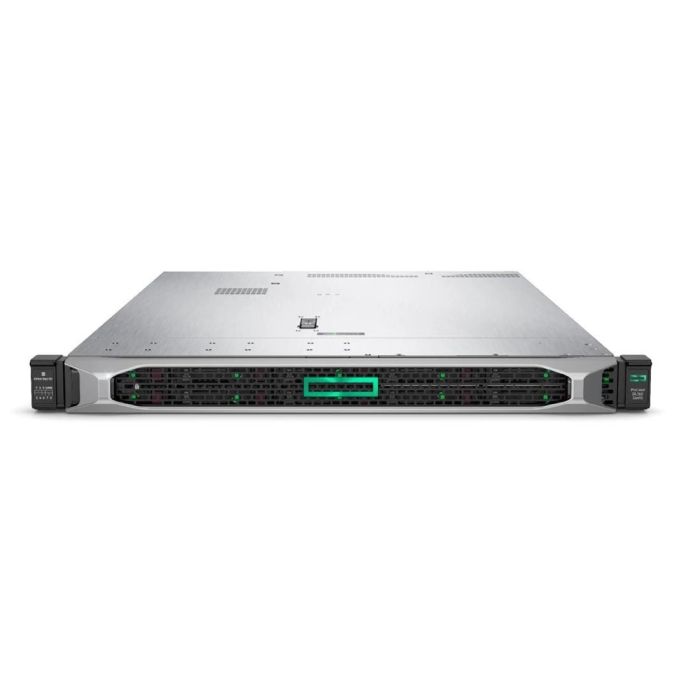

HPE P24744-B21 Dl360 Gen10 6250 1P 32G Nc 8Sff Server

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P24744-B21
Manufacturer Website Address : WWW.HPE.COM
Product Name : Proliant Dl360 Gen10 - 1u Rack Mountable Server ( Nc Model)

Processor & Chipset :
Cpu : 2nd Gen Intel Xeon Gold 6250 / 3.9 Ghz
Max Turbo Speed : 4.5 Ghz
Number Of Cores : 8-core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 35.75 Mb
Cache Per Processor : 35.75 Mb

Memory :
Installed Size : 32 Gb / 768 Gb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2933 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 12 (total) / 11 (empty)
Features : Registered
Configuration Features : 1 X 32 Gb
Ram Supported : Pc4-20800 - 768 Gb Registered Pc4-20800 - 3 Tb Load-reduced Pc4-20800 - 192 Gb Non-volatile

Storage:
Hard Drive : None
Optical Drive : None

Storage Controllers:
Type : 1 X Sata
Controller Interface Type : Sata 6gb/s
Storage Controller Name : HPE Smart Array S100i Sr Software
Channel Qty : 14

Display & Graphics Controllers :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication:
Form Factor : Plug-in Card
Ethernet Ports : 10gb Ethernet X 2
Ethernet Controller : HPE 562flr-t
Data Link Protocol : 10 Gigabit Ethernet
Data Transfer Rate : 10 Gbps

Expansion / Connectivity :
Bays :
1 (total) / 1 (free) X External Universal Media Bay
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :
1 (total) / 1 (free) X Pcie 3.0 X16 - Three-quarter-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 - Low-profile
1 (total) / 1 (free) X Flexiblelom - Three-quarter-length, Full-height (low-profile)
1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 1 (free) X Pcie X16 - Full-height

Interfaces :
1 X HPE Ilo - Type A (1 In Front)
1 X HPE Ilo - Rj-45 (1 Rear)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X Vga (1 Rear)
4 X Lan (gigabit Ethernet) - Rj-45 (4 Rear)

Miscellaneous :
Included Accessories :
5 X Standard Hot Plug Fans

Compliant Standards :
Aes, Fips 140-2, Ipv6 Ready, Pci Dss, Tls V1.2, Fips 201 Piv, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 800 Watt
80 Plus Certification : 80 Plus Platinum

Dimensions & Weight :
Width : 17.1 In
Depth : 27.8 In
Height : 1.7 In
Weight : 28.75 Lbs

Availability : In Stock
Condition : New Cto
Manufacturer Warranty : Full
Our Warranty : 90 Days
