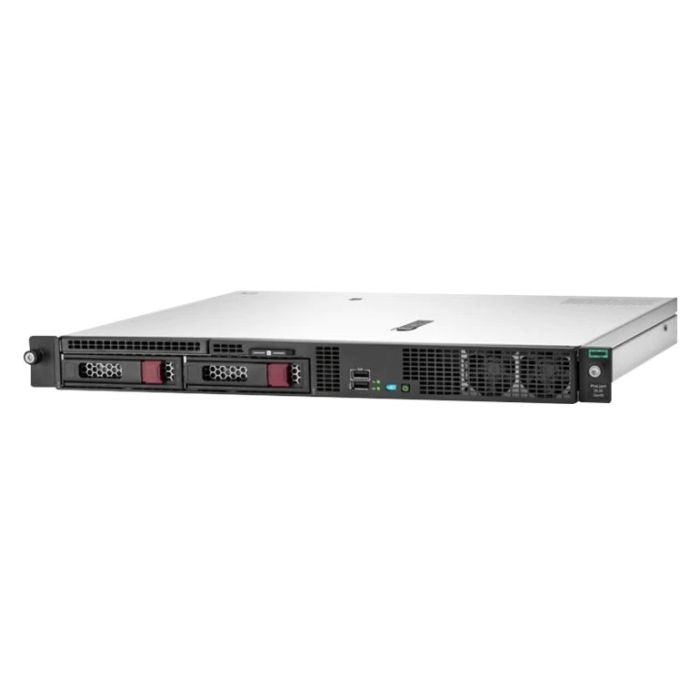

HPE P06961-B21 ProLiant DL20 Gen10 2Lff Non hot Plug Cto Server
Part Number:
P06961-B21
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview
General Information :
Manufacturer : HPE
Manufacturer Part Number : P06961-B21
Manufacturer Website Address : WWW.HPE.COM
Product Name: HPE Proliant Dl20 Gen10 Non 2lff Hot Plug Cto Server
Processor / Chipset
Cpu : No Cpu Install
Cpu Qty : None
Max Cpu Qty : 1
Cpu Upgradability : Upgradable
Cpu Socket : Lga1151 Socket
Chipset Type : Intel C621
Ram :
Installed Size : 0 Gb / 64 Gb (max)
Technology : Ddr4 Sdram - Ecc
Form Factor : Dimm 288-pin
Slots : 4 (total) / 4 (empty)
Storage Controller :
Type : 1 X Raid
Controller Interface Type : Sata 6gbps
Storage Controller Name : HPE Smart Array S100i Sr Software Raid
Channel Qty : 4
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Graphics Controller :
Graphics Processor : Matrox G200
Video Interfaces : Vga
Networking :
Interface (bus) Type : Pci Express X2
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : HPE 332i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion / Connectivity :
expansion Bays Total (free) :
2 (total) / 2 (free) X Non-hot Plug 3.5inch Lff
expansion Slots Total (free) :
4 (total) / 4 (free) X Dimm 288-pin
1 (total) / 1 (free) X Cpu
1 (total) / 1 (free) X Pcie 3.0 X16 - Three-quarter-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 - Low-profile
1 (total) / 1 (free) X Flexiblelom - Three-quarter-length, Full-height (low-profile) 1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 1 (free) X Pcie X16 - Full-height
interfaces & Ports :
1 X Vga
2 X Lan (gigabit Ethernet)
1 X Hp Ilo
1 X Management
5 X Usb 3.0 (2 Front, 2 Rear, 1 Internal)
Power :
Device Type : Power Supply - Non Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 1
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 290watt
80 Plus Certification : 80 Plus Silver
efficiency : 92%
Dimensions & Weight :
Width : 17.1 In
Depth : 15 In
Height : 1.7 In
Weight : 17.37 Lbs
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
HPE P06961-B21 Proliant Dl20 Gen10 Cto Server, No Cpu, No Ram, 2 Lff 3.5inch Non-hot Plug Hdd Bays, 2x Gigabit Ethernet, 1x290w Ps, 1u Rack Server
General Information :
Processor / Chipset
Ram :
Storage Controller :
Graphics Controller :
Networking :
Expansion / Connectivity :
expansion Bays Total (free) :
expansion Slots Total (free) :
interfaces & Ports :
Power :
efficiency : 92%
Dimensions & Weight :
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
| Capacity | XEON |
|---|---|
| Condition | Refurbished |
| Manufacturer | HPE |
