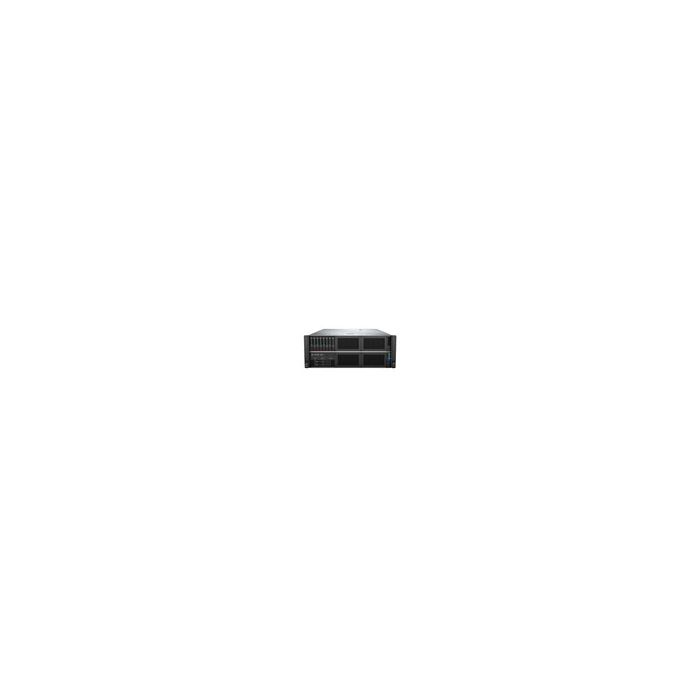

HPE P05672-B21 DL580 Gen10 6230 4p 256g 8Sff Server

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P05672-B21
Manufacturer Website Address : WWW.HPE.COM
Product Name : Proliant Dl580 Gen10 - 4u Rack Mountable Server ( Pre-configured Model)
Server Scalability : 4-way

Processor & Chipset :
Cpu : Intel Xeon Gold 6230 / 2.1 Ghz
Max Turbo Speed : 3.9 Ghz
Number Of Cores : 20-core
Cpu Qty : 4
Max Cpu Qty : 4
Cpu Upgradability : Upgradable
Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 110 Mb
Cache Per Processor : 27.5 Mb

Ram :
Installed Size : 256 Gb / 1.5 Tb (max)
Technology : Ddr4 Sdram - Ecc
Effective Memory Speed : 2933 Mhz
Rated Memory Speed : 2933 Mhz
Memory Specification Compliance : Pc4-23466
Form Factor : Dimm 288-pin
Slots : 48 (total) / 40 (empty)
Features : Registered, HPE Smartmemory
Configuration Features : 8 X 32 Gb
Ram Supported : 1.5 Tb Registered - Ecc 6 Tb Load-reduced - Ecc

Storage:
Hard Drive : None
Optical Drive : None

Storage Controllers:
Type : 1 X Raid - Pcie 3.0 X8
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : Smart Array P408i-p Sr

Display & Graphics Controllers :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication:
Interface (bus) Type : Pci Express 2.0 X4
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : HPE 535flr-t
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Features : Wake On Lan (wol), Acpi Support, Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1as, Ieee 802.3az

Expansion / Connectivity :
Bays :
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :
16 (total) / 16 (free) X Pcie 3.0 X16
1 (total) / 1 (free) X Flexiblelom
1 (total) / 1 (free) X Microsd Card

Interfaces :
1 X Serial
1 X Vga
1 X Hp Ilo - Rj-45
2 X Usb 2.0
2 X Lan (10gigabit Ethernet)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X Hp Ilo (1 In Front)

Miscellaneous :
Pricing Type : Cto

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Yes
Installed Qty : 4
Max Supported Qty : 4
Nominal Voltage : Ac 200/240 V (50/60 Hz)
Power Provided : 1600 Watt
80 Plus Certification : 80 Plus Platinum
Efficiency : 94%

Dimensions & Weight :
Width : 17.5 In
Depth : 29.6 In
Height : 6.9 In
Weight : 114 Lbs

Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
