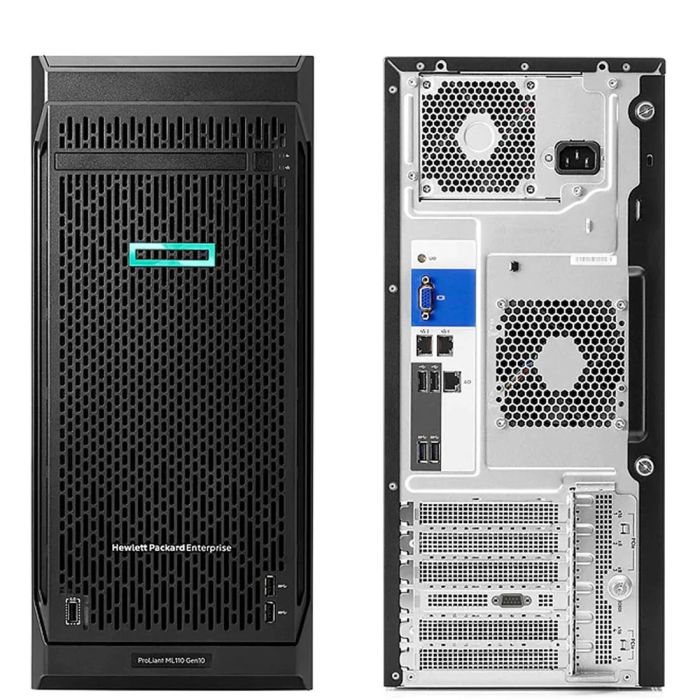

HPE P03684-S01 ML110 Gen10 3104 1P 8GB-R S100I 4LFF NHP SATA 350W PS Entry Server

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P03684-S01
Manufacturer Website Address : WWW.HPE.COM
Product Name : Proliant Ml110 Gen10 - 4.5u Tower Server ( Entry Model)

Processor & Chipset :
Cpu : 1st Gen Intel Xeon Bronze 3104 / 1.7 Ghz
Max Turbo Speed : 1.7 Ghz
Number Of Cores : 6-core
Cpu Qty : 1
Max Cpu Qty : 1
Cpu Upgradability : Upgradable
Processor Main Features : Intel Smart Cache
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 8.75 Mb
Cache Per Processor : 8.75 Mb

Memory :
Installed Size : 8 Gb / 192 Gb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2133 Mhz
Rated Memory Speed : 2666 Mhz
Memory Specification Compliance : Pc4-21300
Form Factor : Dimm 288-pin
Slots : 6 (total) / 5 (empty)
Features : Registered
Configuration Features : 1 X 8 Gb
Ram Supported : Pc4-21300 192 Gb Registered

Storage Controllers:
Type : 1 X Sata
Controller Interface Type : Sata 6gb/s
Storage Controller Name : HPE Smart Array S100i Sr Software Raid
Channel Qty : 10
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication:
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : HPE 368i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-out Advanced Management (asic)
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.3az

Expansion / Connectivity :
Bays :
1 (total) / 0 (free) X External 5.25
4 (total) / 4 (free) X Internal 3.5 Lff

Slots :
2 (total) / 2 (free) X Pcie 3.0 X8 - Half-length, Full-height (x4 Mode)
1 (total) / 1 (free) X Pcie 3.0 X16 - Three-quarter-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X16 - Full-length, Full-height
1 (total) / 1 (free) X Microsd Card (internal)
1 (total) / 1 (free) X Pcie 3.0 X8 - Half-length, Full-height

Interfaces :
1 X Vga (1 Rear)
2 X Lan (gigabit Ethernet) - Rj-45
1 X Hp Ilo - Rj-45 (1 Rear)
5 X Usb 3.0 (2 Front, 2 Rear, 1 Internal)
3 X Usb 2.0 (2 Rear, 1 Internal)
1 X Hp Ilo - Type A (1 In Front)

Miscellaneous :
Included Accessories :
2 X Fans

Compliant Standards :
Weee, Pci Dss, Ashrae Class A3, Acpi 6.1

Manufacturer Selling Program :
HPE Smart Buy

Power Description :
Device Type : Power Supply
Installed Qty : 1
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 350 Watt

Dimensions & Weight :
Width : 7.7 In
Depth : 18.9 In
Height : 17.3 In
Weight : 29.76 Lbs

Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
