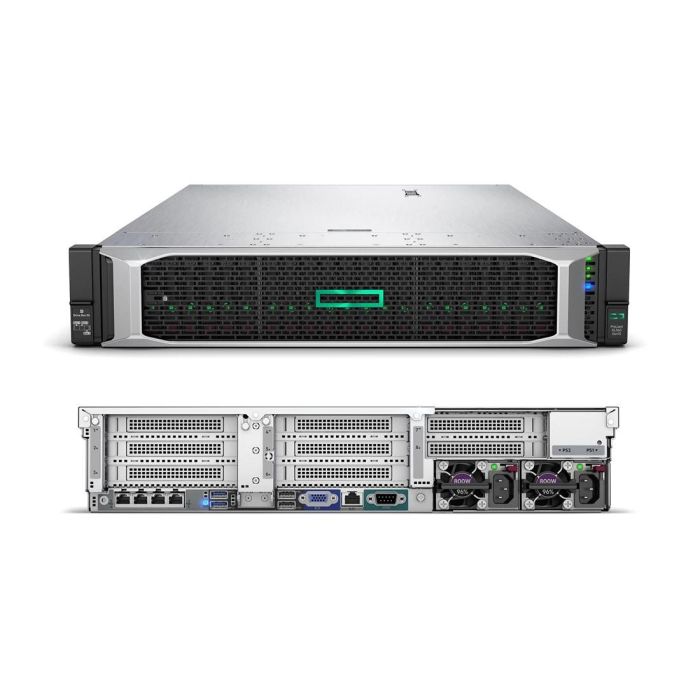

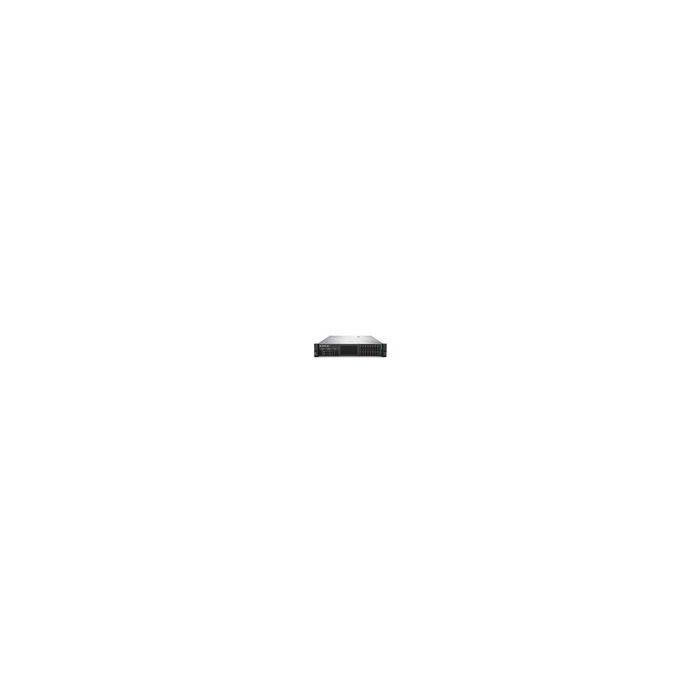

HPE P02874-B21 DL560 Gen10 6254 4P 256GB-R P408i-a 8SFF 2x1600W RPS Server

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : P02874-B21
Manufacturer Website Address : WWW.HPE.COM
Product Name : Proliant Dl560 Gen10 - 2u Rack Server ( Base Model)

Processor & Chipset :
Cpu : 2nd Gen Intel Xeon Gold 6254 / 3.1 Ghz
Max Turbo Speed : 4.0 Ghz
Number Of Cores : 18-core
Cpu Qty : 4
Max Cpu Qty : 4
Cpu Upgradability : Upgradable
Processor Main Features : Turbo Boost Technology 2, Hyper-threading Technology, Intel Smart Cache
Cpu Socket : Fclga3647 Socket
Chipset Type : Intel C621

Cache Memory :
Installed Size : L3 Cache - 99 Mb
Cache Per Processor : 24.75 Mb

Memory :
Installed Size : 256 Gb / 3 Tb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2933 Mhz
Rated Memory Speed : 2933 Mhz
Form Factor : Dimm 288-pin
Slots : 48 (total) / 40 (empty)
Features : Registered, Dual Rank, 6-channel Memory Architecture
Configuration Features : 8 X 32 Gb
Ram Supported : 1.5 Tb Registered 3 Tb Load-reduced

Storage Controllers :
Type : 1 X Raid
Controller Interface Type : Sata 6gb/s / Sas 12gb/s
Storage Controller Name : HPE Smart Array P408i-a
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Buffer Size : 2 Gb

Graphics Controller :
Video Memory : 16 Mb
Video Interfaces : Vga

Network & Communication :
Interface (bus) Type : Flexiblelom
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : HPE 533flr-t
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet : Remote Management Controller
Integrated Lights-out 5
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab

Expansion / Connectivity :
Expansion Bays Total (free) :
1 (total) / 1 (free) X External
8 (total) / 8 (free) X Hot-swap 2.5 Sff

Expansion Slots Total (free) :
1 (total) / 0 (free) X Flexiblelom
2 (total) / 2 (free) X Pcie 3.0 X16 - Three-quarter-length, Full-height
4 (total) / 4 (free) X Pcie 3.0 X8 - Three-quarter-length, Full-height
1 (total) / 1 (free) X Microsd Card (internal)

Interfaces & Ports :
1 X HPE Ilo - Type A (1 In Front)
5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
1 X HPE Ilo - Rj-45
2 X Lan (gigabit Ethernet)
1 X Vga (1 Rear)
1 X Serial (1 Rear)
2 X Usb 2.0 (2 Rear)

Miscellaneous :
Included Accessories : 6 X Redundant Hot Plug Fans, HPE Easy Install Rails With Cma
Compliant Standards : Aes, Fips 140-2, Ipv6 Ready, Acpi 6.1

Power Description :
Device Type : Power Supply - Hot-plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V (50/60 Hz)
Power Provided : 1600 Watt
80 Plus Certification : 80 Plus Platinum
Efficiency : 94%

Dimensions & Weight :
Width : 17.5 In
Depth : 29.7 In
Height : 3.4 In
Weight : 40.67 Lbs

Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
