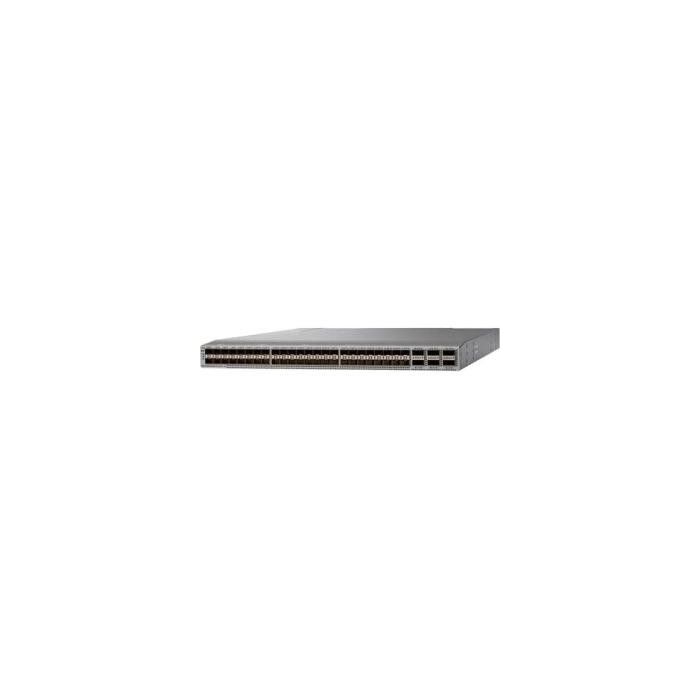

Cisco Nexus 9300 N9K-C93180YC-EX Switch 48 Port 10/25G SFP+ and 6 Port 100G QSFP Ref

Part Number:
N9K-C93180YC-EX
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order.
We accept Purchase Orders from Health & Educational sector and all Government institutions including Councils.
| Product Overview

CISCO N9K-C93180YC-EX Nexus 93180yc-ex - Switch - 48 Ports - L3 Rack-mountable.

Key Features:

  • Device Type: Switch - 48 Ports - L3
  • Enclosure Type: Rack-mountable 1u
  • Subtype: 25 Gigabit Ethernet
  • Ports: 48 X 1/10/25 Gigabit Sfp+ + 6 X 40/100 Gigabit Qsfp+
  • Performance: Bandwidth: 3.6 Tbps ¦ Active Span Sessions: 4
  • Capacity: Multiple Spanning Tree Protocol Instances: 64 ¦ Hsrp Groups: 490 ¦ Per Vlan Rapid Spanning Tree Instances: 4000 ¦ Maximum Number Of Links In A Port Channel: 32 ¦ Maximum Number Of Port Channels: 512 ¦ Ecmp Paths: 64 ¦ Virtual Routing And Forwarding (vrf) Instances: 1000 ¦ Vlans Supported: 4096 ¦ Acl Entries (egress): 2000 ¦ Acl Entries (ingress): 4000 ¦ Igmp Snooping Groups: 8000 ¦ Multicast Routes: 8000
  • Mac Address Table Size: 512k Entries
  • Routing Protocol: Ospf, Rip, Rip-2, Bgp, Eigrp, Hsrp, Pim-sm, Msdp, Ecmp, Mpls
  • Features: Layer 3 Switching, High Availability, Hot Swappable 4 Fans, Virtual Portchannel (vpc) Technology, In-service Software Upgrade (issu), Npv Gateway Mode, Virtual Extensible Lan (vxlan), Source-specific Multicast (ssm), Ethernet Virtual Private Network (evpn), 40mb System Buffer
  • Ram: 16 Gb
  • Built-in Devices: 64 Gb Ssd

    Expansion / Connectivity:
    interfaces:
  • 48 X 1/10/25gbit Lan Sfp+ Downlink
  • 6 X 100gbit/40gbit Lan Qsfp28 Uplink
  • 1 X Management Rj-45
  • 1 X Management Sfp+
  • 1 X Usb
  • 1 X Serial (rs-232)

    Power:
  • Power Device: Internal Power Supply (not Installed) - Hot-plug
  • Max Supported Quantity: 2
  • Power Redundancy: Optional
  • Power Redundancy Scheme: N+1

    Condition : Refurbished.
    Availability: In Stock.
    Warranty : 90 Days
  • More Information
    Capacity 48 PORT
    Condition Refurbished
    Manufacturer CISCO
