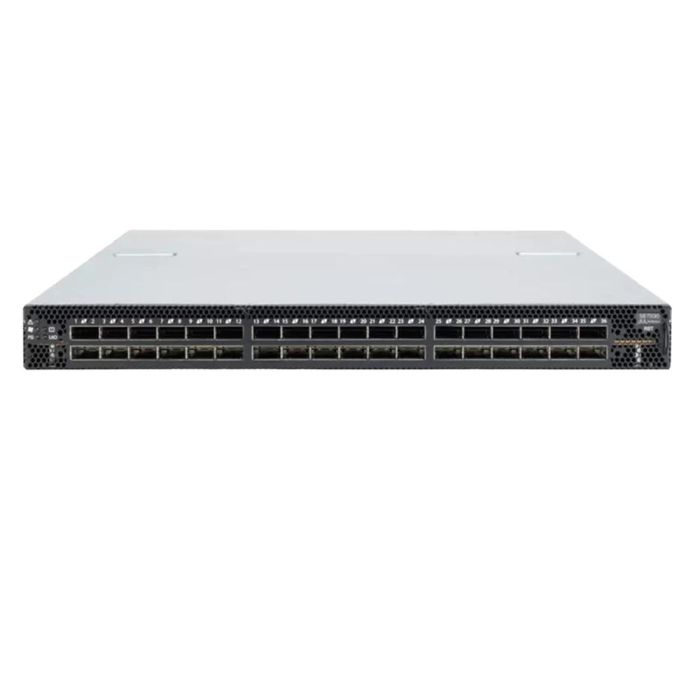

Mellanox MSB7800-ES2F Switch-IB 2 based 36-port QSFP28 EDR 1U Managed InfiniBand switch system with a non-blocking switching capacity of 7.2Tb/s. 2PS, Standard depth P2C Airflow
Part Number:
MSB7800-ES2F
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview 19 Rack Mountable 1u Chassis
36 Qsfp28 Non-blocking Ports With Aggregate Data Throughput Up To 7.2tb/s (edr)
Switch Specifications
Compliant With Ibta 1.21 And 1.3
9 Virtual Lanes: 8 Data + 1 Management
8 Data + 1 Management
256 To 4kbyte Mtu
Adaptive Routing
Vl2vl Mapping
4x48k Entry Linear Forwarding Database
Management Ports
10/100/1000mb/s Ethernet Ports
Rs232 Port Over Db9
Usb Port
Dhcp
Familiar Industry Standard Cli
Management Over Ipv6
Management Ip
Snmp V1, V2, V3
Web Ui
Fabric Management
On-board Subnet Manager Supporting Fabrics Of Up To 2k Nodes
Unified Fabric Manager (ufm) Agent
Connectors And Cabling
Qsfp28 Connectors
Passive Copper Or Active Fiber Cables
Optical Modules
Indicators
Per Port Status Led Link, Activity
System Status Leds: System, Fans, Power Supplies
Port Error Led
Unit Id Led
Physical Characteristics
Dimensions: 1.7 (43.6 Mm) H X 16.85 (428 Mm) W X 27 (685.8 Mm) D
Weight: 11 Kg (24.2 Lb)
Power Supply
Dual Redundant Slots
Hot Plug Operation
Input Range: 100-127 Vac, 200-240 Vac
Frequency: 50-60 Hz, Single Phase Ac, 4.5a, 2.9a
Cooling
Front-to-rear Or Rear-to-front Cooling Option
Hot-swappable Fan Unit
Power Consumption Typical Power With Passive Cables
(atis): 136w
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
MELLANOX MSB7800-ES2F Switch-ib 2 Based 36-port Qsfp28 Edr 1u Managed Infiniband Switch System With A Non-blocking Switching Capacity Of 7.2tb/s. 2ps, Standard Depth P2c Airflow.
Features:
MELLANOX Sb7800
Switch Specifications
Management Ports
Fabric Management
Connectors And Cabling
Indicators
Physical Characteristics
Power Supply
Cooling
Power Consumption Typical Power With Passive Cables
(atis): 136w
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 36 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | MELLANOX |
