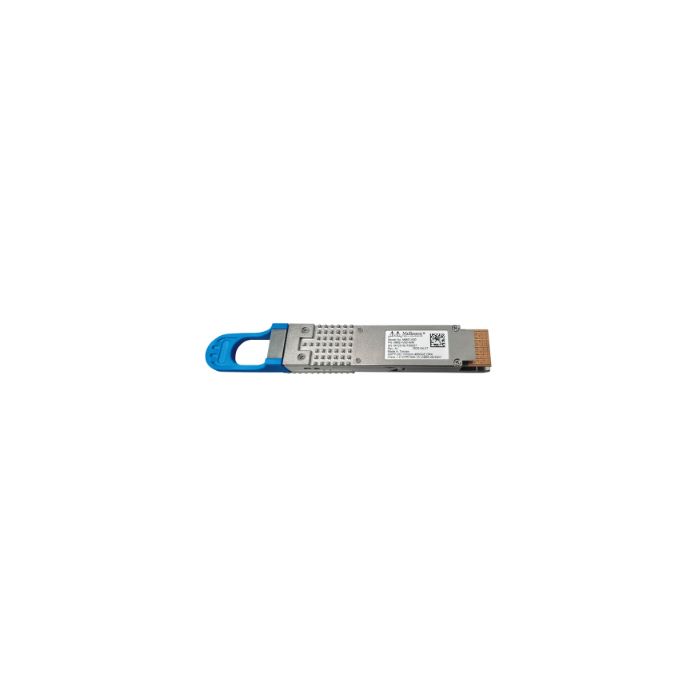

Nvidia MMS1V00-WM 400GbE QSFP-DD DR4 1310nm Optical Transceiver
Part Number:
MMS1V00-WM
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview 400gbase-dr4 Optical Interface
400gaui-8 Electrical Interface
– Qsfp-dd Msa Hw Rev 5.0, Type 2 Housing With Mpo-12 Connector Compliant
– Qsfp-dd Cmis Rev 4.0 Compliant
– Complies With Eu Directive 2011/65/eu (rohs Compliant)
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
NVIDIA MMS1V00-WM 400gbe Qsfp-dd Dr4 1310nm Optical Transceiver
Overview: Mellanox MMS1V00-WM Transceiver Is A Single-mode, 4-channel (dr4), Qsfp-dd Optical Transceiver Designed For 400 Gigabit Ethernet (gbe) Links On Up To 500m Of Single-mode Fiber.
MMS1V00-WM Converts 8 Input Channels Of 50gb/s Pam4 Electrical Data To 4 Channels Of 100gb/s Pam4 Optical Signals, Using A Nominal Wavelength Of 1310nm, For 400gb/s Optical Transmission.
The Transceiver Has A Standard Qsfp-dd Connector On The Electrical Side Towards The Host System. The Optical Interface Is Composed Of Four Optical Channels/fibers In Each Direction, Intended For A Parallel Single-mode Optical Cable Via A Standard Mpo Connector.
Key Features:
– Two-wire Serial Interface With Digital Diagnostic Monitoring
– Operating Case Temperature 0-70°c
– Maximum Power Consumption 12w
– Compliant With Ieee 802.3bs-2017 Standard:
– Qsfp-dd Msa Hw Rev 5.0, Type 2 Housing With Mpo-12 Connector Compliant
– Qsfp-dd Cmis Rev 4.0 Compliant
– Complies With Eu Directive 2011/65/eu (rohs Compliant)
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 400 GIGABIT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | NVIDIA |
