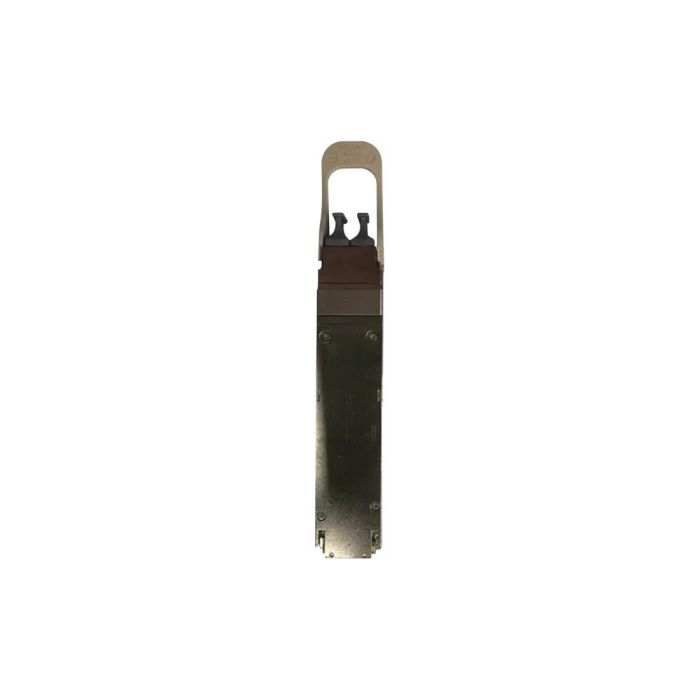

Nvidia MMA4Z00-NS-FLT Twin Port 800Gb/s OSFP SR8 Multimode Transceiver 800Gbps 2xNDR 2xMPO 850nm up to 50m Flat Top
Part Number:
MMA4Z00-NS-FLT
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Infiniband And Ethernet
800g Sr8 Multimode Transceiver
8-channels Of 100g-pam4 Electrical Modulation
Two Ports Of 4-channel 100g-pam4 Optical Modulation
Supports Two Straight 400gb/s Or Two 1:2 Splitter Fiber Cables For 200gb/s
Finned-top Osfp For Air-cooled Switches
Flat-top Osfp For Dgx-h100 Or Liquid-cooled
850nm Vcsel
Maximum Reach:
- 30m Using Om3 Fiber
- 50m Using Om4 Fiber
Two Mpo-12/apc Optical Connectors
17 Watts Max Power
1.5 Watt Low-power Sleep Mode
Single 3.3v Power Supply
Class 1 Laser Safety
Hot Pluggable, Rohs Compliant
Osfpmsa.org Compliant
Cmis 4.0 Compliant
Case Temperature Range 0°c To +70°c
Applications Used In Quantum-2 Air-cooled Switches, Liquid-cooled And Dgx-h100 Systems To Switches, Connectx-7, And Bluefield-3 Dpus.
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
NVIDIA MMA4Z00-NS-FLT Twin Port 800gb/s Osfp Sr8 Multimode Transceiver 800gbps 2xndr 2xmpo 850nm Up To 50m Flat Top
Overview The Twin-port Transceiver Is A Key Innovation For Expanding The 400g Ndr Infiniband Quantum-2 And 400gbe Spectrum-4 Ethernet (400g Ib/en) Switch Capabilities. The Line Rate Is 400gb/s For Both 400gbe Ethernet And Ndr Infiniband Based On The 100g-pam4 Modulation. The Switches Use Twin
port Osfp Cages Supporting Two Transceiver Engines In A Single Osfp Form-factor Plug Creating 800gb/s Electrical To The Switch And 2x400g Optics Using Two Mpo/-12/apc Optical Connectors. Both Switches Use The Same Twin Port, 2x400g Osfp Plugs For Transceivers, Copper Dacs And Accs, And Are Only Used In Quantum-2 And Spectrum-4 Osfp Air-cooled Switches.
Twin-port Devices Enable Several Unique Configurations To Connect Switches, Adapters, And Dpus. Switches Maintain Separate Protocols. The Mma4z00-ns Transceiver Includes Both Infiniband And Ethernet Protocols Which Is Activated Depending On The Switch Protocol The Transceiver Used.
Key Features
- 30m Using Om3 Fiber
- 50m Using Om4 Fiber
Applications Used In Quantum-2 Air-cooled Switches, Liquid-cooled And Dgx-h100 Systems To Switches, Connectx-7, And Bluefield-3 Dpus.
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 800 GIGABIT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | NVIDIA |
