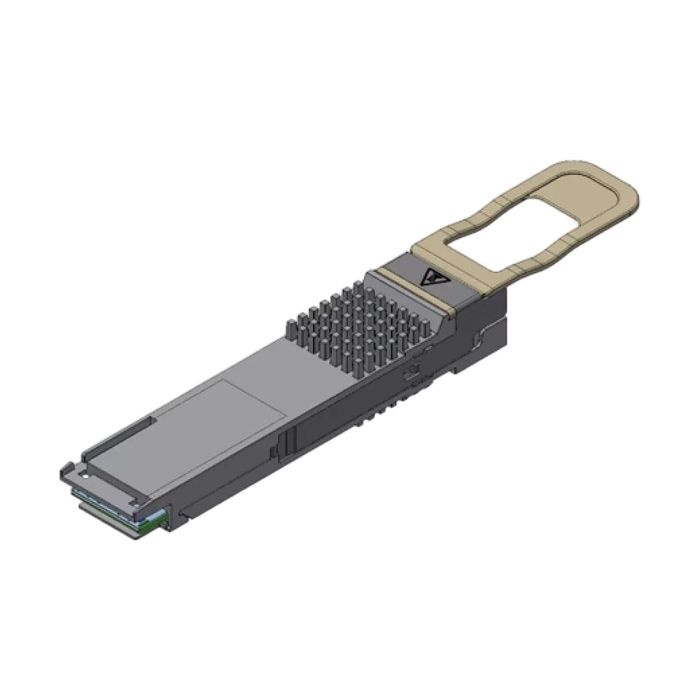

NVIDIA MMA1Z00-NS400 Single Port Transceiver 400Gbps NDR QSFP112 MPO 1310nm SMF Up to 100m Flat Top

NVIDIA MMA1Z00-NS400 Single Port Transceiver 400gbps Ndr Qsfp112 Mpo 1310nm Smf Up To 100m Flat Top

Overview The NVIDIA MMA1Z00-NS400 Is An Infiniband And Ethernet 400gb/s, Single-port, Qsfp112, Sr4 Multimode Parallel Transceiver Using A Single, 4-channel Mpo-12/apc Optical Connector. The Short Reach 4-channel (sr4) Design Uses 100g-pam4 Modulation And Has A Maximum Fiber Reach Of 50-meters Using Om4 Multimode Fiber And Assumes Two Optical Patch Panels In The Link. It Has Identical Design And Internals As The Osfp Version, Only With Different Connector Shells.

the Transceiver Firmware Supports Both Infiniband And Ethernet And Is Automatically Enabled Depending On The Protocol Of The Switch Attached To. The Qsfp112 Shell Has A Flat-top And Utilizes The Riding Heat Sink (cooling Fins) On The Connectx-7 Or Bluefield-3 Connector Cage. The Small Bumps Near The Pull Tab Provide Additional Cooling And Remain Outside The Host Connector Cage.

when Linked To 1:2 Splitter Fiber Cable, The Split End Has Only 2 Channels And Will Activate Only 2 Channels In The 400g Transceiver, Automatically Creating A 200g Speed And Reducing Power.

multimode Optics Is Denoted By A Tan-colored Pull Tab And Aqua-colored Optical Fiber. Green Plastic Shell On The Mpo-12/apc Optical Connector Denotes Angled Polish Connector (apc) And Is Not Compatible With The Aqua Colored Ultra-flat Polished Connectors (UPC).

NVIDIAS Single-port And Twin-port Transceiver Combinations Guarantee Optimal Operation In NVIDIA End-to-end Infiniband Systems And Are Rigorously Production Tested To Ensure The Best Out-of-the-box Installation Experience, Performance, And Durability.

Key Features
