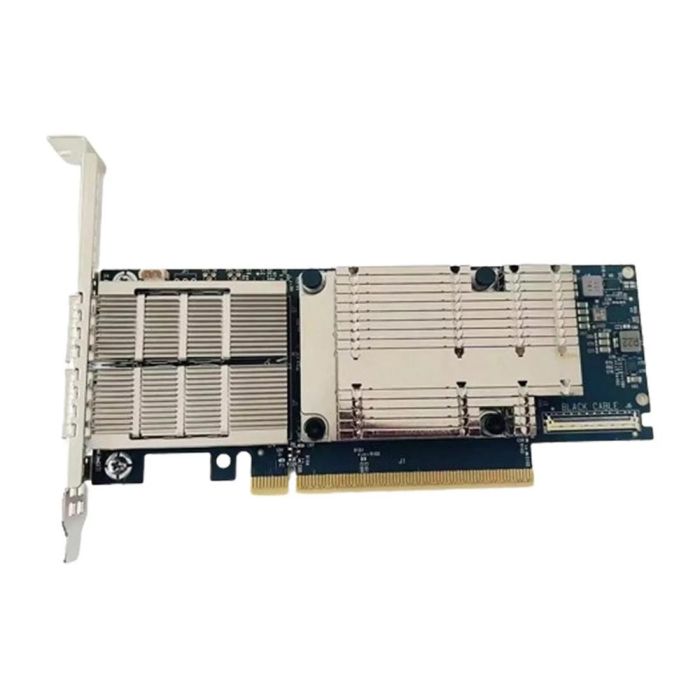

Nvidia MCX755106AS-HEAT ConnectX-7 HHHL Adapter Card, 200GbE (Default Mode) / NDR200 IB Dual-Port QSFP112 PCIe 5.0 x16 with x16 PCIe Extension Option Crypto Disabled Secure Boot Enabled Tall Bracket

NVIDIA MCX755106AS-HEAT Connectx-7 Hhhl Adapter Card, 200gbe (default Mode) / Ndr200 Ib Dual-port Qsfp112 Pcie 5.0 X16 With X16 Pcie Extension Option Crypto Disabled Secure Boot Enabled

Specifications

Physical

Adapter Card Size Pcie Half Height, Half Length 2.71 In. X 6.6 In. (68.90mm X 167.65 Mm)

Auxiliary 5.09 In. X 2.32 In. (129.30mm X 59.00mm) Two Cabline Ca-ii Plus Harnesses (white And Black).

Interfaces

Pci Express Interface
- Gen 5.0/4.0: Serdes @ 16/32gt/s, X16 Lanes (4.0 And 3.0 Compatible)
- (optional) Additional Pcie X16 Gen 4.0 @ Serdes 18gt/s Through The Pcie Auxiliary Passive Card And Cabline Sa-ii Plus Harnesses

Networking Ports Dual Qsfp112 Infiniband And Ethernet

Data Rate

Infiniband Ndr200/hdr/hdr100/edr/fdr/sdr

Ethernet (default Mode) 200/100/50/25/10 Gb/s

Protocol Support

Infiniband Ibta V1.5a

Auto-negotiation Ndr200 (2 Lanes X 100gb/s Per Lane) Port, Hdr (50gb/s Per Lane) Port Hdr100 (2 Lane X 50gb/s Per Lane) Edr (25gb/s Per Lane) Port, Fdr (14.0625gb/s Per Lane) 1x/2x/4x Sdr (2.5gb/s Per Lane)

Ethernet Protocols 200gaui-2 C2m, 200gaui-4 C2m, 200gbase-cr4, 100gaui-2 C2m 100gaui-1 C2m, 100gbase-cr4 100gbase-cr2 100gbase-cr1 50gaui-2 C2m 50gaui-1 C2m 50gbase-cr, 50gbase-r2 40gbase-cr4, 40gbase-r2 25gbase-r 10gbase-r 10gbase-
cx4 1000base-cx Caui-4 C2m 25gaui C2m Xlaui C2m Xlppi Sfi

Capabilities Secure Boot Enabled, Crypto Disabled

Electrical And Thermal Specifications

Voltage 12v, 3.3vaux

Maximum Current 100ma

Typical Power With Passive Cables In Pcie Gen 5.0 X16 24.9w

Environmental

Temperature
- Operational: 0°c To 55°c
- Non-operational: -40°c To 70°c

Humidity
- Operational: 10% To 85%
- Non-operational: 10% To 90%

Rohs Rohs Compliant

Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
