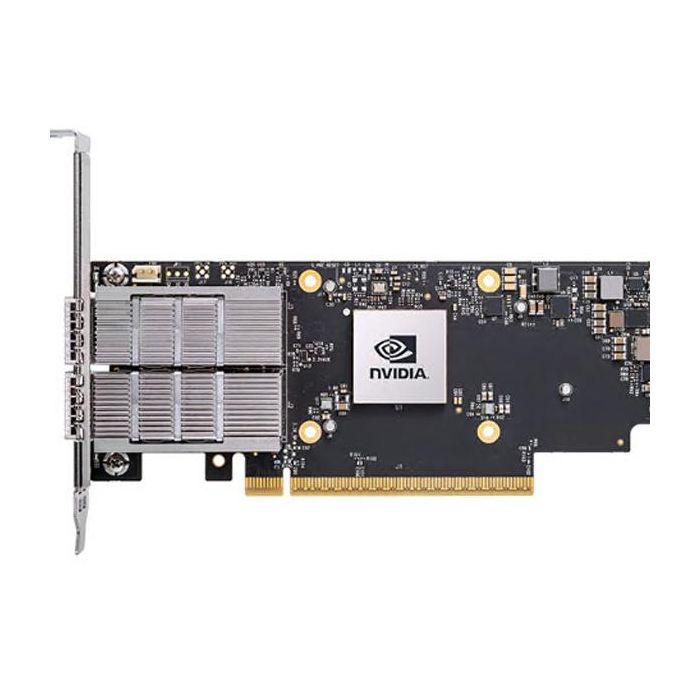

Nvidia MCX713106AS-CEAT ConnectX-7 Ethernet Adapter Card 100GbE Dual-Port QSFP PCIe 5.0 x16 Secure Boot No Crypto Tall Bracket

NVIDIA MCX713106AS-CEAT Connectx-7 Ethernet Adapter Card 100gbe Dual-port Qsfp Pcie 5.0 X16 Secure Boot No Crypto

Specifications

Physical

Adapter Card Size Card Size: Pcie Half Height, Half Length 2.71 In. X 6.6 In. (68.90mm X 167.65 Mm)

Interfaces

Pci Express Interface Pci Express Gen 4.0/5.0: Serdes @ 16/32gt/s, X16 Lanes (4.0 And 3.0 Compatible)

Networking Ports Networking Ports: Dual-port Qsfp112 Ethernet (copper And Optical)

Capabilities Secure Boot Enabled, Crypto Disabled

Data Rate

Ethernet (default Mode) 100/50/40/25/10/1gbe

Protocol Support

Ethernet Protocols Ethernet Protocols: 100gaui-2 C2m, 100gaui-1 C2m, 100gbase-cr4, 100gbase-cr2, 100gbase-cr1, 50gaui-2 C2m, 50gaui-1 C2m, 50gbase-cr, 50gbase-r2 , 40gbase-cr4, 40gbase-r2, 25gbase-r, 10gbase-r, 10gbase-cx4, 1000base-cx, Caui-4 C2m, 25gaui C2m, Xlaui C2m , Xlppi, Sf


Electrical And Thermal Specifications

Voltage 12v, 3.3vaux

Maximum Current 100ma

Typical Power With Passive Cables In Pcie Gen 5.0 X16 16.8w

Environmental

Temperature
- Operational: 0°c To 55°c
- Non-operational: -40°c To 70°c

Humidity
- Operational: 10% To 85%
- Non-operational: 10% To 90%

Rohs Rohs Compliant

Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
