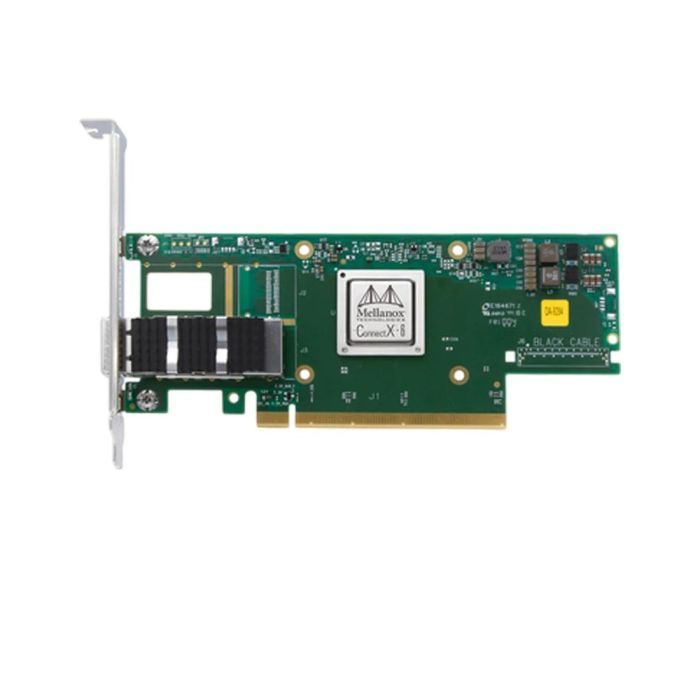

Mellanox MCX653105A-ECAT ConnectX-6 InfiniBand/Ethernet Adapter Card 100Gb/s (HDR100 EDR IB and 100GbE) Single-Port QSFP56 PCIe3.0/4.0 x16 Tall Bracket F/s
Part Number:
MCX653105A-ECAT
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Adapter Card Size: 6.6 In. X 2.71 In. (167.65mm X 68.90mm)
Connector: Single Qsfp56 Infiniband And Ethernet (copper And Optical)
Protocol Support
Infiniband: Ibta V1.4
Auto-negotiation: 1x/2x/4x Sdr (2.5gb/s Per Lane), Ddr (5gb/s Per Lane), Qdr (10gb/s Per Lane), Fdr10 (10.3125gb/s Per Lane), Fdr (14.0625gb/s Per Lane), Edr (25gb/s Per Lane) Port, Hdr100 (2 Lane X 50gb/s Per Lane)
Ethernet: 100gbase-cr4, 100gbase-cr2, 100gbase-kr4, 100gbase-sr4, 50gbase-r2, 50gbase-r4, 40gbase-cr4, 40gbase-kr4, 40gbase-sr4, 40gbase-lr4, 40gbase-er4, 40gbase-r2, 25gbase-r, 20gbase-kr2, 10gbase-lr, 10gbase-er, 10gbase-cx4, 10gbase-cr, 10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr
Data Rate:
- Infiniband: Sdr/ddr/qdr/fdr/edr/hdr100
- Ethernet: /10/25/40/50/100 Gb/s
- Pci Express Gen3/4: Serdes 8.0gt/s/16gt/s, X16 Lanes (2.0 And 1.1 Compatible)
Power And Airflow
- Voltage: 3.3aux
- Maximum Current: 100ma
- Typical Power: Passive Cables 15.6w
- Maximum Power: Please Refer To Connectx-6 Vpi Power Specifications (requires Nvonline Login Credentials)
Maximum Power Available Through Qsfp56 Port: 5w
Airflow (lfm)/ambient Temperature
- Passive Cables: 300 Lfm / 55°c (heatsink To Port) 200 Lfm / 35°c (port To Heatsink)
- Nvidia Active 4.7w Cables: 300 Lfm / 55°c (heatsink To Port) 200 Lfm / 35°c (port To Heatsink).
Environmental
Temperature:
- Operational: 0°c To 55°c
- Non-operational: -40°c To 70°c
Humidity:
- Operational: 10% To 85% Relative Humidity
- Non-operational: 10% To 90% Relative Humidity
Altitude (operational): 3050m
Condition: New Factory Sealed.
Availability: Call.
Our Warranty: 90 Days.
MELLANOX MCX653105A-ECAT Connectx-6 Infiniband/ethernet Adapter Card 100gb/s (hdr100 Edr Ib And 100gbe) Single-port Qsfp56 Pcie3.0/4.0 X16
Specifications
Physical
Protocol Support
- Infiniband: Sdr/ddr/qdr/fdr/edr/hdr100
- Ethernet: /10/25/40/50/100 Gb/s
- Pci Express Gen3/4: Serdes 8.0gt/s/16gt/s, X16 Lanes (2.0 And 1.1 Compatible)
Power And Airflow
- Voltage: 3.3aux
- Maximum Current: 100ma
- Typical Power: Passive Cables 15.6w
- Maximum Power: Please Refer To Connectx-6 Vpi Power Specifications (requires Nvonline Login Credentials)
Maximum Power Available Through Qsfp56 Port: 5w
Airflow (lfm)/ambient Temperature
- Passive Cables: 300 Lfm / 55°c (heatsink To Port) 200 Lfm / 35°c (port To Heatsink)
- Nvidia Active 4.7w Cables: 300 Lfm / 55°c (heatsink To Port) 200 Lfm / 35°c (port To Heatsink).
Environmental
- Operational: 0°c To 55°c
- Non-operational: -40°c To 70°c
- Operational: 10% To 85% Relative Humidity
- Non-operational: 10% To 90% Relative Humidity
Altitude (operational): 3050m
Condition: New Factory Sealed.
Availability: Call.
Our Warranty: 90 Days.
| Capacity | 1 PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | MELLANOX |
