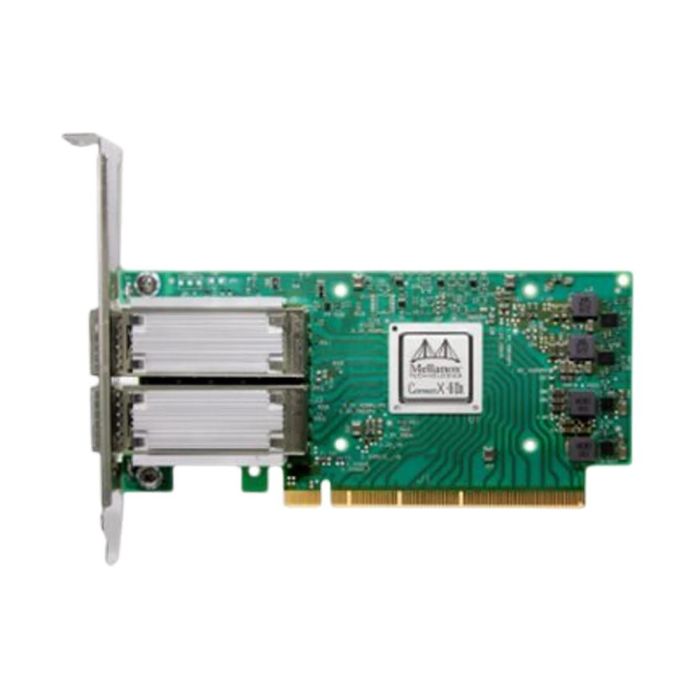

Mellanox MCX623106AN-CDAT ConnectX-6 Dx EN Adapter Card 100GbE Dual-port QSFP56 PCIe 4.0 x16 No Crypto New
Part Number:
MCX623106AN-CDAT
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Passive Cables - 550lfm (hot Aisle - Heatsink To Port)
Active 2.5w Cable - 700lfm (hot Aisle - Heatsink To Port).
Environmental
Temperature
Operational: 0°c To 55°c
Non-operational: -40°c To 70°c
Humidity
Operational: 10% To 85% Relative Humidity
Non-operational: -10% To 90% Relative Humidity
Altitude (operational) 3050m
Regulatory Rohs Compliant
Condition: New Open Box.
Availability: In Stock.
Our Warranty: 90 Days.
MELLANOX MCX623106AN-CDAT Connectx-6 Dx En Adapter Card 100gbe Dual-port Qsfp56 Pcie 4.0 X16 No Crypto
Specifications
Physical
Size: 5.59in. X 2.71in (142.00mm X 68.90mm)
Connector: Dual Qsfp56 Ethernet (copper And Optical)
Data Rate: Ethernet - 1/10/25/40/50/100 Gb/s
Protocol Support
Ethernet: 100gbase-cr2, 100gbase-cr4, 100gbase-kr4, 100gbase-sr4, 50gbase-r2, 50gbase-r4, 40gbase-cr4, 40gbase-kr4, 40gbase-sr4, 40gbase-lr4, 40gbase-er4, 40gbase-r2, 25gbase-r, 20gbase-kr2, 10gbase-lr,10gbase-er, 10gbase-cx4, 10gbase-cr, 10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr, 100gbase-cr2, 100gbase-kr2, 100gbase-sr2
Pci Express Gen 3.0/4.0 Serdes @ 16.0gt/s, 16 Lanes (2.0 And 1.1 Compatible)
Capabilities Crypto Disabled Secure Boot Enabled
Power And Airflow
Typical Power Passive Cables - 18.7w (pcie Gen 3.0) 19.52w (pcie Gen 4.0)
Maximum Power Passive Cables - 25.28w (pcie Gen 3.0) 26.64w (pcie Gen 4.0)
Maximum Power Available Through Qsfp56 Port 5w (each Port)
Voltage: 3.3aux
Maximum Current: 100ma
Airflow Requirements
Environmental
Temperature
Humidity
Altitude (operational) 3050m
Regulatory Rohs Compliant
Condition: New Open Box.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 2 PORT |
|---|---|
| Condition | New |
| Manufacturer | MELLANOX |
