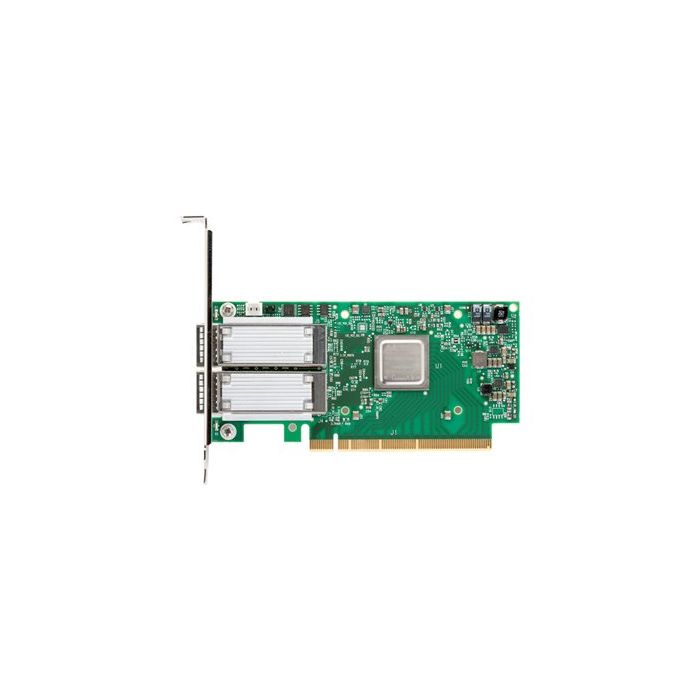

Mellanox MCX556A-EDAT ConnectX-5 EX VPI Adapter Card, EDR IB (100Gb/s) and 100GbE, Dual-Port QSFP28 PCIe4.0 x16 F/s
Part Number:
MCX556A-EDAT
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Infiniband: Sdr/ddr/qdr/fdr/edr
Ethernet: 1/10/25/40/50/100 Gb/s
Pci Express Gen4: Serdes @ 16.0gt/s, 16 Lanes (2.0 And 1.1 Compatible)
Voltage: 12v
Power And Cable:
Typical Power - Passive Cables- 19.3w
Maximum Power - Passive Cables- 23.4w
Maximum Power - 1.5w Active Cables- 26.8w
Maximum Power - 2.5w Active Cables- 29.0w
Maximum Power Available Through Qsfp28 Port: 5w
Environmental
Temperature
Operational: 0°c To 55°c
Non-operational: -40°c To 70°c
Humidity
Operational: 10% To 85% Relative Humidity
Non-operational: 10% To 90% Relative Humidity
Altitude (operational) 3050m
Rohs Rohs-r6
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days
MELLANOX MCX556A-EDAT Connectx-5 Ex Vpi Adapter Card, Edr Ib (100gb/s) And 100gbe, Dual-port Qsfp28, Pcie4.0 X16
Main Specifications
Physical:
Size: 2.71 In. X 5.6 In. (68.90mm X 142.24 Mm) – Low Profile
Connector: Dual Qsfp28 Infiniband And Ethernet (copper And Optical)
Protocol Support:
Infiniband: Ibta V1.3a
Auto-negotiation: 1x/2x/4x Sdr (2.5gb/s Per Lane), Ddr (5gb/s Per Lane), Qdr (10gb/s Per Lane), Fdr10 (10.3125gb/s Per Lane), Fdr (14.0625gb/s Per Lane), Edr (25gb/s Per Lane) Port
Ethernet: 100gbase-cr4, 100gbase-kr4, 100gbase-sr4, 50gbase-r2, 50gbase-r4, 40gbase-cr4, 40gbase-kr4, 40gbase-sr4, 40gbase-lr4, 40gbase-er4, 40gbase-r2, 25gbase-r, 20gbase-kr2, 10gbase-lr, 10gbase-er, 10gbase-cx4, 10gbase-cr, 10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr
Data Rate:
Pci Express Gen4: Serdes @ 16.0gt/s, 16 Lanes (2.0 And 1.1 Compatible)
Voltage: 12v
Power And Cable:
Maximum Power Available Through Qsfp28 Port: 5w
Environmental
Temperature
Humidity
Altitude (operational) 3050m
Rohs Rohs-r6
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days
| Capacity | 100 GIGABIT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | MELLANOX |
