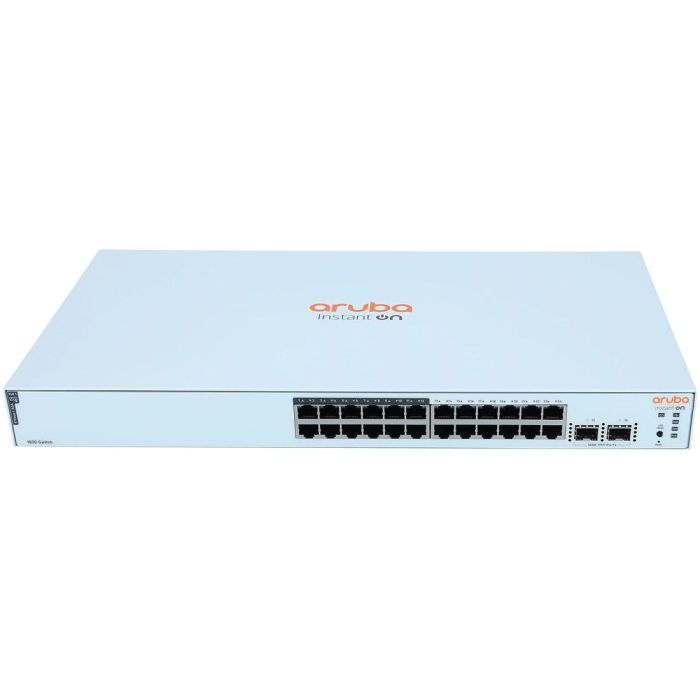

HPE JL813-61001 Aruba Instant on 1830 24G 12p Cl4 PoE 2SFP 195W Switch
Part Number:
JL813-61001
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 24 Ports - Smart
Enclosure Type : Desktop, Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 12 X 10/100/1000 + 12 X 10/100/1000 (poe+) + 2 X Gigabit Sfp
Power Over Ethernet (poe) : Poe+
Poe Budget : 195 W
Performance : Latency (100 Mbps): 5.2 Μs ¦ Latency (1 Gbps): 2.8 Μs ¦ Throughput: 38.68 Mpps ¦ Switching Capacity: 52 Gbps
Mac Address Table Size : 16000 Entries
Jumbo Frame Support : 9216 Bytes
Routing Protocol : Igmpv2, Igmp
Remote Management Protocol : Snmp 1, Snmp 2c, Http, Https, Tftp, Scp, Icmp
Encryption Algorithm : Ssl
Features : Flow Control, Auto-sensing Per Device, Auto-negotiation, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, Port Mirroring, Firmware Upgradable, Sntp Support, Wall Mountable, Spanning Tree Protocol (stp) Support, Event Log, Quality Of Service (qos), Trusted Platform Module (tpm), Cable Diagnostics Function, Lldp Support, Dhcp Client, Class Of Service (cos), Cloud Managed, 1.5mb Packet Buffer, Secure Copy (scp), Link Aggregation, Dual Image Support, Denial Of Service (dos) Protection, Energy-efficient Ethernet (eee), Bpdu Filter, Loop Protection, Global Storm Control, Port Scheduling
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ac, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az
Processor : 1 X Arm: 800 Mhz
Ram : 512 Mb Sdram
Flash Memory : 256 Mb
Status Indicators : Port Status, Port Duplex Mode, Link/activity, Speed
Expansion / Connectivity :
Interfaces :
12 X 1000base-t Rj-45
2 X Gigabit Lan Sfp
12 X 1000base-t Rj-45 Poe+
Power :
Power Device : Internal Power Supply
Voltage Required : Ac 100-240 V (50/60 Hz)
Power Consumption Operational : 244.6 Watt
Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
HPE JL813-61001 Aruba Instant On 1830 24g 12p Class4 Poe 2sfp 195w Switch - Switch - Smart - 12 X 10/100/1000 + 12 X 10/100/1000 (poe+) + 2 X Gigabit Sfp - Desktop, Rack-mountable - Poe+ (195 W).
Key Features :
Expansion / Connectivity :
Interfaces :
Power :
Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
| Capacity | 24 PORT |
|---|---|
| Condition | New |
| Manufacturer | HPE |
