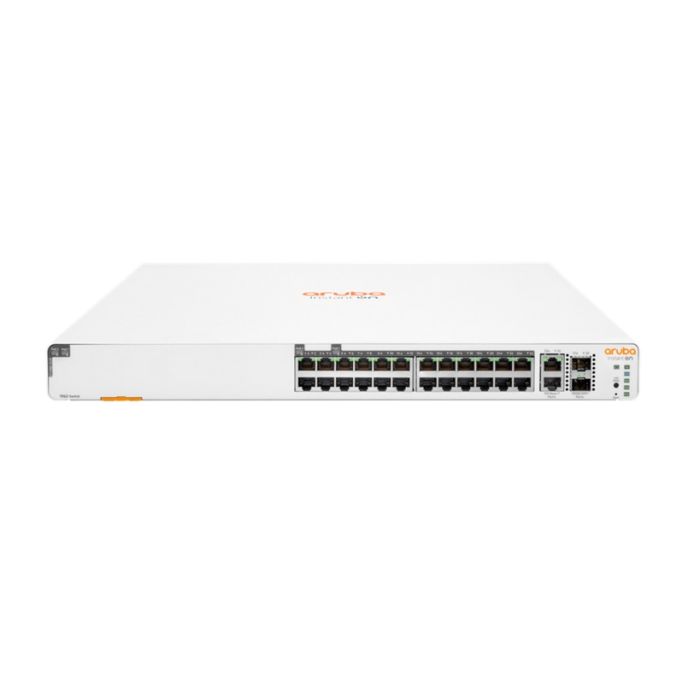

HPE JL807-61001 Aruba IO 1960 24G 20p Cl4 4p Cl6 PoE 2XGT 2SFP+ 370W Switch
Part Number:
JL807-61001
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 24 Ports - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 + 2 X 10 Gigabit Sfp+ + 2 X 100/1000/10gbase-t
Power Over Ethernet (poe) : Poe
Poe Budget : 370 W
Performance : Throughput: 95 Mpps ¦ Switching Capacity: 128 Gbps ¦ Latency (100 Mbps): 4.4 Μs ¦ Latency (1 Gbps): 2.2 Μs ¦ Latency (10 Gbps): 1.1 Μs
Capacity : Mac Address Entries: 16000 ¦ Ipv4 Routes (static): 32 ¦ Ipv6 Routes (static): 32
Mac Address Table Size : 16000 Entries
Jumbo Frame Support : 9216 Bytes
Routing Protocol : Static Ip Routing
Remote Management Protocol : Snmp 1, Snmp 3, Snmp 2c, Http, Https, Radius
Authentication Method : Radius
Features : Flow Control, Dhcp Support, Auto-negotiation, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Port Mirroring, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Spanning Tree Protocol (stp) Support, Access Control List (acl) Support, Trusted Platform Module (tpm), Link Aggregation Control Protocol (lacp), Class Of Service (cos), Energy-efficient Ethernet (eee), Bpdu Filter, Auto Voice Vlan, Media Endpoint Discovery (lldp-med)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1s, Ieee 802.1ab (lldp)
Processor : 1 X Arm: 800 Mhz
Status Indicators : Port Status, Power
Expansion / Connectivity :
Interfaces :
24 X 10/100/1000 Base-t Rj-45 370 W
2 X 10 Gigabit Ethernet / 10 Gigabit Ethernet Sfp+ Sfp+
2 X 10gbase-t Rj-45
Power :
Power Device : Internal Power Supply
Voltage Required : Ac 100-240 V (50/60 Hz)
Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
HPE JL807-61001 Aruba Instant On 1960 24g 20p Class4 4p Class6 Poe 2xgt 2sfp+ 370w Switch - Switch - Managed - 24 X 10/100/1000 + 2 X 10 Gigabit Sfp+ + 2 X 100/1000/10gbase-t - Rack-mountable - Poe (370 W)
Key Features :
Expansion / Connectivity :
Interfaces :
Power :
Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
| Capacity | 24 PORT |
|---|---|
| Condition | New |
| Manufacturer | HPE |
