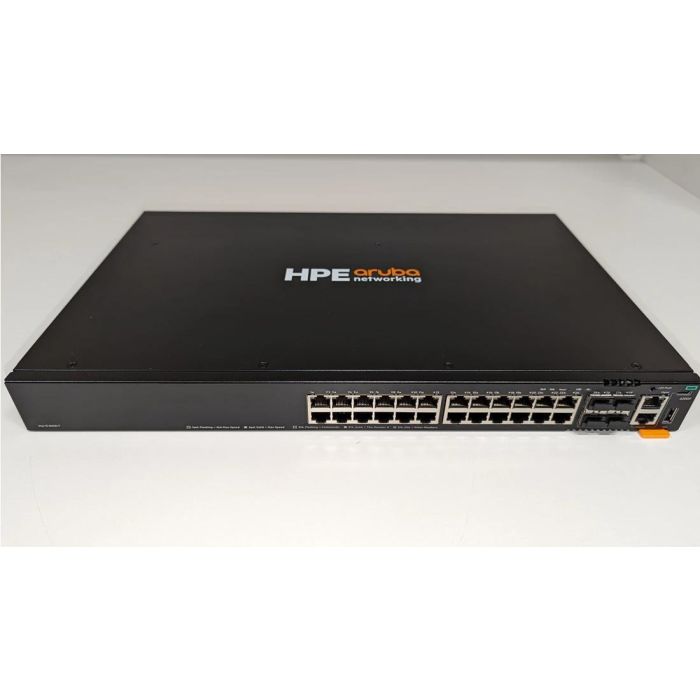

HPE JL724B Aruba Networking CX 6200F 24G 4SFP+ Switch
Part Number:
JL724B
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 24 Ports - L3 - Managed - Stackable
Enclosure Type : Front And Side To Back Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 + 4 X 100/1000/10g Sfp+
Performance : Switching Capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 2.28 Μs ¦ Latency (10 Gbps): 1.46 Μs ¦ Stacking Bandwidth: 40 Gbps
Capacity : Packet Buffer Size: 8 Mb ¦ Ipv4 Acl Entries (ingress): 5120 ¦ Ipv6 Acl Entries (ingress): 1280 ¦ Mac Acl Entries (ingress): 5120 ¦ Ipv4 Acl Entries (egress): 2048 ¦ Ipv6 Acl Entries (egress): 512 ¦ Mac Acl Entries (egress): 2048 ¦ Ipv4 Host Table Capacity: 8192 ¦ Ipv6 Host Table Capacity: 8192 ¦ Ipv4 Routes (unicast): 2048 ¦ Ipv6 Routes (unicast): 1024 ¦ Igmp Groups: 1024 ¦ Mld Groups: 1024
Mac Address Table Size : 32768 Entries
Jumbo Frame Support : 9220 Bytes
Max Units In A Stack : 8
Routing Protocol : Rip-2, Igmpv2, Igmp, Ospfv2, Igmpv3, Ospfv3, Mldv2, Mld
Remote Management Protocol : Rmon, Cli, Mib
Encryption Algorithm : Ssl, Fips 140-2
Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features : Virtual Route Redundancy Protocol (vrrp) Support, Uni-directional Link Detection (udld), Deficit Weighted Round Robin (dwrr), Class Of Service (cos), Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Rapid Pvst+ (rpvst+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (utm), Egress Queue Shaping (eqs), Address Resolution Protocol
Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.1w, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.1ax
Processor : 1 X Arm Cortex-a72: 1.8 Ghz
Ram : 8 Gb Ddr4 Sdram
Flash Memory : 16 Gb
Expansion / Connectivity :
Interfaces :
24 X 10/100/1000 Base-t Rj-45
4 X 100/1000/10g Sfp+ Uplink/stacking
1 X Usb-c Console
1 X Console Rj-45
1 X Management
1 X Usb Type A Host
Power :
Power Device : Internal Power Supply
Voltage Required : Ac 100-120/200-240 V (50/60 Hz)
80 Plus Certification : 80 Plus Silver
Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
HPE JL724B Aruba Networking Cx 6200f 24g 4sfp+ Switch - Switch - Max. Stacking Distance 10 Kms - 24 Ports - Managed - Rack-mountable.
Key Features :
Expansion / Connectivity :
Interfaces :
Power :
Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
| Capacity | 24 PORT |
|---|---|
| Condition | New |
| Manufacturer | HPE |
