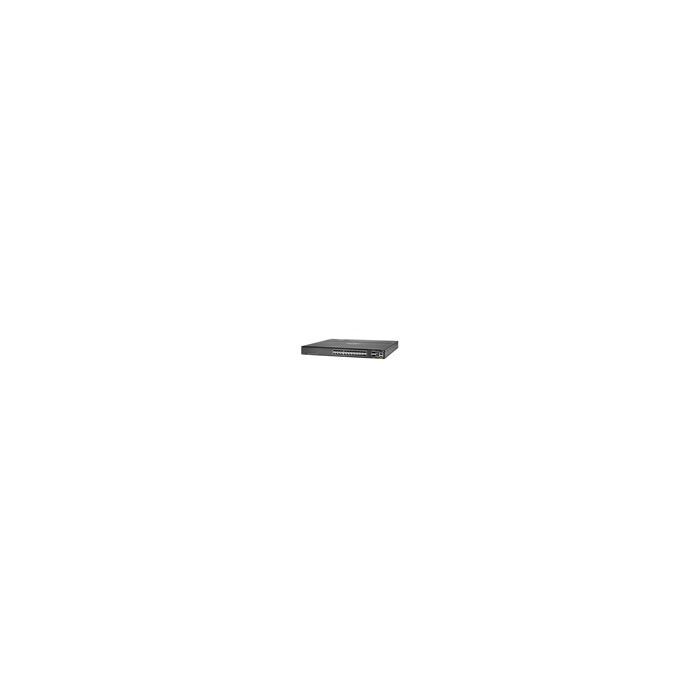

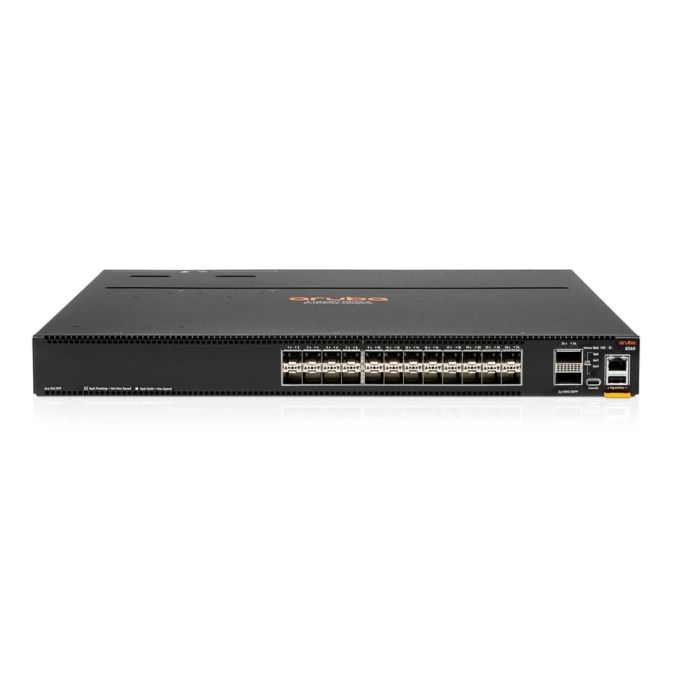

HPE JL711A Aruba 8360-24XF2C Pwr-2-Prt 3Fans 2Psu Switch
Part Number:
JL711A
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 24 Ports - L3 - Managed
Enclosure Type : Back To Front Airflow Rack-mountable 1u
Subtype : 100 Gigabit Ethernet
Ports : 24 X 1 Gigabit Sfp/ 10 Gigabit Sfp+ + 2 X 40/100 Gigabit Qsfp+ / Qsfp28
Performance : Switching Capacity: 880 Gbps , Throughput: 2 Mbps
Capacity : Virtual Interfaces (vlans) Per Port For 802.1q: 4094
Jumbo Frame Support : 9kb
Routing Protocol : Ospf, Egp, Bgp-4, Bgp, Igmpv2, Igmp, Vrrp, Pim-sm, Static Ip Routing, Igmpv3, Gre, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Policy-based Routing (pbr), Mldv2, Mld, Mstp, Rstp, Stp
Remote Management Protocol : Snmp, Rmon, Snmp 3, Snmp 2c, Tftp, Ssh, Ssh-2, Cli, Sftp, Ntp, Icmp, Ipv4, Ipv6, Rstp
Encryption Algorithm : Fips 140-2
Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features : Flow Control, Ip-routing, Dhcp Support, Arp Support, Vlan Support, Igmp Snooping, Port Mirroring, Manageable, Ipv6 Support, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Mld Snooping, Bidirectional Forwarding Detection (bfd), Uni-directional Link Detection (udld), Rapid Per-vlan Spanning Tree Plus (pvrst+), Ipv4 Support, Deficit Weighted Round Robin (dwrr), Link Aggregation Control Protocol (lacp), Data Center Bridging (dcb), Fan Tray, Redundant Hot Swappable Fans, Congestion Control, Packet Storm Protection, Strict Priority (sp), Loopback, Multicast Source Discovery Protocol (msdp), Ethernet Ring Protection Switching (erps), Macsec Support, Vxlan Tunnel Endpoints (vtep) Support, Explicit Congestion Notification (ecn), Bridge Protocol Data Unit (bpdu), Internet Control Message Protocol (icmp), 32mb Packet Buffer, Virtual Extensible Lan (vxlan), Link Aggregation, Fast Leave, User Datagram Protocol (udp), Protocol Independent Multicast (pim), Cisco Ios Ip Service-level Agreements (ipsla), Rapid Reconfiguration Of Spanning Tree (rstp), Broadcast Mode, Virtual Switch Extension (vsx), Multicast Routing
Compliant Standards : Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3ba, Ieee 802.1ax
Processor : 1: 1.8 Ghz
Ram : 16 Gb
Flash Memory : 32 Gb
Expansion / Connectivity :
Interfaces :
24 X 100/1000/2.5g/5g/10g Sfp/sfp+
2 X 100gbit/40gbit Lan Qsfp28/qsfp+
1 X Serial (console)
1 X Usb-c Console
1 X Lan Rj-45
1 X Usb Type A
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 2 (installed) / 2 (max)
Power Redundancy : Yes
Power Redundancy Scheme : N+1
Power Provided : 550 Watt
Voltage Required : Ac 120/230 V (47 - 63 Hz)
Miscellaneous :
Included Accessories : 3 Fan Trays
Mtbf : 375668 Hours
Compliant Standards : Emc, Ices-003 Class A, Rohs, Laser Class 1, Ul 60950-1, Iso 7779, Vcci Class A, En 50581:2012, Cns 13438, Csa 22.2 No. 60950-1, En 61000-3-3:2013, Emc 2014/30/eu, Iso 9296, Fcc Cfr47 Part 15 A, Cns 13438 Class A, Directive 2014/35/eu, En 55032:2015, Cispr 32 Class A, En 61000-3-2:2014 Class A, Cispr 35, En 60950-1:2006+a1:2010+a11:2009+a2:2013+a12:2011, En 60825-1:2014, En 55035:2017, Iec 62368-1: 2014, En 62368-1:2014 Second Edition, Iec 60825-1:2014 Class 1, Iec60950-1:2005, Second Edition + Am1:2009 + A2:2013
Taa Compliant : Yes
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
HPE JL711A Aruba 8360 24x 10gb Sfp Ports & 2x 100gb Qsfp Ports Switch20, 3 Power-to-port Fans And 2 Power-to-port Power Supplies Bundle Switch :
Key Features :
Expansion / Connectivity :
Interfaces :
Power :
Miscellaneous :
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
| Capacity | 24 PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | HPE |
