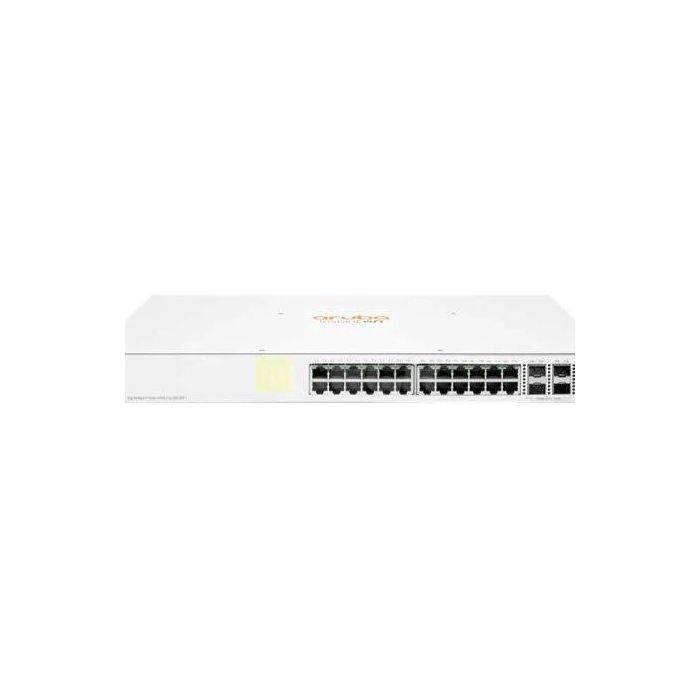

HPE JL683-61001 Aruba IOn 1930 24G 4sfp+ 195w switch
Part Number:
JL683-61001
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 28 Ports - L3 - Managed
Enclosure Type : Rack-mountable 1u
Subtype Gigabit: Ethernet
Ports : 24 X 10/100/1000 (poe) + 4 X 1 Gigabit / 10 Gigabit Sfp+
Power Over Ethernet (poe) : Poe
Poe Budget: 195 W
Performance: Switching Capacity: 128 Gbps ¶ Throughput: 95.23 Mpps ¶ Latency (1 Gbps): 2.4 Μs ¶ Latency (10 Gbps): 1.3 Μs
capacity: Link Aggregation Ports: 8 ¶ Ipv4 Routes (static): 32 ¶ Vlans Supported: 256 ¶ Access Control Entries (aces) Per Acl: 480 ¶ Packet Buffer Size: 1.5 Mb
Mac Address Table Size: 16000 Entries
Jumbo Frame Support: 9216 Bytes
Routing Protocol: Static Ip Routing
Remote Management Protocol: Snmp 1, Rmon, Snmp 3, Snmp 2c, Http, Https, Tftp, Radius
Encryption Algorithm: Ssl
Authentication Method: Radius
Features: Flow Control, Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Trusted Platform Module (tpm), Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Class Of Service (cos), Bpdu Filter, Poe Class 4
compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.2af
processor: 1 X Arm Cortex-a9: 800 Mhz
ram: 512 Mb Sdram
flash Memory: 256 Mb
status Indicators: port Status, Power, Poe
Expansion / Connectivity :
Interfaces:
24 X 10/100/1000 Base-t Rj-45 Poe - 195 W
4 X 1/10gbit Lan Sfp+
Power :
Power Device: Internal Power Supply
Voltage Required: Ac 120/230 V (50/60 Hz)
Power Consumption Operational: 234 Watt
Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
HPE JL683-61001 Aruba Instant On 1930 24g Class4 Poe 4sfp/sfp+ 195w Switch - Switch - 28 Ports - Managed - Rack-mountable :
Key Feature :
Expansion / Connectivity :
Interfaces:
Power :
Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
| Capacity | 24 PORT |
|---|---|
| Condition | New |
| Manufacturer | HPE |
