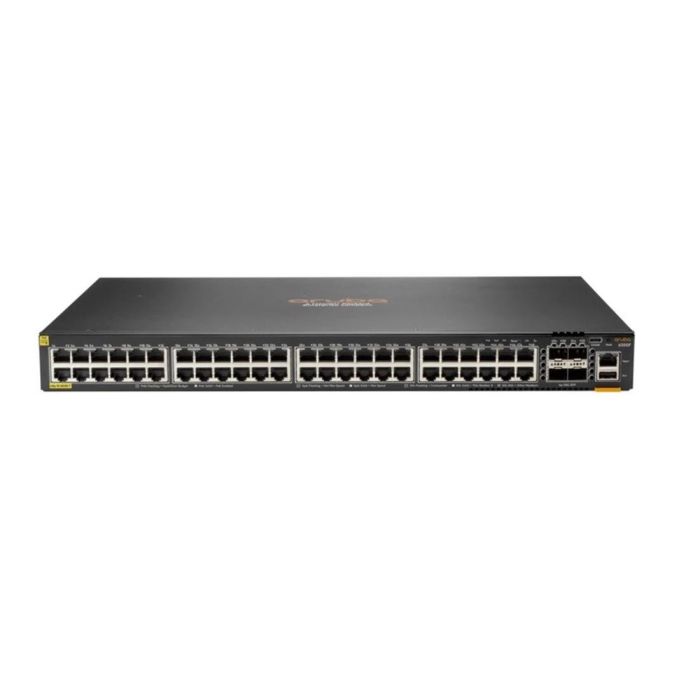

HPE JL665A Aruba 6300F 48p 1GbE Cl4 PoE and 4p SFP56 Switch RETAIL
Part Number:
JL665A
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 48 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 48 X 10/100/1000 (poe+) + 4 X 50 Gigabit Ethernet Sfp56
Power Over Ethernet (poe) : Poe+
Max Poe Power : 740w
Performance : Switching Capacity: 496 Gbps ¦ Switching Throughput: 369 Mpps ¦ 1 Gbps Average Latency (64-byte Packets): 2.28 Μs ¦ 10 Gbps Average Latency (64-byte Packets): 1.46 Μs ¦ 25 Gbps Average Latency (64-byte Packets): 1.9 Μs ¦ 50 Gbps Average Latency (64-byte Packets): 3.49 Μs ¦ Stacking Bandwidth: 200 Gbps
Capacity : Switched Virtual Interfaces (svis): 1000 ¦ Ipv4 Host Table Capacity: 32000 ¦ Ipv6 Host Table Capacity: 32000 ¦ Ipv4 Routes (unicast): 64000 ¦ Ipv6 Routes (unicast): 32000 ¦ Ipv4 Routes (multicast): 8000 ¦ Ipv6 Routes (multicast): 8000 ¦ Igmp Groups: 8000 ¦ Mld Groups: 4000 ¦ Ipv4 Acl Entries (ingress): 5000 ¦ Ipv6 Acl Entries (ingress): 1250 ¦ Mac Acl Entries (ingress): 5000 ¦ Ipv4 Acl Entries (egress): 2000 ¦ Ipv6 Acl Entries (egress): 500 ¦ Mac Acl Entries (egress): 2000
Mac Address Table Size : 32000 Entries
Jumbo Frame Support : 9198 Bytes
Routing Protocol : Ospf, Bgp-4, Bgp, Igmp, Ospfv2, Pim-dm, Igmpv3, Msdp, Mldv2, Mld, Cidr
Remote Management Protocol : Snmp 1, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Tftp, Ssh, Xrmon, Sftp
Encryption Algorithm : Ssl, Fips 140-2
Authentication Method : Secure Shell (ssh), Radius, Tacacs+
Features : Dhcp Support, Bootp Support, Arp Support, Vlan Support, Syslog Support, Port Mirroring, Diffserv Support, Ipv6 Support, Sflow, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Quality Of Service (qos), Mld Snooping, Trusted Platform Module (tpm), Front To Back Airflow, Uni-directional Link Detection (udld), Deficit Weighted Round Robin (dwrr), Lldp Support, Fan Tray, Snmp Trap, Management Information Base (mib), Virtual Routing And Forwarding (vrf), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Strict Priority (sp), Tagged Vlan, 8mb Packet Buffer, 802.1x Authentication, Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Link Aggregation, Ethernet Virtual Private Network (evpn), Network Timing Protocol (ntp), Lldp-med, Denial Of Service (dos) Protection, Rapid Reconfiguration Of Spanning Tree (rstp), Cisco Discovery Protocol (cdp), Bootstrap Router (bsr) Mechanism
Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3an, Ieee 802.3at, Ieee 802.3ba, Ieee 802.1ax, Itu-t G.8032, Ieee 802.3bj, Ieee 802.3bm, Ieee 802.3by, Ieee 802.3bz, Ieee 802.3bt, Ieee 802.3cc, Itu-t Y.1344, Ieee 802.3cd
Processor : 1 X Arm Cortex-a72: 1.8 Ghz
Ram : 8 Gb Ddr4 Sdram
Flash Memory : 32 Gb
Expansion / Connectivity :
Interfaces :
48 X 1000base-t Rj-45 Poe+ - 30 W
4 X 50gbit Lan Sfp56
1 X Console (usb) Type C
1 X Usb Type A
Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
HPE JL665A Aruba 6300f 48-port 1gbe Class 4 Poe+ 740w And 4-port Sfp56 Switch ( Internal (fixed) Powersupply (950w)) :
Key Features :
Expansion / Connectivity :
Interfaces :
Condition : New Retail Factory Sealed
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
| Capacity | 48 PORT |
|---|---|
| Condition | New |
| Manufacturer | HPE |
