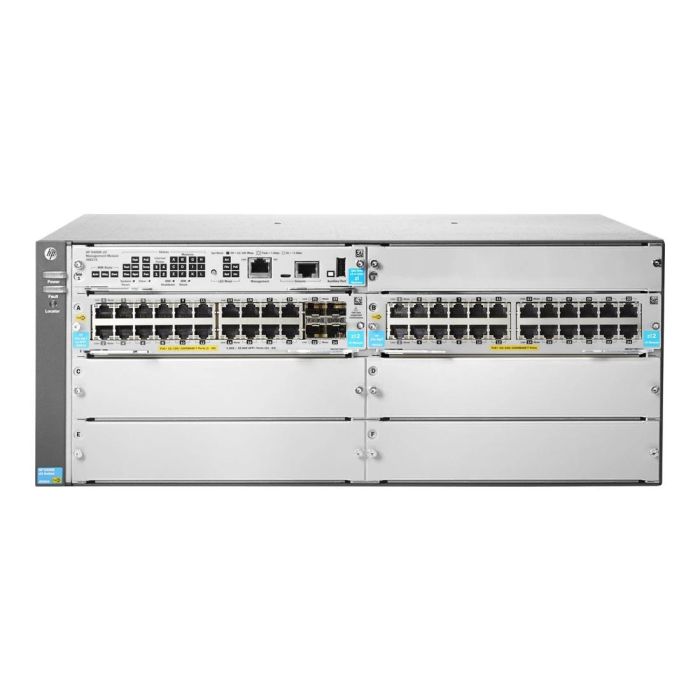

HPE JL003A Aruba 5406R 44GT PoE+ and 4-port SFP+ (No PSU) v3 zl2 Switch
Part Number:
JL003A
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 44 Ports - Managed
Enclosure Type : Rack-mountable 4u
Subtype : Gigabit Ethernet
Ports : 44 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit Sfp+
Power Over Ethernet (poe) : Poe+
Performance : Routing/switching Capacity: 960 Gbps Throughput: Up To 571.4 Mpps Switching Fabric Bandwidth: 1015 Gbps
Capacity : Ipv4 Routing Table Entries: 10000 Ipv6 Routing Table Entries: 5000
Mac Address Table Size : 64k Entries
Jumbo Frame Support : Yes
Routing Protocol : Rip-1, Rip-2, Bgp, Igmp, Vrrp, Ospfv2, Pim-sm, Static Ip Routing, Pim-dm, Igmpv3, Ospfv3, Static Ipv6 Routing, Mldv2, Mld
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Tftp, Smon, Cli, Xrmon
Encryption Algorithm : Ssl
Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2), Extensible Authentication Protocol (eap)
Features : Flow Control, Routing, Dhcp Support, Bootp Support, Arp Support, Trunking, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Diffserv Support, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Sntp Support, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Tunneling, Access Control List (acl) Support, Quality Of Service (qos), Mld Snooping, Non-stop Routing (nsr), Bandwidth Control, Stp Root Guard, Uni-directional Link Detection (udld), Rapid Per-vlan Spanning Tree Plus (pvrst+), Ipv4 Support, Dhcp Relay, Port Security, Fan Tray, Dhcp Client, Energy Efficient Ethernet, Management Information Base (mib), Dynamic Arp Protection, Dhcp Protection, Dual Firmware Images, Class Of Service (cos), Sflow V5, Garp Vlan Registration Protocol (gvrp), Type Of Service (tos), Macsec Support
Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax
Processor : 1 X Freescale P2020: 1.2 Ghz
Ram : 4 Gb Ddr3 Sdram
Flash Memory : 1 Gb
Expansion / Connectivity :
Interfaces
44 X 1000base-t Rj-45
8 X Gigabit / 10gbit Lan Sfp+
Expansion Slots
6 (total) / 4 (free) X Expansion Slot
1 (total) / 0 (free) X Sd Memory Card
Installed Modules Qty (max)
2 (installed) / 6 (max)
Power :
Power Device : Internal Power Supply (not Installed)
Installed Qty : 0 (installed) / 2 (max)
Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
HPE JL003A 5406r 44gt Poe+ And 4-port Sfp+ (no Psu) V3 Zl2 Switch - Switch - 44 Ports - Managed - Rack-mountable.
Key Features :
Expansion / Connectivity :
Interfaces
Expansion Slots
Installed Modules Qty (max)
Power :
Condition : New Cto
Availability : In Stock
Manufacturer Warranty : Limited Lifetime
Our Warranty : 90 Days
| Capacity | 44 PORT |
|---|---|
| Condition | New |
| Manufacturer | HPE |
