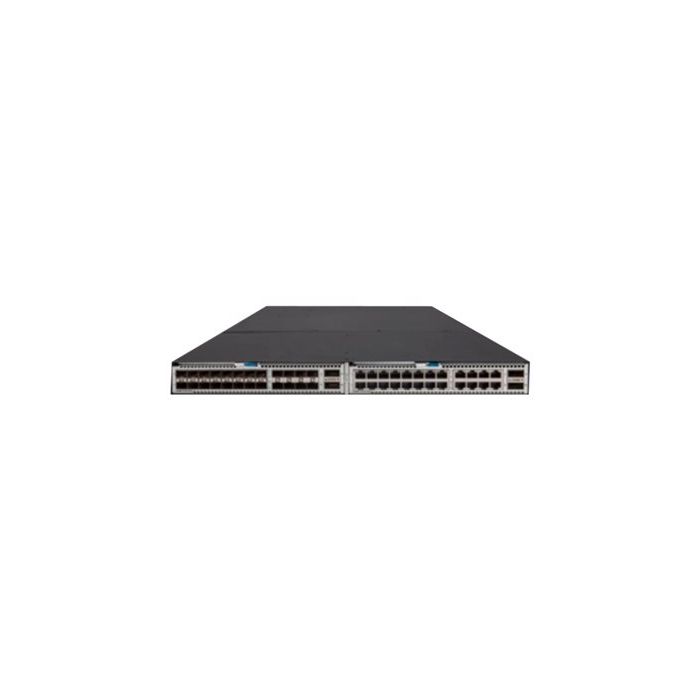

HPE JH397A FlexFabric 5940 2-slot - switch - 2 ports - managed - rack-mountable
Part Number:
JH397A
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 2 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Ports : 2 X 40 Gigabit Qsfp+
Performance : Latency (10 Gbps): < 1 Μs ¦ Throughput: 1071 Mpps ¦ Routing/switching Capacity: 1440 Gbps
Capacity : Ipv4 Routing Table Entries: 128000 ¦ Ipv6 Routing Table Entries: 64000 ¦ Mac Address Entries: 288000
Mac Address Table Size : 288k Entries
Jumbo Frame Support : Yes
Max Units In A Stack : 9
Routing Protocol : Ospf, Rip, Bgp-4, Is-is, Rip-1, Rip-2, Bgp, Igmp, Vrrp, Ospfv2, Ospfv3, Static Ipv6 Routing, Ripng, Is-isv6, Bgp-4+, Mpls, Bidirectional Forwarding Detection (bfd)
Remote Management Protocol : Snmp 1, Rmon, Telnet, Snmp 3, Snmp 2c, Ssh, Ssh-2, Cli
Authentication Method : Secure Shell (ssh), Radius, Tacacs, Tacacs+, Secure Shell V.2 (ssh2)
Features : Flow Control, Dhcp Support, Arp Support, Port Mirroring, Weighted Round Robin (wrr) Queuing, Ipv6 Support, Sntp Support, Weighted Fair Queuing (wfq), Sflow, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Data Center Bridging Exchange (dcbx) Support, Access Control List (acl) Support, Quality Of Service (qos), Committed Access Rate (car), Device Link Detection Protocol (dldp) Support, Equal-cost Multipath (ecmp), Lldp Support, Data Center Bridging (dcb), Dhcp Protection, Transparent (n_port Id Virtualization - Npiv) Mode Support, Registered State Change Notification (rscn) Support, Name Server-based Zoning, Strict Priority (sp), Edge Virtual Bridging (evb), Intelligent Resilient Framework Technology (irf), Redundant Fans, Reverse Airflow Support, Snmp Support, Cut-through, Fcoe Support, Rdma Over Converged Ethernet (roce), Virtual Ethernet Port Aggregator (vepa), In-service Software Upgrade (issu), Fcoe Initialization Protocol (fip), Ip Source Guard, Deficit Round Robin (drr), Vxlan Tunnel Endpoints (vtep) Support, Icmp Blocking
Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ad, Ieee 802.3ah, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.1ax, Ieee 802.1qaz, Ieee 802.3ag
Ram : 4 Gb Sdram
Flash Memory : 1 Gb
Expansion / Connectivity :
Interfaces : 2 X 40gbit Lan Qsfp+ ¦ 1 X Serial (console) Rj-45 ¦ 1 X Management (lan) Rj-45 ¦ 1 X Usb 2.0 ¦ 1 X Mini-usb 2.0
Expansion Slots : 2 (total) / 2 (free) X Expansion Slot
Installed Modules Qty (max): 0 (installed) / 2 (max)
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 0 (installed) / 2 (max)
Power Redundancy : Yes
Voltage Required : Ac 120/230 V (50/60 Hz)
<> Power Consumption Operational : 508 Watt
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
HPE JH397A Flexfabric 5940 2-slot - Switch - 2 Ports - Managed - Rack-mountable
Key Features :
Expansion / Connectivity :
Power :
<> Power Consumption Operational : 508 Watt
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
| Capacity | 40 GIGABIT |
|---|---|
| Condition | Refurbished |
| Manufacturer | HPE |
