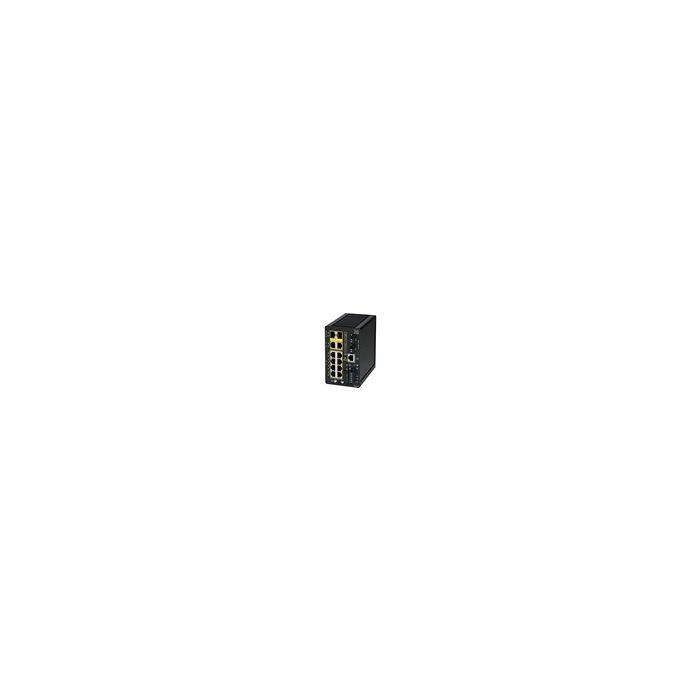

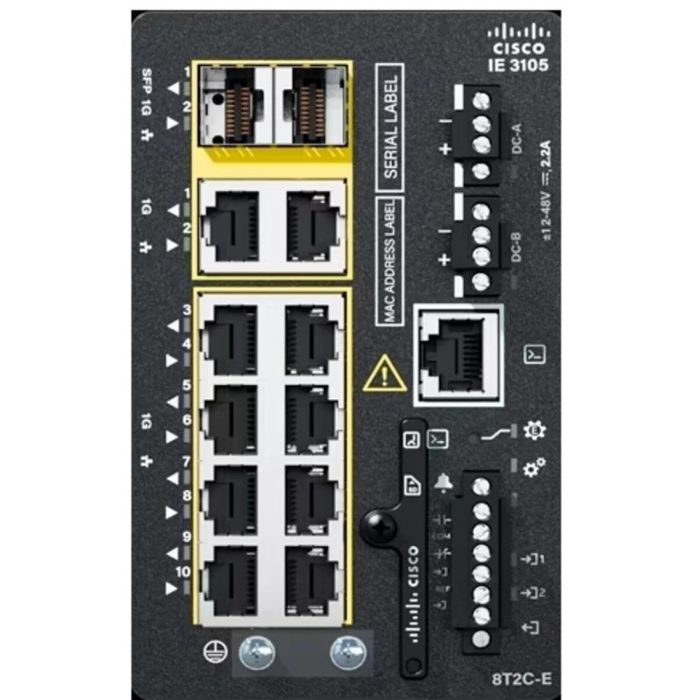

Cisco IE-3105-8T2C-E Catalyst IE3105 Rugged Switch
Part Number:
IE-3105-8T2C-E
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 10 Ports - Managed
Enclosure Type : Din Rail Mountable
Subtype : Gigabit Ethernet
Ports : 8 X 10/100/1000 + 2 X Combo Gigabit
Capacity : Queues: 8 , Igmp Groups: 512 , Vlans Supported: 256 , Indirect Ipv4 Routes: 2000 , Stp Instances: 128
Mac Address Table Size : 8000 Entries
Routing Protocol : Igmp, Igmpv2, Igmpv3, Stp, Static Ip Routing
Remote Management Protocol : Dhcp, Modbus, Http, Https, Mib, Syslog, Netconf, Restconf, Ipv4, Ipv6, Yang, Tftp, Icmp, Telnet, Snmp, Snmp 1, Snmp 2, Snmp 3, Ntp, Rmon
Authentication Method : Secure Shell (ssh), Radius, Tacacs+
Features : Mrp, Rep, Cip Support, Profinet, Fanless, Surge Protection, Shock-resistant, Vibration-proof, Ptp, Rapid Pvst+, Pvst+, Rpvst, Rspan, Span, Fspan, Storm Control, Vtp V.2, Vtp V.3, Etherchannel Support, L2tp Support, Q-in-q Tunneling, Igmp Snooping, Mld Snooping, Eem, Ipnp, Dhcpv6 Guard, Router Advertisement Guard, Neat, Dhcp Snooping, Dai, Aaa, Scp, Qos, Udp Support, Tcp Support, Bootp Support, Ftp Support, Diffserv Support, Layer 2 Switching, Nat Support
Compliant Standards : Ieee 1588v2, Ieee 802.1ab (lldp), Ieee 802.1q, Ieee 802.1s, Ieee 802.1w, Ieee 802.3ad (lacp), Ieee 802.1x, Ieee 802.1p, Ieee 802.1d, Ieee 802.3ab, Ieee 802.3ah, Ieee 802.3u, Ieee 802.3z
Ram : 4 Gb
Built-in Devices : Sd Card Reader
Expansion / Connectivity :
Interfaces :
8 X 10/100/1000 Base-t Rj-45 Downlink
2 X 1000base-t Rj-45 Uplink
2 X 100 / 1000base-x Sfp Uplink
1 X Serial (rs-232) Rj-45
1 X Micro-usb Type B
2 X Alarm Input
Expansion Slots :
1 (total) / 1 (free) X Sd Memory Card
Power :
Power Device : External Power Adapter
Max Supported Qty : 2
Power Redundancy : Optional
Power Provided : 12 - 48 V
Power Consumption Operational : 28 Watt
Condition : New Factory Sealed.
Availability : In Stock.
Serversupply Warranty : 90 Days.
CISCO IE-3105-8T2C-E Catalyst Ie3105 Rugged Series - Network Essentials - Switch - Managed - 8 X 10/100/1000 + 2 X Combo Gigabit - Din Rail Mountable.
General Information :
Expansion / Connectivity :
Interfaces :
Expansion Slots :
Power :
Condition : New Factory Sealed.
Availability : In Stock.
Serversupply Warranty : 90 Days.
| Capacity | 10 PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | CISCO |
