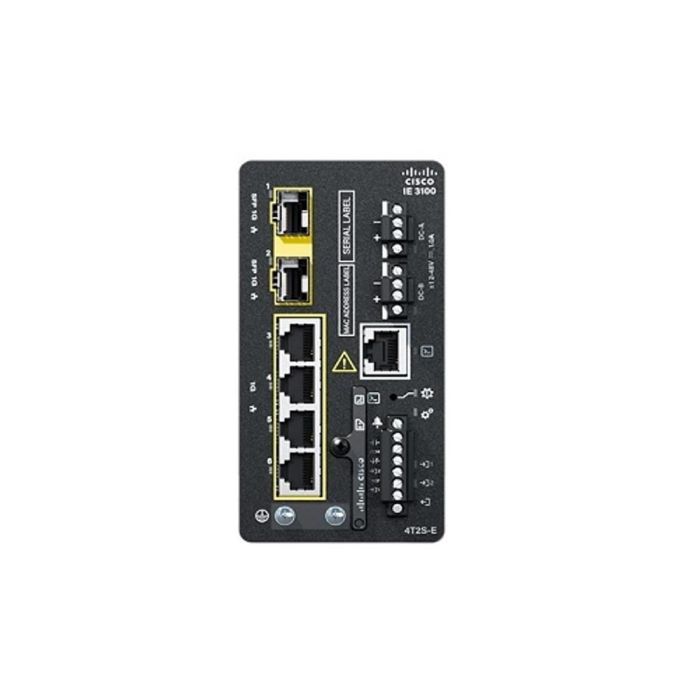

Cisco IE-3100-4T2S-E Catalyst 6-Port Switch
Part Number:
IE-3100-4T2S-E
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 6 Ports - Managed
Enclosure Type : Din Rail Mountable
Subtype : Gigabit Ethernet
Ports : 4 X 10/100/1000 + 2 X Gigabit Sfp
Capacity : Queues: 8 ¦ Igmp Groups: 512 ¦ Vlans Supported: 256 ¦ Indirect Ipv4 Routes: 2000 ¦ Stp Instances: 128
Mac Address Table Size : 8000 Entries
Routing Protocol : Igmpv2, Igmp, Static Ip Routing, Igmpv3, Stp
Remote Management Protocol : Snmp 1, Snmp 2, Snmp, Rmon, Telnet, Snmp 3, Http, Https, Tftp, Netconf, Restconf, Modbus, Ntp, Icmp, Dhcp, Ipv4, Ipv6, Yang, Syslog, Mib
Authentication Method : Secure Shell (ssh), Radius, Tacacs+
Features : Bootp Support, Igmp Snooping, Diffserv Support, Surge Protection, Dhcp Snooping, Quality Of Service (qos), Mld Snooping, Dynamic Arp Inspection (dai), Per-vlan Spanning Tree Plus (pvst+), Rapid Per-vlan Spanning Tree Plus (pvrst+), Fanless, Remote Switch Port Analyzer (rspan), Precision Time Protocol (ptp), Shock-resistant, Vibration-proof, Profinet, Ip Plug And Play (ipnp), Storm Control, Resilient Ethernet Protocol (rep), Secure Copy (scp), Authentication, Authorization And Accounting (aaa), Switched Port Analyzer (span), Embedded Event Manager (eem), Vlan Trunking Protocol (vtp) V.3, Router Advertisement Guard, Dhcpv6 Guard, Q-in-q Tunneling, L2tp Support, Vlan Trunking Protocol (vtp) V.2, Media Redundancy Protocol (mrp), Etherchannel Support, Network Edge Access Topology (neat), Cip Support, Udp Support, Tcp Support, Ftp Support, Rapid Pvst (rpvst), Flow-based Span (fspan)
Compliant Standards : Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.3ah, Ieee 802.1ab (lldp), Ieee 1588v2
Ram : 4 Gb
Built-in Devices : Sd Card Reader
Expansion / Connectivity :
Interfaces :
4 X 10/100/1000 Base-t Rj-45 Downlink
2 X 1000base-x Sfp Uplink
1 X Serial (rs-232) Rj-45
1 X Micro-usb Type B
2 X Alarm Input
Expansion Slots :
1 (total) / 1 (free) X Sd Memory Card
Power :
Power Device : Internal Power Supply
Max Supported Qty : 2
Power Redundancy : Optional
Power Provided : 12 - 48 V
Power Consumption Operational : 14 Watt
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
CISCO IE-3100-4T2S-E Catalyst Ie3100 Rugged Series - Network Essentials - Switch - 6 Ports - Managed :
Key Features :
Expansion / Connectivity :
Interfaces :
Expansion Slots :
Power :
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
| Capacity | 6 PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | CISCO |
