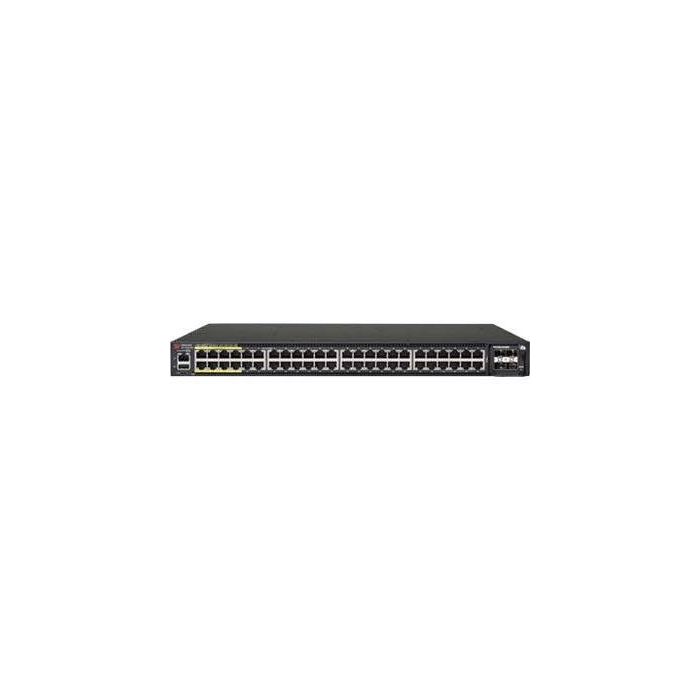

BROCADE ICX7450-48P-E 48 PORT SWITCH NETWORKING

BROCADE -ICX7450-48P-E Switch - 48 Ports - L3 - Managed -stackable
(ICX7450-48P-E).

GENERAL Information:

part Number: ICX7450-48P-E
DEVICE Type: Switch - 48 Ports - L3 - Managed - Stackable
enclosure Type: Rack-mountable - 1u
subtype: Gigabit Ethernet
ports: 40 X 10/100/1000 (poe+) + 8 X 10/100/1000 (poh) + 4 X 10 Gigabit Sfp+ + 2 X 40 Gigabit Qsfp+
power Over Ethernet: (poe)poh
performance: Switching Capacity : 336 Gbps Forwarding Performance : 250 Mpps Stacking Bandwidth : 160 Gbps
capacity: Virtual Interfaces (vlans) : 4096 Spanning Tree Protocol Instances : 254 Ipv4 Routes : 16000 Ipv6 Routes : 3000
mac Address Table Size: 32000 Entries
jumbo Frame Support: 9216 Bytes
max Units In A Stack: 12
routing Protocol: Igmpv2, Igmp, Igmpv3, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Mldv2, Mld
remote Management Protocol: Snmp 1, Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Cli
encryption Algorithm: Aes
authentication Method: Radius, Tacacs, Tacacs+, Secure Shell V.2 (ssh2), Extensible Authentication Protocol (eap)

compliant Standards:

ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az

expansion / Connectivity:

interfaces:

40 X 1000base-t - Rj-45 - Poe+ - 30 W 1 X Usb - Type A 1 X 1000base-t - Rj-45 - Management 1 X Mini-usb - Management 2 X 40gbit Lan - Qsfp+ - Uplink/stacking 8 X 1000base-t - Rj-45 - Poh - 95 W 4 X 10gbit Lan - Sfp+ - Uplink

expansion Slots:

3 (total) / 0 (free) X Expansion Slot

power:
power Device: Internal Power Supply - Hot-plug
installed Qty: 1 (installed) / 2 (max)
power Redundancy: Optional
power Redundancy Scheme: 1+1 (with Optional Power Supply)
power Provided: 1000 Watt
voltage Required: Ac 120/230 V ( 50/60 Hz )
power Consumption Operational: 106 Watt

software / System Requirements:

os Required: Ibm Aix, Sunsoft Solaris, Hp-ux, Microsoft Windows

condition : Refurbished
availability : In Stock.
our Warranty : 90 Days.
