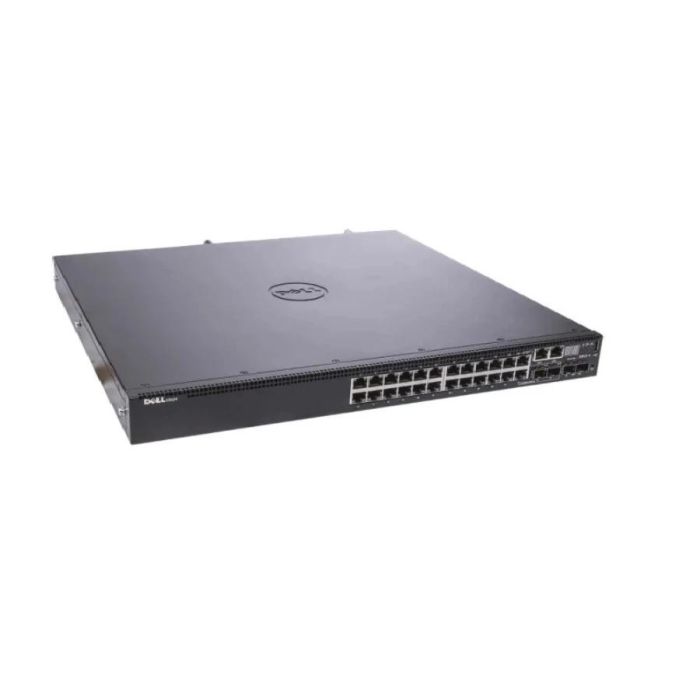

Dell GH9K5 S3124 L3 24Pt 1GbE 2Pt 10GbE Switch
Part Number:
GH9K5
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 24 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 + 2 X 10 Gigabit Sfp+ + 2 X Combo Gigabit Sfp
Performance : Switching Fabric Bandwidth: 212 Gbps ¶ Forwarding Performance: 158 Mpps
Capacity : Mac Addresses: 32000 ¶ Ipv4 Routes: 1024 ¶ Ipv6 Routes: 1024 ¶ Ipv4 Routes (dynamic): 8160 ¶ Ipv6 Routes (dynamic): 4096 ¶ Links Per Group: 16 ¶ Priority Queues Per Port: 8 ¶ Layer 2 Vlans: 4000 ¶ Mstp Instances: 64 ¶ Vrf-lite Instances: 64 ¶ Host Table Entries (ipv4): 40000 ¶ Host Table Entries (ipv6): 8000 ¶ Multicast Table Entries (ipv4): 8000
Mac Address Table Size : 32k Entries
Routing Protocol : Vrrp, Ospfv2, Igmpv3, Msdp
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Snmp 3
Authentication Method : Radius
Features : Mdi/mdi-x Switch, Port Mirroring, Front To Back Airflow
Compliant Standards : Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1ab (lldp)
Ram : 2 Gb
Expansion / Connectivity :
Interfaces :
24 X 1000base-t - Rj-45
2 X 10gbit Lan - Sfp+
1 X Serial (rs-232) - Rj-45 - Management
1 X Usb - Type A
2 X Gigabit Lan - Sfp
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 1 (installed) / 2 (max)
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Power Provided : 200 Watt
Condition : Brand New.
Availability : In Stock.
Warranty : 90 Days.
DELL GH9K5 Networking S3124 - Switch - 24 Ports - Managed - Rack-mountable.
Key Features :
Expansion / Connectivity :
Interfaces :
Power :
Condition : Brand New.
Availability : In Stock.
Warranty : 90 Days.
| Capacity | 24 PORT |
|---|---|
| Condition | Brand New |
| Manufacturer | DELL |
