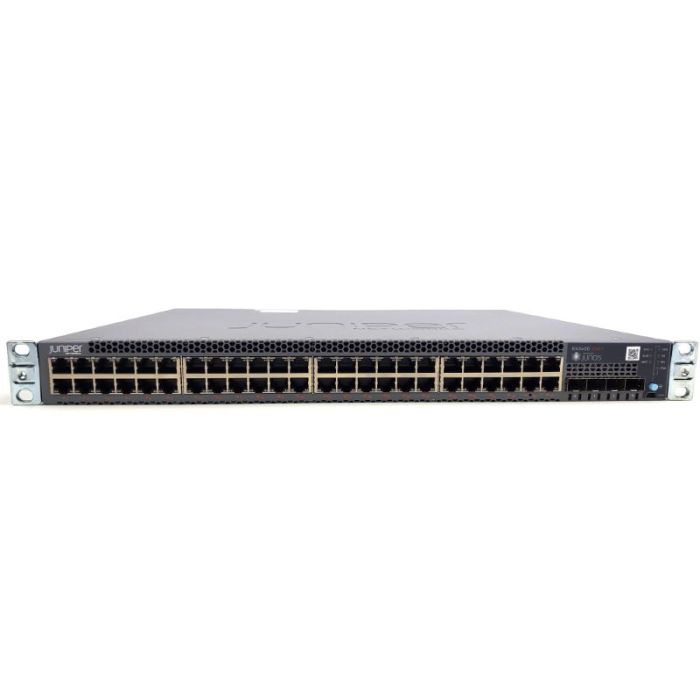

Juniper Networks EX3400-48P Switch 48 Ports Managed Rack-Mountable
Part Number:
EX3400-48P
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 48 Ports - L3 - Managed - Stackable
Enclosure Type : Front To Back Airflow Rack-mountable 1u
Subtype : gigabit Ethernet
Ports : 48 X 10/100/1000 (poe+) + 4 X Gigabit Sfp / 10 Gigabit Sfp+ + 2 X 40 Gigabit Qsfp+
Power Over Ethernet (poe) : Poe+
Poe Budget : 740 W
Performance : Switching Capacity (64-byte Packet Size): 336 Gbps Throughput: 250 Mpps
Capacity : Virtual Interfaces (vlans): 4093 Multiple Spanning Tree Protocol Instances: 64 Vlan Spanning Tree Protocol Instances: 510 Arp Entries: 8000 Ipv4 Hosts: 36000 Ipv4 Routes (multicast): 4000 Maximum Of Neighboring Networks: 8000 Ipv6 Hosts: 18000 Ipv6 Routes (multicast): 2000 Acl Entries: 1500 Lag Groups: 128 Maximum Member Ports Per Lag: 16 Qos Hardware Queues Per Port: 12 Igmp Snooping Entries: 1000
Mac Address Table Size : 32000 Entries
Jumbo Frame Support : 9216 Bytes
Amax Units In A Stack : 10
Routing Protocol: Is-is, Rip-1, Rip-2, Msdp, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Cidr
Remote Management Protocol: Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Https, Tftp, Ssh, Cli
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ad, Ansi/tia-1057, Ieee 802.1ag, Ieee 802.1ae, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3at, Ieee 802.1br
Processor: 1: 1 Ghz
Ram: 2 Gb
Flash Memory: 2 Gb
Expansion / Connectivity :
Interfaces :
48 X 1000base-t Rj-45 Poe+ - 30 W
2 X 40gbit Lan Qsfp+ Uplink/stacking
4 X 10gbit Lan Sfp+ Uplink/stacking
1 X Serial Management
1 X 100base-tx Rj-45 Management
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty: 1
Max Supported Qty: 2
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with Optional Power Supply)
Power Provided : 920 Watt
Voltage Required : Ac 120/230 V
Power Consumption Operational: 120 Watt
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
Juniper Networks EX3400-48P Ex Series- Switch - 48 Ports - Managed - Rack-mountable
General Information :
Expansion / Connectivity :
Interfaces :
Power :
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
| Capacity | 48 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | JUNIPER NETWORKS |
