PRODUCT OVERVIEW
GENERAL INFORMATION :
manufacturer : Delta Electronics
MANUFACTURER Part Number : STS16002SR00035
MANUFACTURER Website Address : WWW.DELTAELECTRONICS.COM
PRODUCT Name :

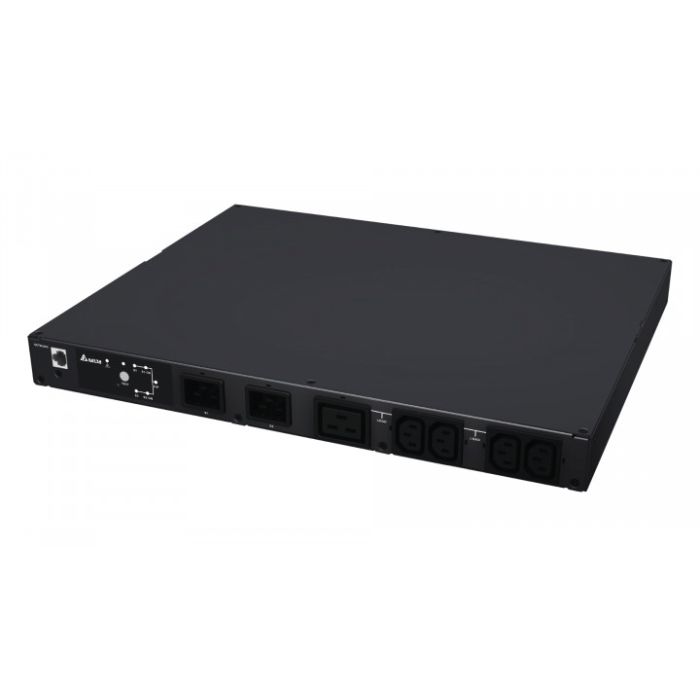

Delta Static Transfer Switch (Rack‑Mount STS 16A)
POWER / SWITCH DESCRIPTION :
STS Type : Static Transfer Switch (Automatic source transfer device)
Rated Current : 16 A
Nominal Voltage : 200 / 208 / 220 / 230 / 240 Vac
Typical Transfer Time : ~6–10 ms (automatic switching)
Note: Ye UPS supply nahi, balki power source switching device hai jo primary AC source se backup source par automatic transfer karta hai jab power fail ho.
INPUT SPECIFICATIONS :
Input Voltage : 200 / 208 / 220 / 230 / 240 Vac
Input Voltage Range : 180–264 Vac
Input Frequency : 50 Hz
Rated Input Current : 16 A
Input Connector : IEC 320 C20 × 2 pcs
OUTPUT SPECIFICATIONS :
Output Connector : IEC 320 C13 × 4, IEC 320 C19 × 1
Load Protection : Automatic switching between two sources to prevent interruption
BATTERY INFORMATION :
Battery : — (No internal battery — unit only switches AC sources)
Backup : Not applicable — STS switches AC sources automatically, doesn’t store energy.
EXPANSION / CONNECTIVITY :
Communication : Built‑in SNMP support for remote monitoring/control
Indicators : LED status indicators for power source and transfer status
INTERFACES & PORTS :
1 X RJ‑45 (SNMP / Network)
LED indicators for source status & power flow
DIMENSIONS & WEIGHT :
Dimensions (HxWxD) : ~43 × 440 × 385 mm
Weight : ~4.8–4.9 kg
ENVIRONMENTAL CONDITIONS :
Ambient Operating Temp. : 0–40 °C
Storage Temperature : –15–50 °C
Relative Humidity : 0–95 % non‑condensing
Audible Noise : < 40 dB @ 1 m
CONDITION : Brand New.
AVAILABILITY : In Stock (market dependent).
OUR WARRANTY : Typically 2–3 Years (seller dependent).
