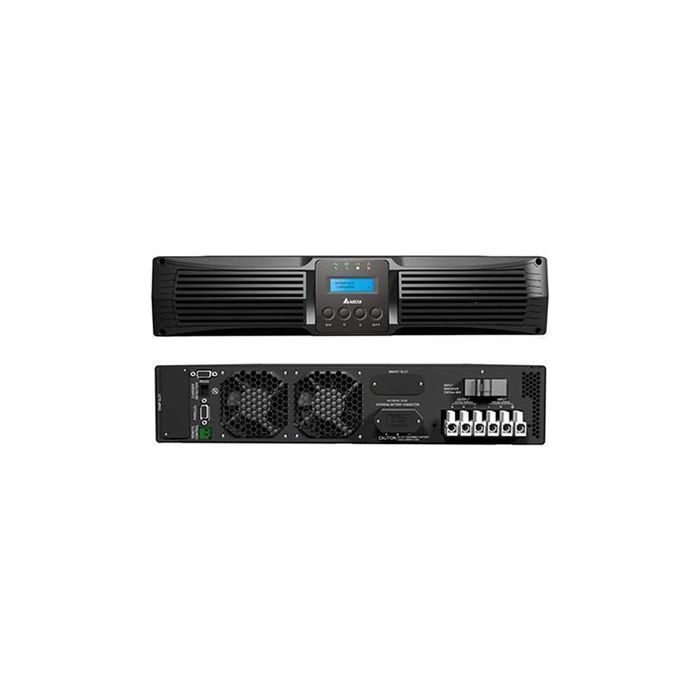

Delta Amplon RT Series Online UPS

PRODUCT OVERVIEW

GENERAL INFORMATION :
manufacturer : Delta Electronics
MANUFACTURER Part Number : UPS103R2RT2N035
MANUFACTURER Website Address : WWW.DELTAELECTRONICS.COM

PRODUCT Name :
Delta Amplon RT Series Online UPS

POWER DESCRIPTION :
UPS Type : Online, double-conversion
Rated Power : 10 kVA / 9 kW
Efficiency (AC-AC) : ~94 %
ECO Mode Efficiency : ~98 %

INPUT SPECIFICATIONS :
Input Voltage (Nominal) : 200 / 208 / 220 / 230 / 240 Vac
Input Voltage Range : 175–280 Vac (100% load); 120–175 Vac (70–100% load)
Input Frequency Range : 40–70 Hz
Input Power Factor : > 0.99 (full load)

OUTPUT SPECIFICATIONS :
Output Voltage : 200 / 208 / 220 / 230 / 240 Vac
Output Voltage Regulation : ± 1 % (linear load)
Output Frequency : 50/60 Hz ± 0.05 Hz
Output Power Factor : 0.9
Output Voltage THD : < 2 % (linear load)
Overload Capability : < 105 % continuous; 105–125 % (1 min); 125–150 % (15 s)

BATTERY INFORMATION :
Battery Voltage : 240 V DC
Battery Configuration : Internal – 20 × 12 V / 9 Ah
Typical Backup Time : ~3–4 min @ 75 % load (internal battery)
Recharge Time : ~4 h to 90 %
Charge Current : ~6 A
External Battery Support : Yes

EXPANSION / CONNECTIVITY :
Receptacles : IEC C13 × 8, IEC C19 × 2

INTERFACES & PORTS :
1 X Smart Slot
1 X Rs-232
1 X Usb
1 X REPO
LCD + LED Indicators

DIMENSIONS & WEIGHT :
Dimensions (WxDxH) : ~440 × 660 × 177 mm
weight : ~75–80 kg

ENVIRONMENTAL CONDITIONS :
Ambient Operating Temp. : 0–50 °C (derating above ~40 °C)
Relative Humidity : 5–95 % non-condensing

CONDITION : Brand New.
AVAILABILITY : In Stock.
OUR WARRANTY : 1 Year.
